Accent architectural features, creating depth and dimension

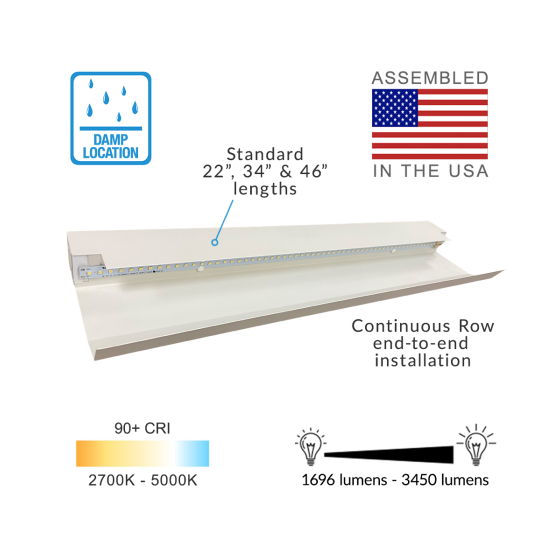

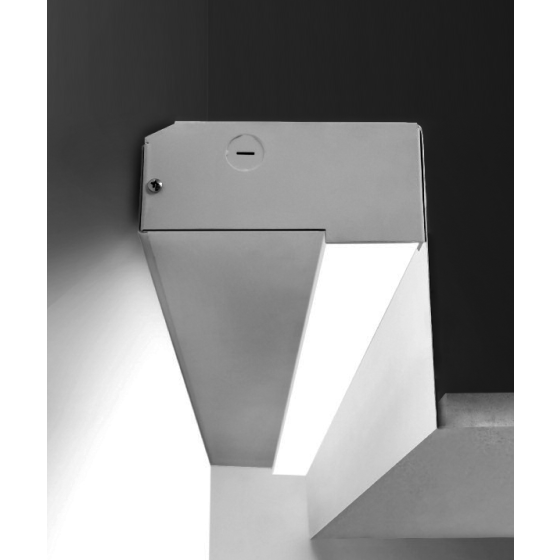

Surface-Mounted Linear Knife Edge Cove LED Light
Get more evenly distributed lighting with this knife-edged LED architectural-grade product. Our sharp-edged extrusion attaches to heavy gauge steel wall brackets or a special extension, affording on-board driver installation and 1/2” or 5/8” thick drywall
Creating Atmosphere with Architectural Cove Lighting
Cove lighting provides a sense of depth and dimension in commercial spaces. The soft, diffused light creates a more inviting and comfortable
atmosphere. Cove lights highlight architectural features, such as columns, beams and moldings, while adding ambient light to enhance the visual appeal of a space.

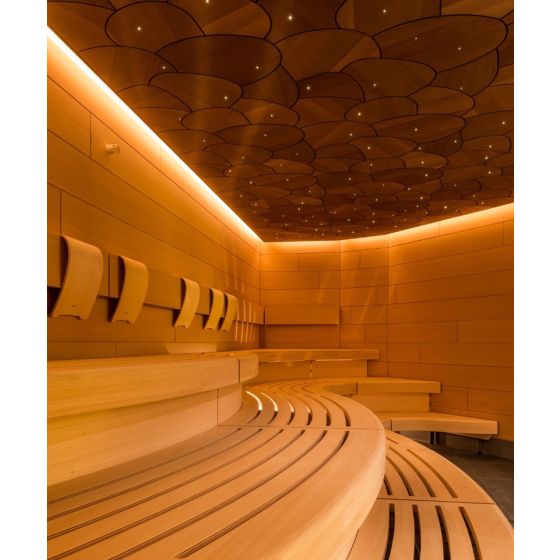

High-performance LED cove lights are perfect for accent lighting

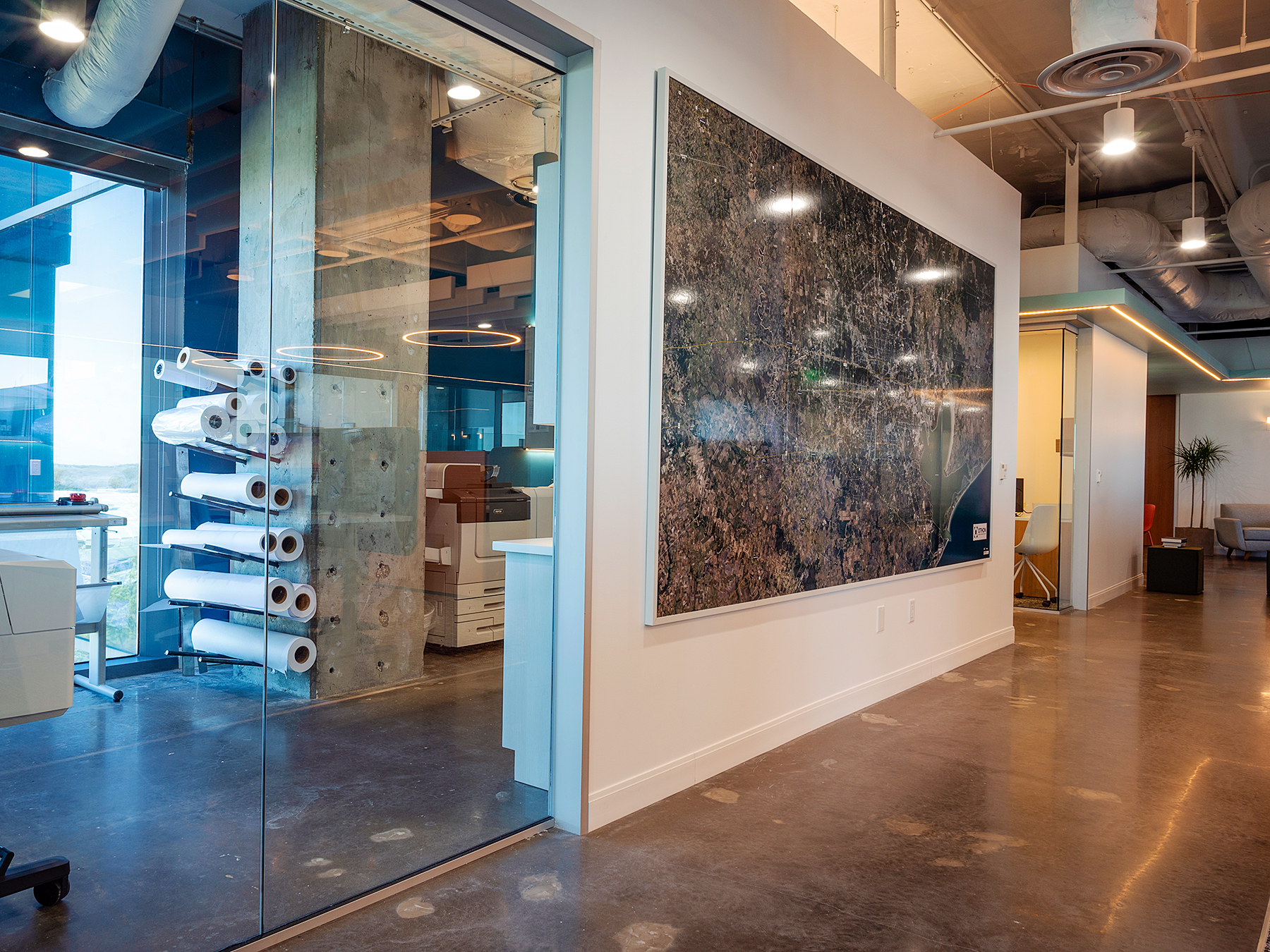

Perimeter cove lighting affords occupants increased safety and security
Wall-wash lighting adds layers to architectural lighting design plans

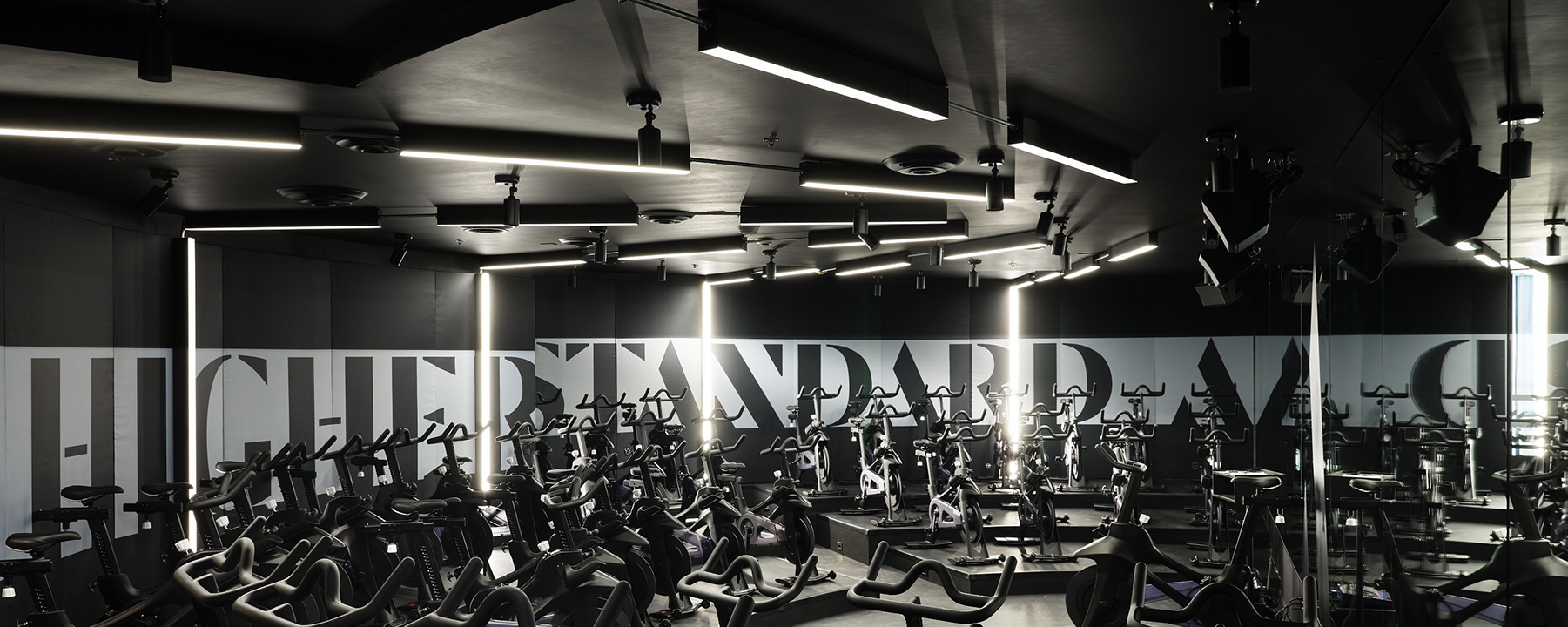

LED cove lighting is a versatile and stylish solution to create a variety of effects in a variety of spaces, including restaurants, retailers, health spas, fitness centers, classrooms and offices.
Alcon 12201-P Round LED Pendant Light
This round commercial-grade pendant is die-formed in 20-gauge spun steel. An architectural Light-Emitting Diode (LED) fixture with added durability featuring Bluetooth and wireless Mesh technology and a vandal-resistant design
The type of fixture used in cove lighting are variations of LED strip lighting which can be
found in our linear recessed or linear surface lighting categories.
Cove lights may be recessed or mounted on a surface depending on the depth of the soffit. A general contractor can facilitate the collaboration between a framer and drywall installer to create a cove or floating ceiling where cove lights can then be installed. Hire a professional electrician to ensure fixtures are installed correctly and safely.
It may also be beneficial to consult the electrician prior to ordering lights to ensure you have the correct specifications.
The correct Correlated Color Temperature (CCT) for cove lights will depend on the function of the space and atmosphere you wish to create. Warm white lights (2700K to 3000K) are traditionally used in residential and hospitality spaces. . Cool white (3500K to 5000K) are used in commercial spaces, such as offices, lobbies and salons. RGBW also allows the use of an array of colors, in addition to warm and cool white.
The difference between wall wash lighting and wall grazer lighting is the distance of the lights from the wall and the effect it creates. Wall wash lighting is created by mounting lights on the ceiling so that the beam of light falls on the wall at a wide angle. The result is a uniform, even wash of light across the wall. By contrast, wall grazer lighting is created by mounting lights closer to the wall, so that the beam of light skims the surface of the wall. This results in a more dramatic effect, highlighting the texture and depth of the wall.
There are four mounting options for cove lighting:

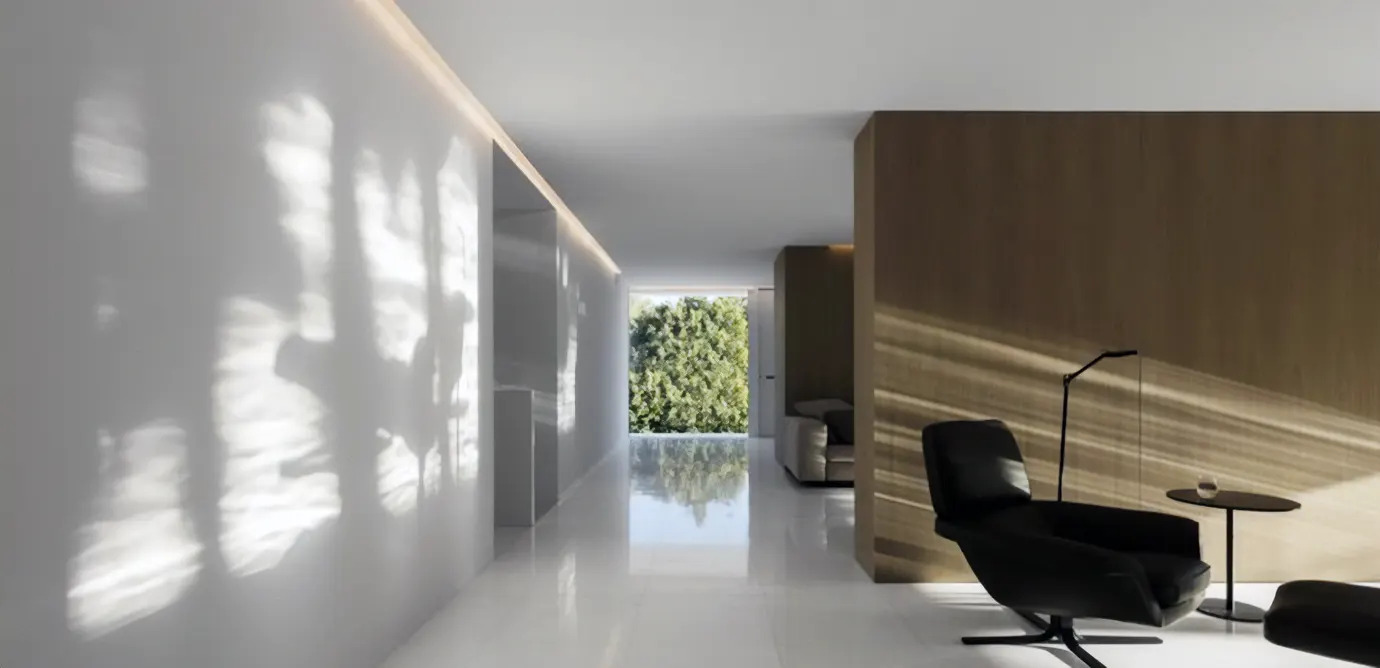

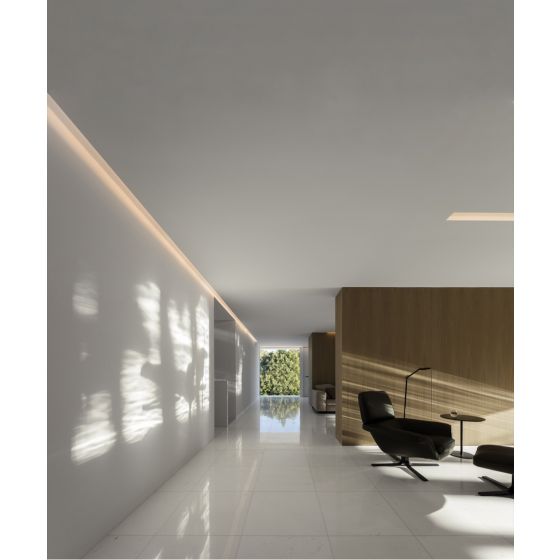

Wall wash lighting is mounted on the ceiling near where the ceiling and wall meet
to provide a even wash of light along the wall.

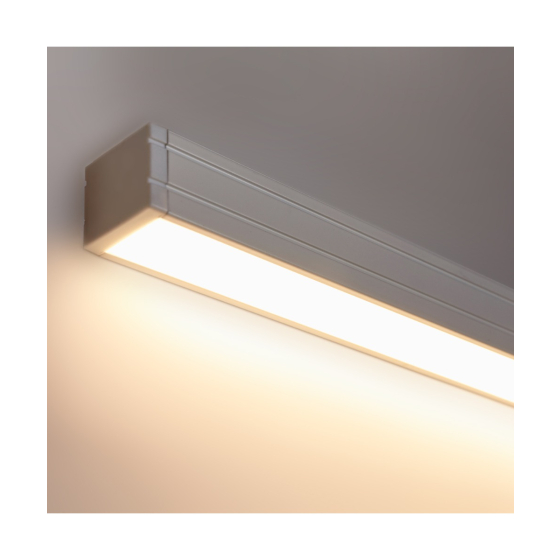

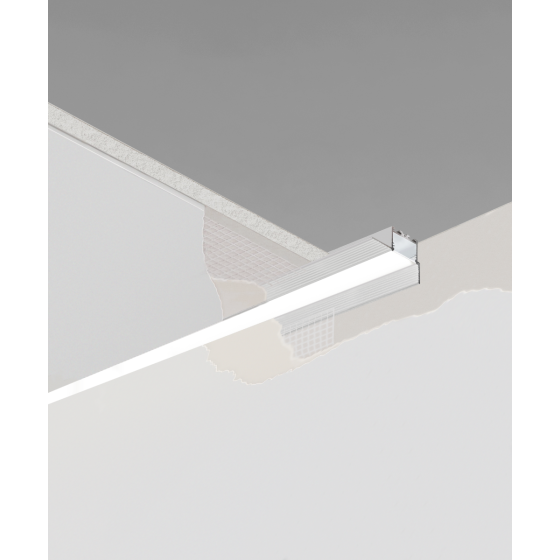

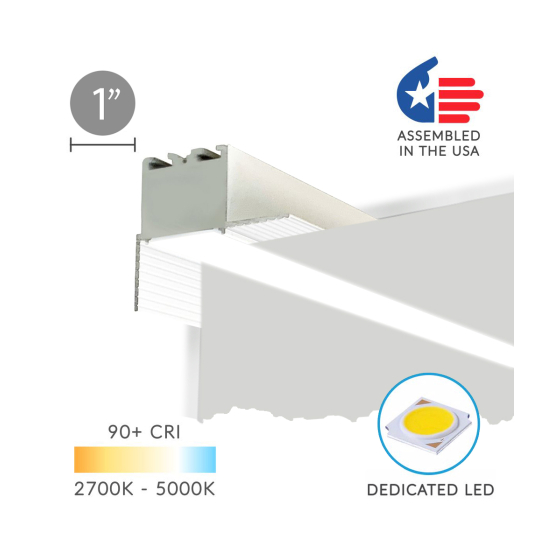

Alcon Lighting’s 4-Inch Perimeter Recessed Cove Light is an example of a wall wash cove fixture.

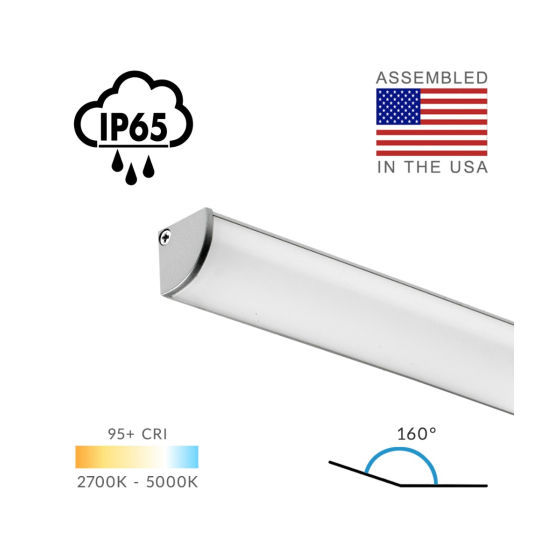

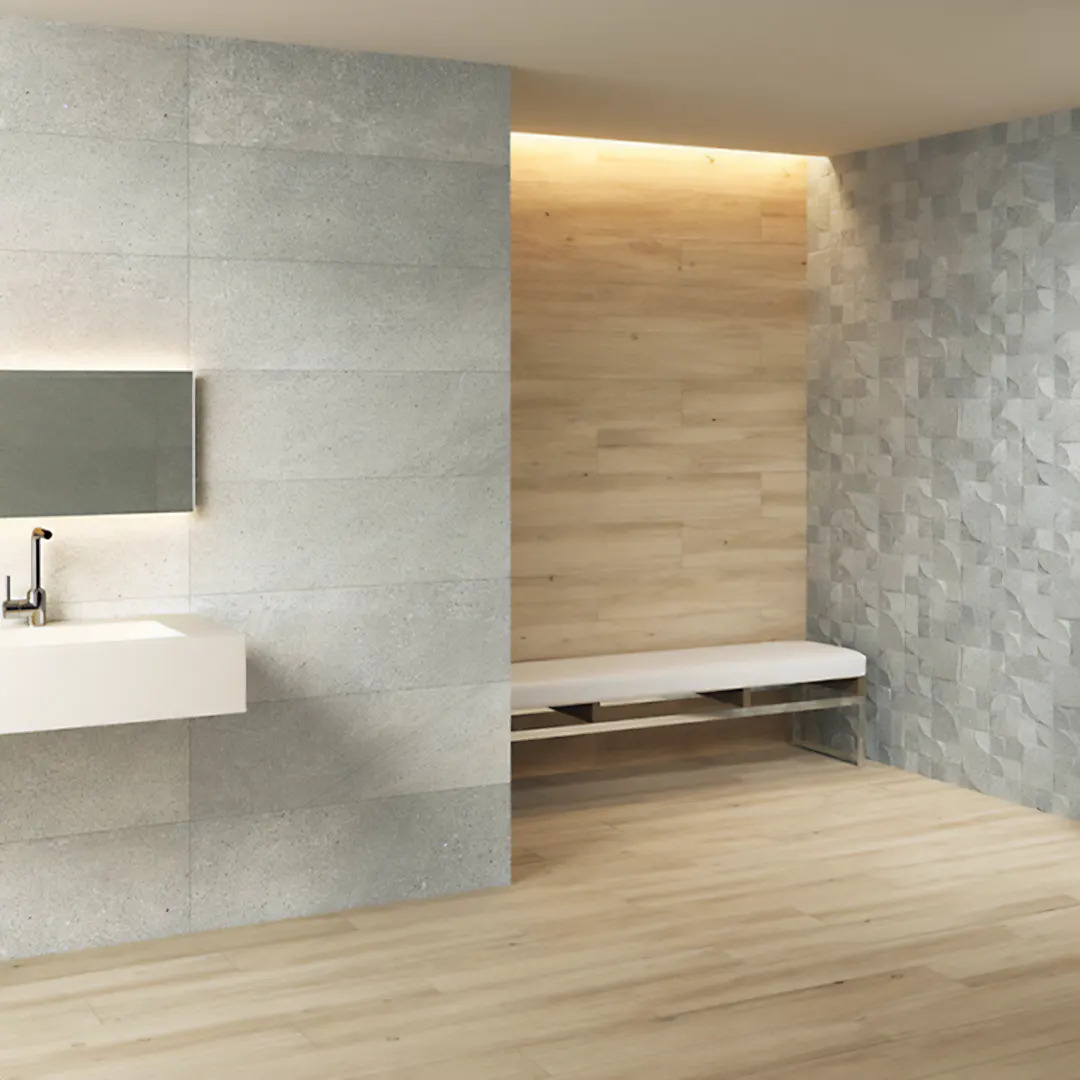

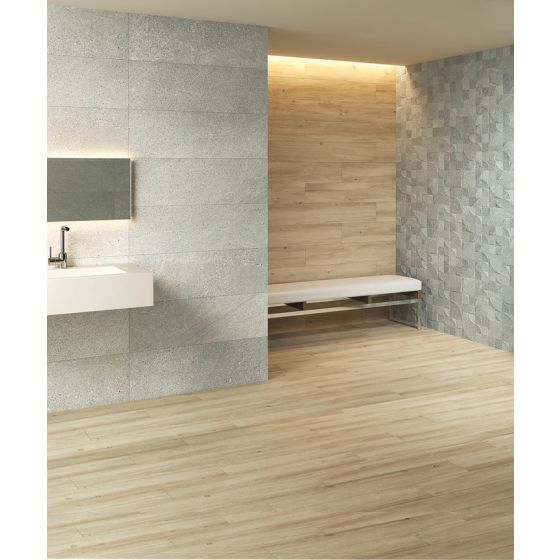

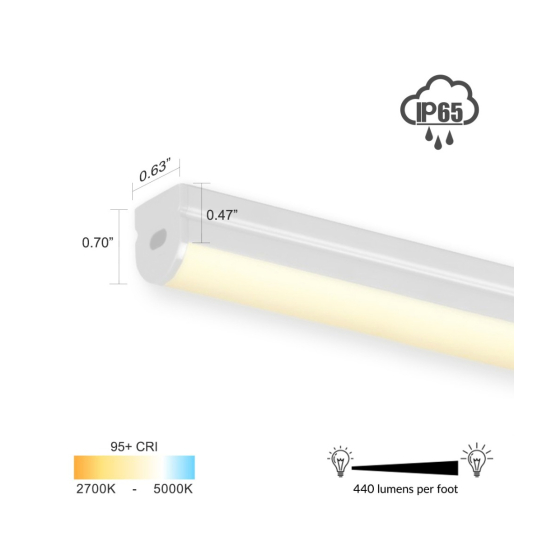

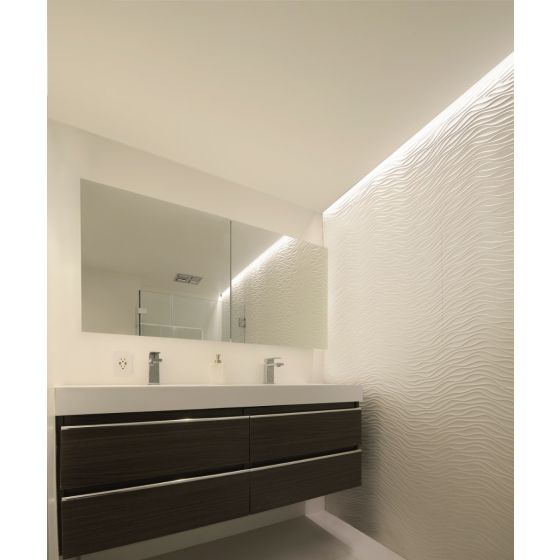

Wall grazer lighting is mounted on the ceiling closer to the wall, accenting special materials or textures
on the wall for a more dramatic effect, as seen with Alcon Lighting’s Wall Grazer Linear LED Light.

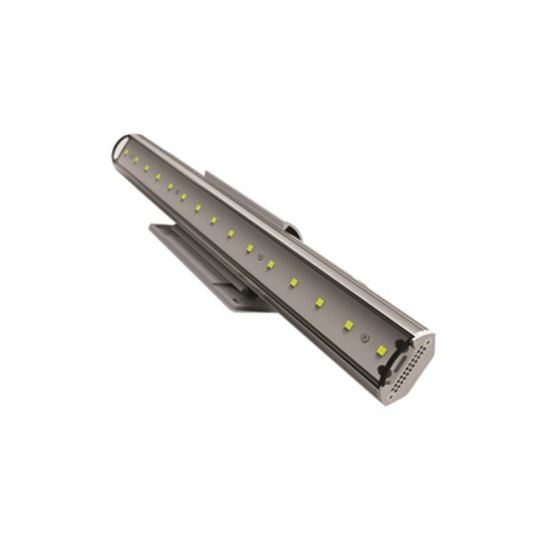

Cove light bars afford indirect uplighting.

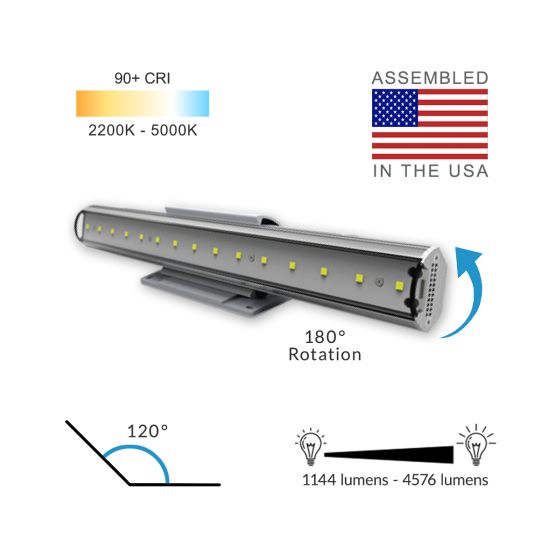

An LED Cove Light Bar is mounted inside a cove architectural feature, hiding the fixture while highlighting architectural features.

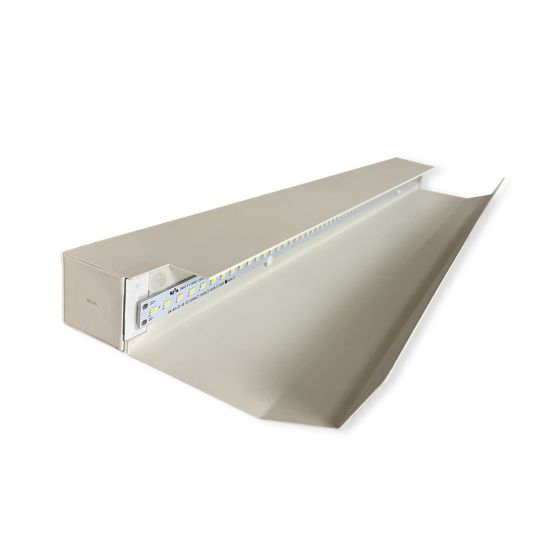

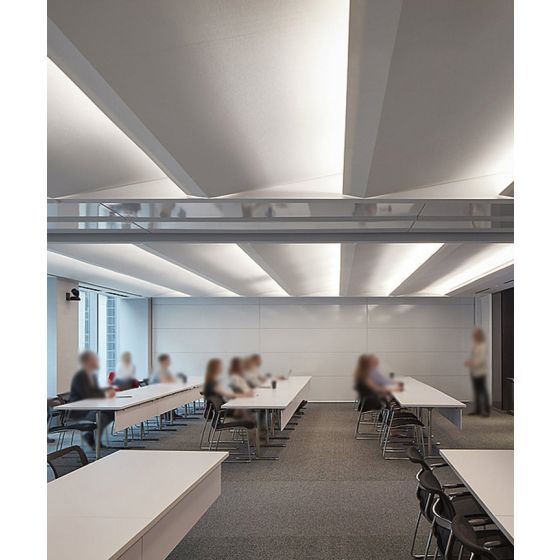

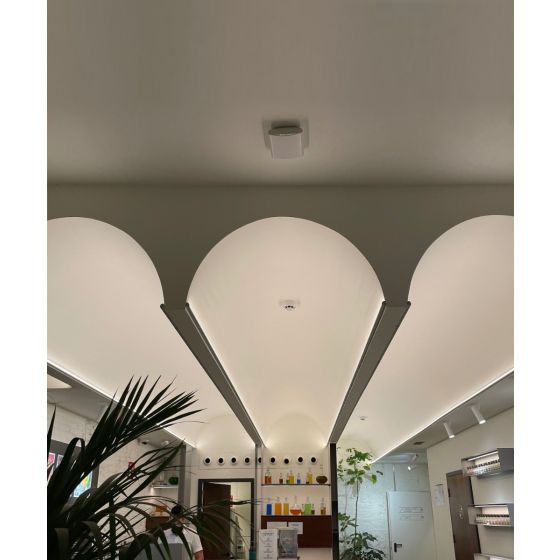

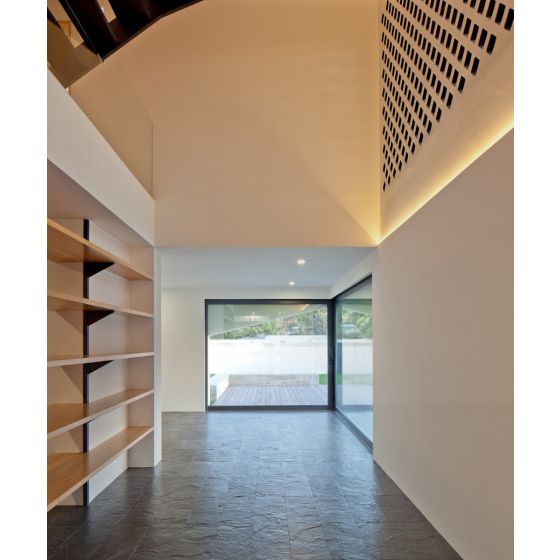

Knife-edge cove lights are used with floating ceilings. A Knife-Edge Cove LED Light is mounted on the upper surface of a
floating ceiling, directing light up at the ceiling then reflecting down.
The amount of lumens needed for cove lighting will depend on the size of the room and other lights used in the space.
You can use Alcon Lighting’s lumens calculator to determine the total lumens needed for a space,
based on room type, size, wall color and light placement.
LED cove lights offer energy-efficiency and exceptional performance, while adding layers, depth and dimension to a space. The discreet placement of lights along architectural details conceals the light source while highlighting features of the surrounding space, accentuating textures and enhancing overall aesthetic appeal.
If you have questions or would like a layout assistance, call us to speak with an Alcon Lighting Sales Consultant.
Alcon 15240 Deep Dome Architectural LED High Bay
The specification grade Alcon Lighting 15240 Architectural Led Round Barn Light High Bay Direct Down Light Fixture is the ideal solution for warehouse, gymnasium, or other mid to high-ceiling applications where high output LED lighting is desired.
