Model 12100-22-W-L

2-Inch Louver LED Linear Wall Light

By Alcon Lighting
$249.95

Built to order

, ships in: 3-7 business days
Oversized Product Spec Grade UL Damp Location Color Temperature Selectable Switch Wattage Selectable Switch Emergency Backup Battery
loader
Loading...

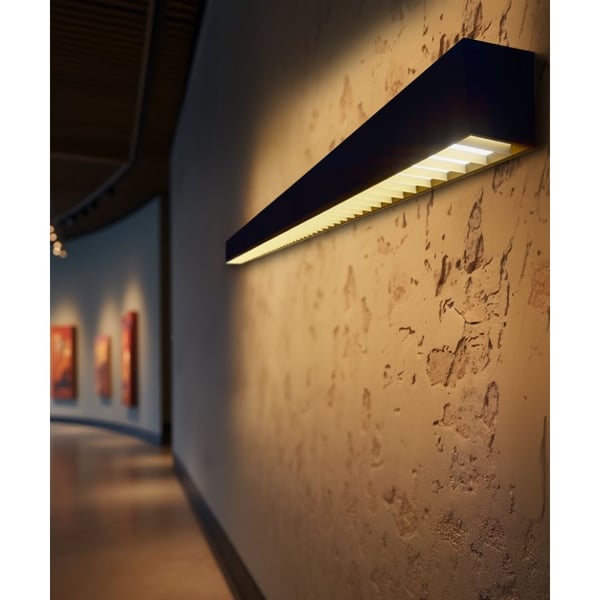

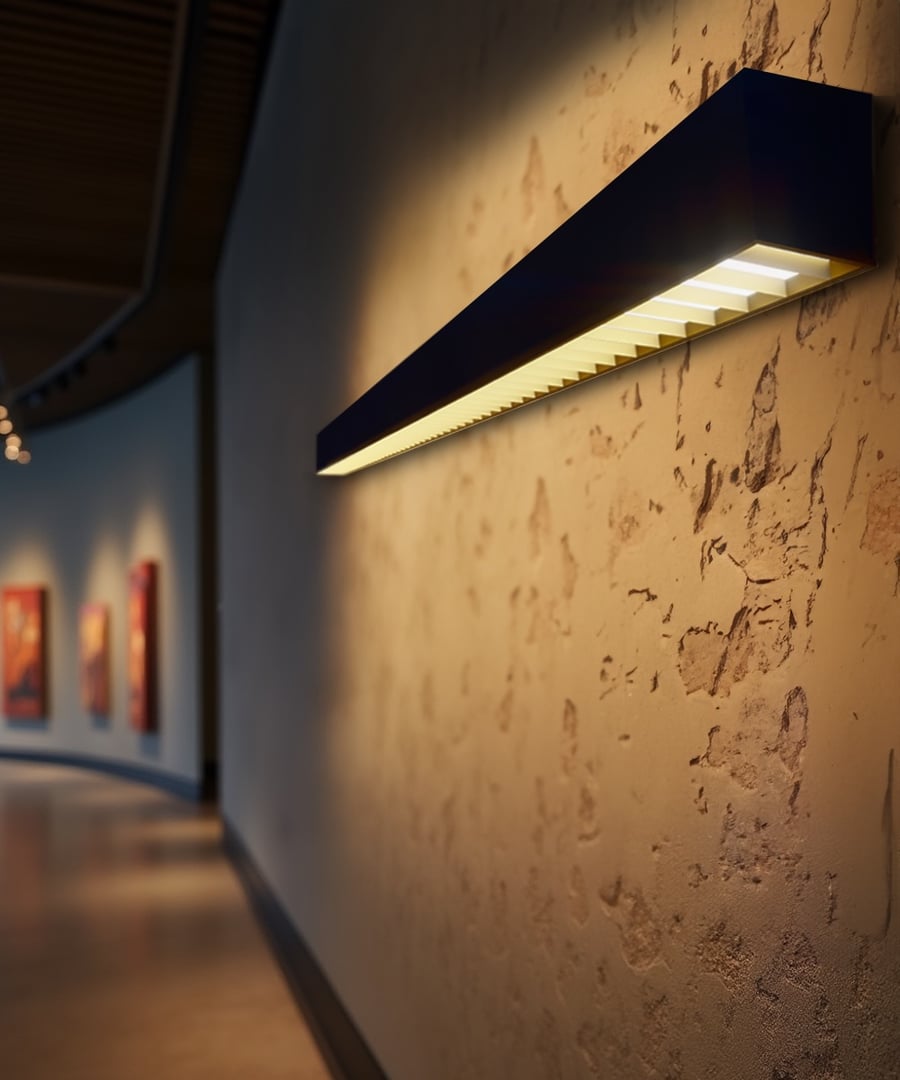

This linear LED wall light combines an extruded aluminum housing with a durable powder coat finish to fit various design schemes. The modern, streamlined profile supports tandem mounting for continuous runs up to 40 feet at 120V or 100 feet at 277V. Equipped with a louvered lens to reduce glare, the LED light offers precise light control with adjustable wattage (5W/7.5W/10W) and color temperature (30/35/40K) selection, along with a 7-position DIP switch for directional lighting. Featuring 0-10V dimming to 10% and optional emergency backup, this wall light is perfect for commercial and hospitality environments.
  • Manufacturer
    Alcon Lighting
  • Model
    12100-22-W-L
  • Lead Time
    Ships in: 3-7 Business Days
  • Return Policy
    Built to order. Restocking fees apply.
  • Qualifications
    Spec Grade, UL, Damp Location
  • Features
    Color Temperature Selectable Switch, Wattage Selectable Switch, Light Direction Selectable Switch, Emergency Backup Battery
  • Dimming
    0-10V
  • Wattage
    10W/7.5W/5W per foot
  • Voltage
    120-277V
  • Finish
    White, Black
  • CCT
    3000K, 3500K, 4000K
  • CRI
    80+
  • Mounting
    Wall
  • Light Direction
    Direct/Indirect
  • Shape
    Linear
  • Beam Spread
    110°
  • Lumens per ft
    350 lm/ft, 525 lm/ft, 700 lm/ft
  • Wattage per ft
    10 W/ft, 5 W/ft, 7.5 W/ft
  • Length
    2 ft., 3 ft., 4 ft., 6 ft., 8 ft.
