3.75-Inch LED Linear Wall Light
by Alcon Lighting
Model 12100-33-W
$299.95
Built to order
Loading...
Details
Description

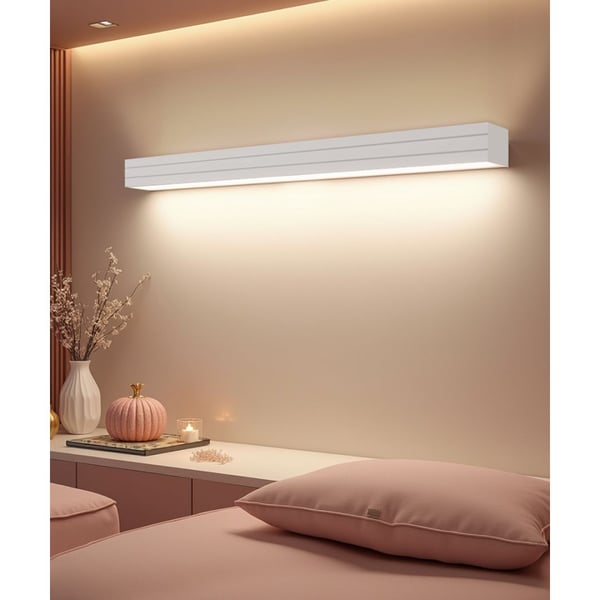

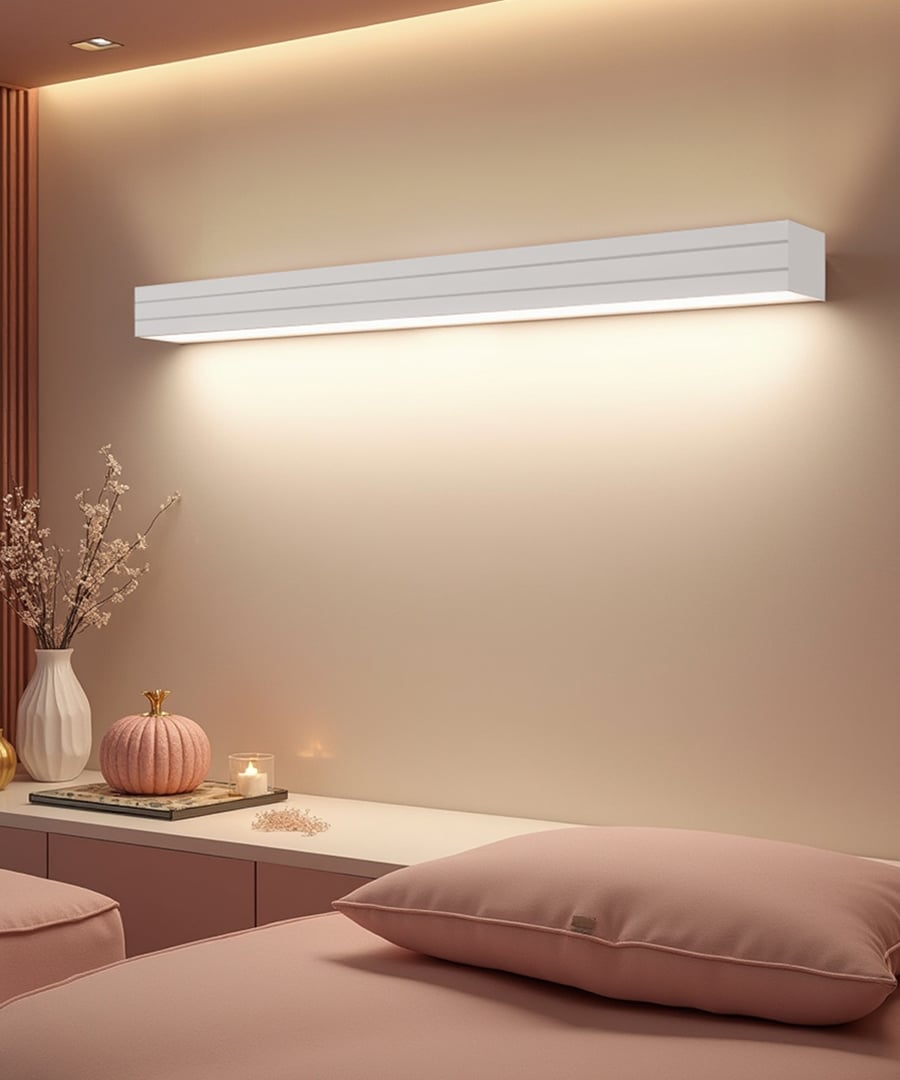

Our linear wall light features an extruded aluminum housing with a powder coat finish and a 3.75-inch frosted lens for soft, even lighting distribution. The wall light supports continuous runs up to 40 feet for 120V and 100 feet for 277V and includes a 7-position DIP switch for directional light control. With selectable wattages of 5, 7.5 and 10 watts, this product delivers 550 to 1,100 lumens in full downlight mode or 600 to 1,200 lumens in 50/50% uplight and downlight mode. The fixture offers CCT adjustable settings of 3000K, 3500K, and 4000K and supports 0-10V dimming down to 10%. The fixture is damp location rated and offers emergency backup for reliability.
Manufacturer
Alcon Lighting
Model
12100-33-W
Lead Time
Ships in: 3-7 Business Days
Return Policy
Assembled to Order. A 50% Restocking Fee May Apply.
Qualifications
Spec Grade, UL, Damp Location
Features
Color Temperature Selectable Switch, Wattage Selectable Switch, Light Direction Selectable Switch, Emergency Backup Battery
Dimming
0-10V
Lumens per foot
100 - 599 Lumens, 600 - 1199 Lumens, 1200 - 2199 Lumens
Wattage
10 Watts, 5 Watts, 7.5 Watts
Wattage
10W/7.5W/5W per foot
Voltage
120-277V
Finish
White, Black
Light Color
3000K, 3500K, 4000K
CRI
80+
Mounting
Wall
Light Direction
Direct/Indirect
Height
3.75"
Length
2 feet, 3 feet, 4 feet, 6 feet, 8 feet
Beam Spread
110°
Length
2 ft., 3 ft., 4 ft., 6 ft., 8 ft.
