$339.95
SKU
12100-22-P

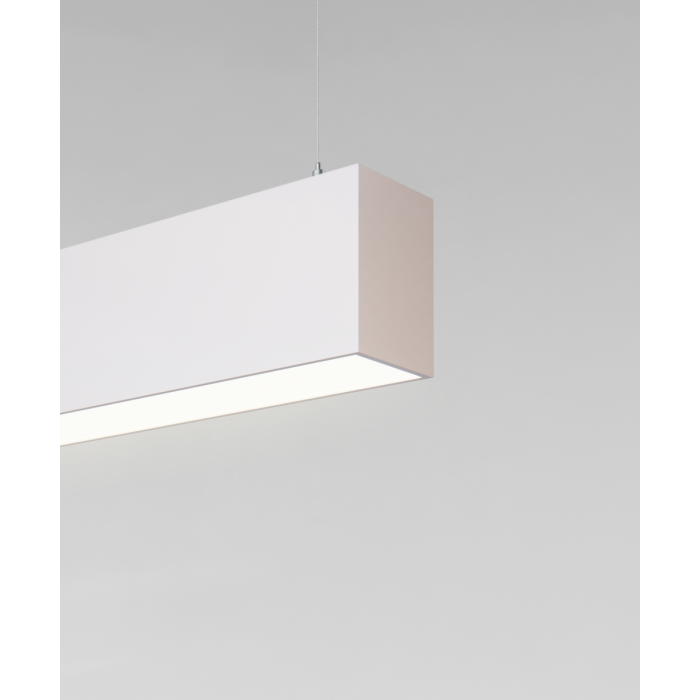

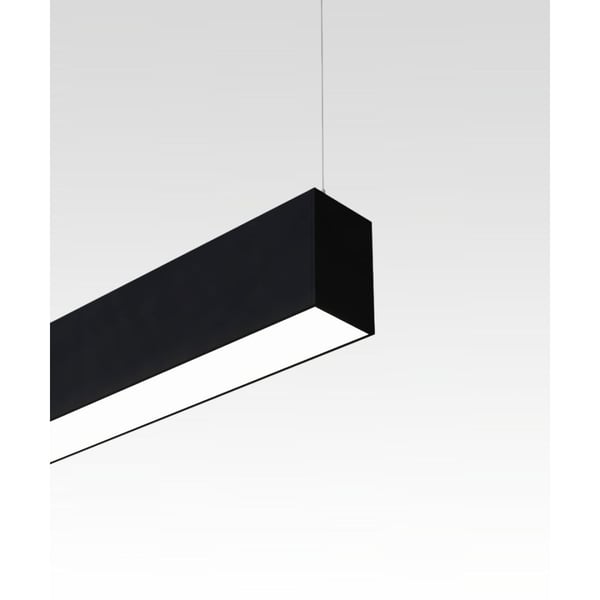

Alcon Lighting 12100-22-P Continuum 22 Series Architectural LED Linear Pendant Direct Light Fixture
$339.95
SKU
12100-22-P
In Stock Assembly Required
Lead Time
QuickShip
NOTE: We cannot guarantee lead times for built to order products. Occasional backorder of components (i.e., LED drivers, diodes and/or other electrical components) may lead to assembly delays. Be assured, Alcon Lighting is 100 percent committed to meeting and/or exceeding lead time estimates.
Downloads
Other Products You Might Like
Accessories
Product information
Details

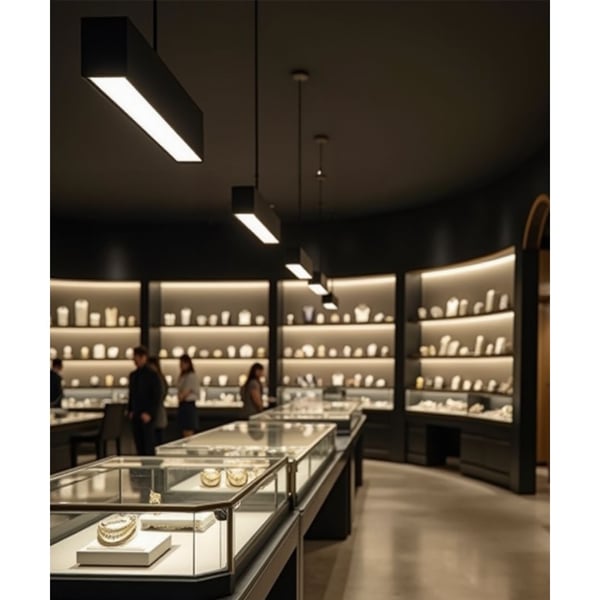

The specification grade Continuum 22 Architectural Direct LED Linear Pendant Lighting delivers continuous clean lines and clear light to commercial, hospitality and residential interior lighting applications. Our modern, slim profiles and stylish linear chandelier designs offer excellent direct lighting, exceptional performance and versatility in offices, classrooms, conference rooms, museums, retail outlets, hotels, restaurants, and more. The Continuum integrated LED linear pendant lighting is available in standard lengths of 4’ and 8’, and can be joined together in seamless runs of any length.
FEATURES
Construction: Die-Formed and Welded 22-Gauge Cold Rolled Steel
Continuous Row: Full Ability to Tandem Mount for Continuous Run Application Equipped with Male & Female Quick Connect Harnesses
Mounting: 6' Adjustable Aircraft Cable
Finish: Silver
Lens: Glare Free Snap In Frosted Acrylic for Even Distribution
Voltage: 120-277V
Wattage: 30 Watts Per 4 Foot Section
Lumens: 3000 Lumens Per 4 Foot Section
Dimming: 5-Wire 0-10V (100%-10%)
CRI: 80+
Life: 50,000 Hours L70
Warranty: 5 Years Carefree for Parts & Components (Labor Not Included)
Listings: CA Title 24 Compliant, cETL Listed, LED Chips Tested to LM-80 Standards
Formerly 12169-4 Beam 22
More Information
| Manufacturer | Alcon Lighting |
|---|---|
| SKU | 12100-22-P |
| Return Policy | Assembled to Order. A 50% Restocking Fee May Apply. |
| Technology | LED |
| Regulations | cETL Listed , Assembled in the USA |
| Voltage | 120-277V |
| Color Temperature | 3000K Warm White, 4000K Cool White |
| Lens Opacity | Frosted |
| Features | 0-10V Dimming |
| Mount Type | Pendant |
| Product Type | Direct Downlight, Direct/Indirect |

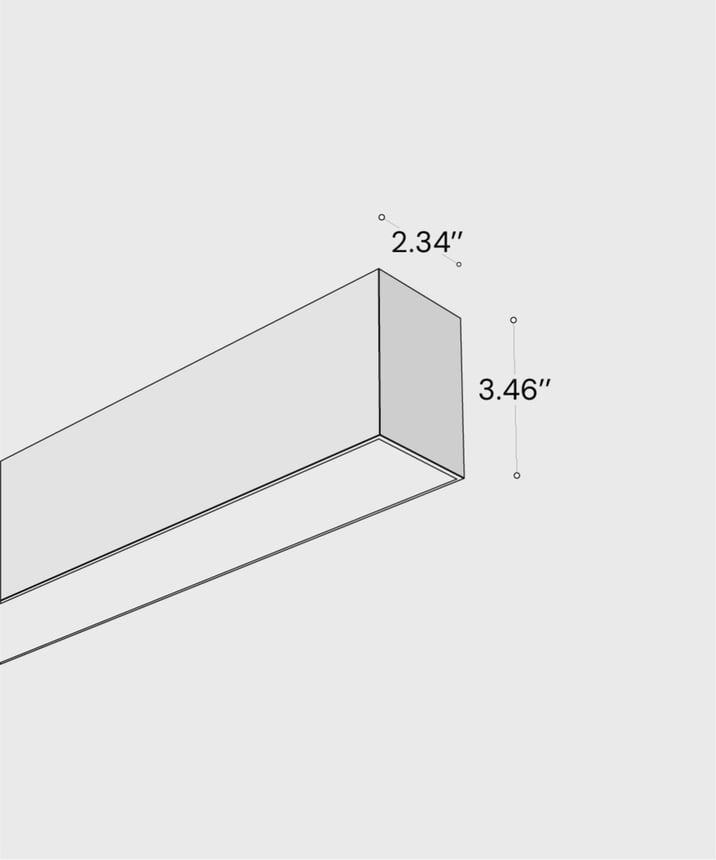

| Width | 2.2" | 3.5" |
| Length | 48" |
| Lumen Output | 2200 - 3499 Lumens, 3500 - 4999 Lumens |
| Lumen Output Minimum | 3000 Lumens |
| Lumen Output Max | 4500 Lumens |
| Wattage | 18W | 27W | 30W |
| Beam Spread | 120° |
