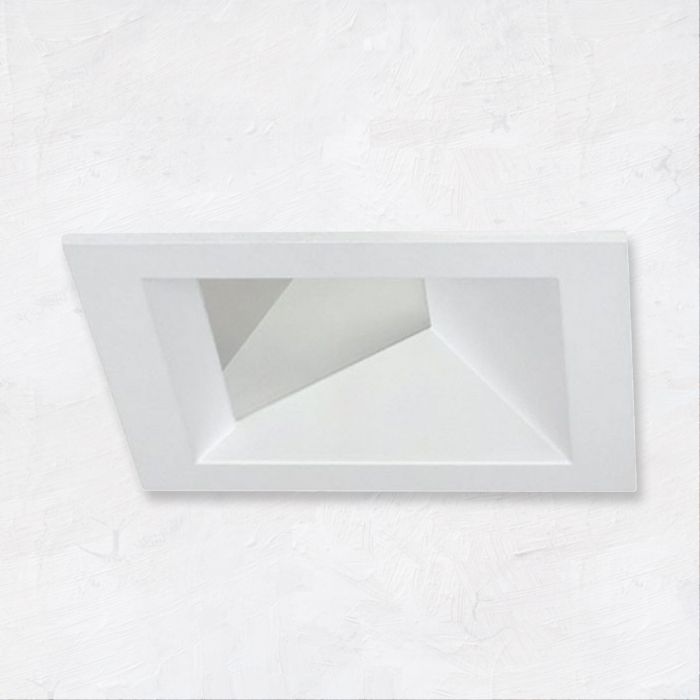

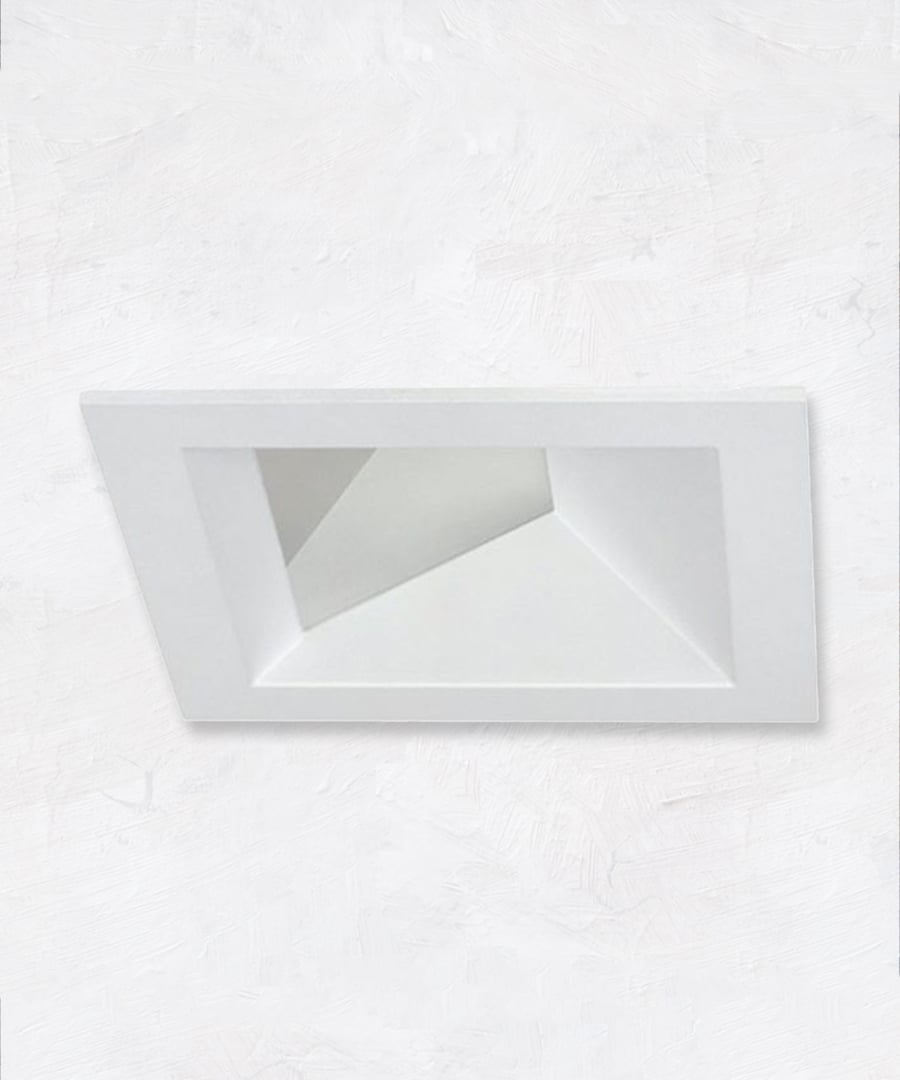

3-Inch Square Architectural Lensed LED Wall Wash Recessed Light

by Alcon Lighting Model 14031-3
Assembled in USA ARRA Title 24 Title 24-JA8 CETL listed
$395.95

Built to order

Ships in: 1-2 weeks

Customize

loader
Loading...

Details

Description

The square recessed LED lensed wall wash light, made for new construction installation, features an IC-rated, energy-efficient LED housing designed for direct insulation contact and offers an airtight option that restricts airflow to plenums. The recessed light includes a collar bracket with 90° rotation in 5° increments and 24-inch adjustable hanger bars with 90° repositioning. The lamp holder assembly offers a 35° tilt and 1.5-inch vertical adjustment. An electronic direct current LED driver is integrally mounted in the junction box and comes standard with non-dimming. Enhance performance in commercial and high-end residential applications with optional 120/277V universal dimming, 90+ CRI and emergency battery backup.
Manufacturer
Alcon Lighting
Model
14031-3
Lead Time
Ships in: 1-2 weeks
Return Policy
Assembled to Order. A 50% Restocking Fee May Apply.
Qualifications
Assembled in USA ARRA, Title 24 , LM79 Tested, Title 24-JA8, CETL listed
Wattage
12 Watts, 19 Watts
Voltage
120-277V
Light Color
2700K, 3000K, 3500K, 4000K
CRI
80 is standard. 90 is an available option.
Driver
Non-dimming is standard. Universal and 0-10V dimming drivers available for an additional charge.
Configuration
Complete Kit
Width
3 inch
Mounting
Trimmed
Lumen Output Minimum
600 Lumens
Lumen Output Max
1200 Lumens
Beam Spread
25° Spot, 45°, 60° Wide Flood
