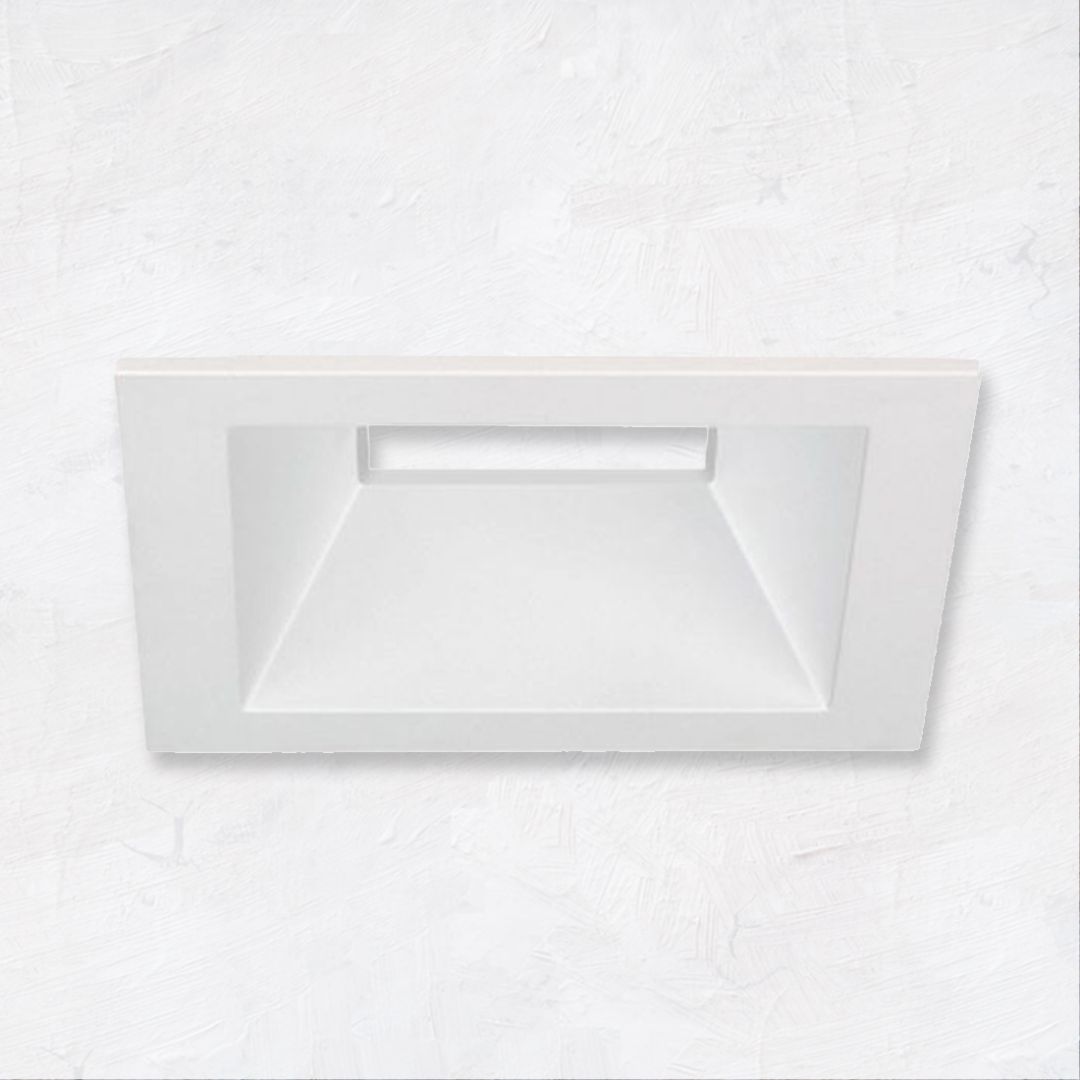

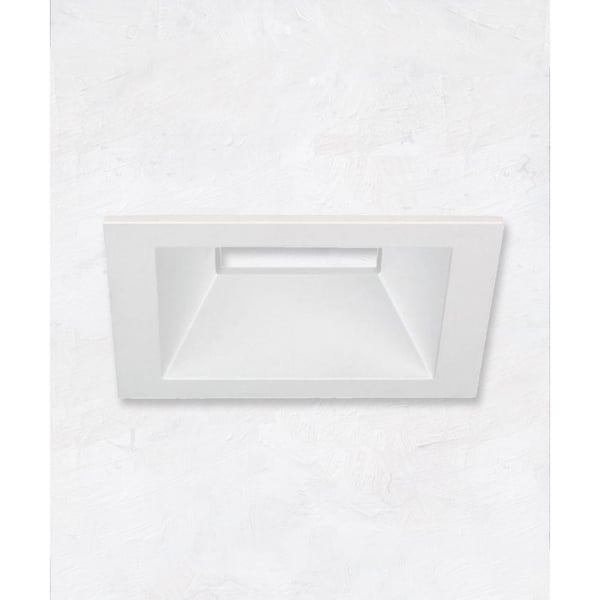

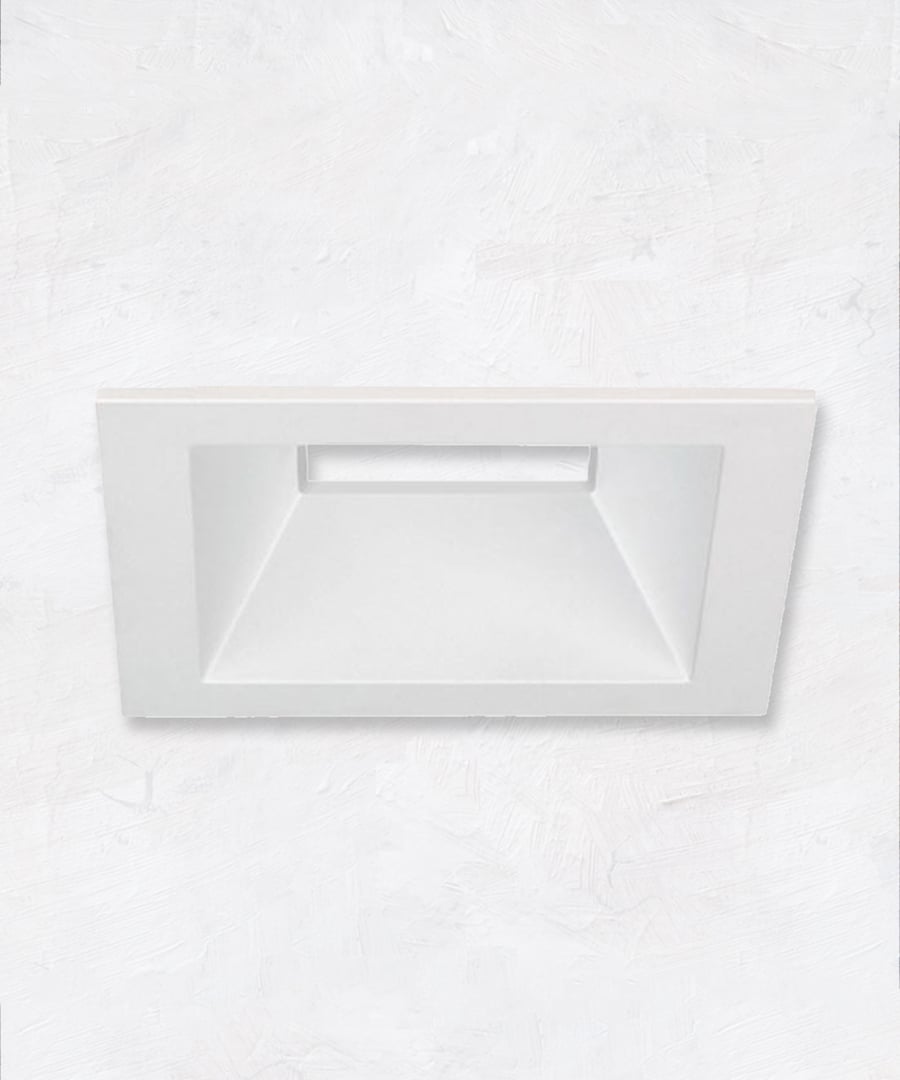

3-Inch Square Architectural Open Reflector LED Recessed Downlight

by Alcon Lighting Model 14031-2
Assembled in USA ARRA Title 24 Title 24-JA8 CETL listed
$395.95

Built to order

Ships in: 3-7 Business Days

Customize

loader
Loading...

Details

Description

Designed for new construction installation, the square recessed LED downlight boasts an IC-rated, energy-efficient LED housing suitable for direct insulation contact. Use the 24-inch adjustable hangar bars and collar bracket with 90° rotation in 5° increments for accurate positioning before drywall or ceiling panel installation. The lamp holder assembly allows a 35° tilt and 1.5-inch vertical adjustment. An integrally mounted electronic direct current LED driver in the junction box ensures efficiency, equipped with standard non-dimming. Add 120/277V universal dimming, 90+ CRI and emergency backup for enhanced performance.
Manufacturer
Alcon Lighting
Model
14031-2
Lead Time
Ships in: 3-7 Business Days
Return Policy
Assembled to Order. A 50% Restocking Fee May Apply.
Qualifications
Assembled in USA ARRA, Title 24 , LM79 Tested, Title 24-JA8, CETL listed
Wattage
12 Watts, 19 Watts
Voltage
120-277V
Finish
White
Light Color
2700K, 3000K, 3500K, 4000K
CRI
80+, 90+
Driver
Non-dimming is standard. Universal and 0-10V dimming drivers available for an additional charge.
Configuration
Complete Kit
Width
3 inch
Mounting
Trimmed
Lumen Output Minimum
600 Lumens
Lumen Output Max
1200 Lumens
Beam Spread
25° Spot, 45°, 60° Wide Flood
