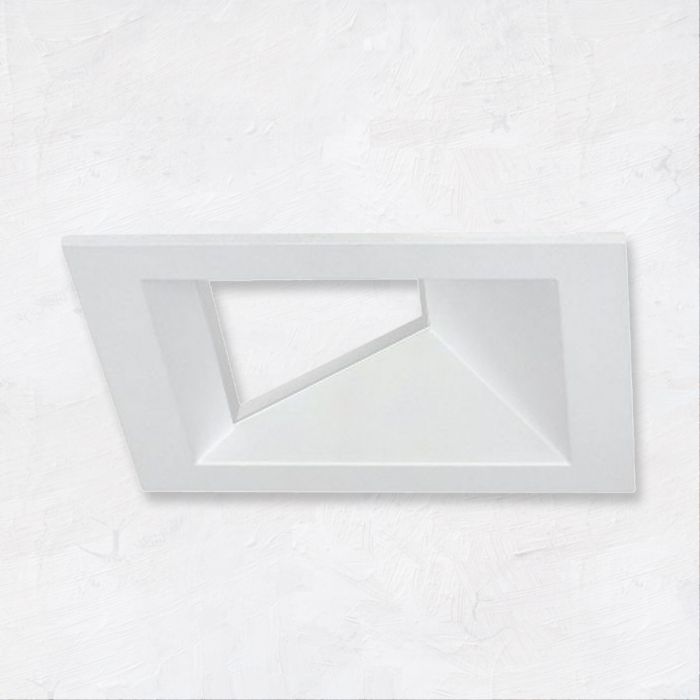

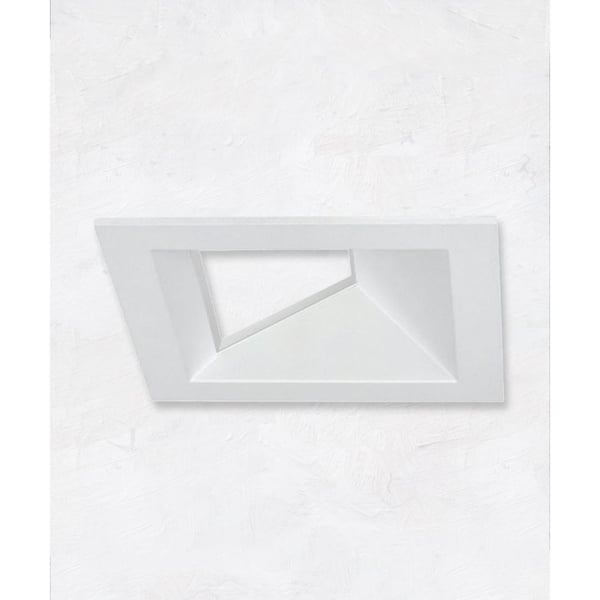

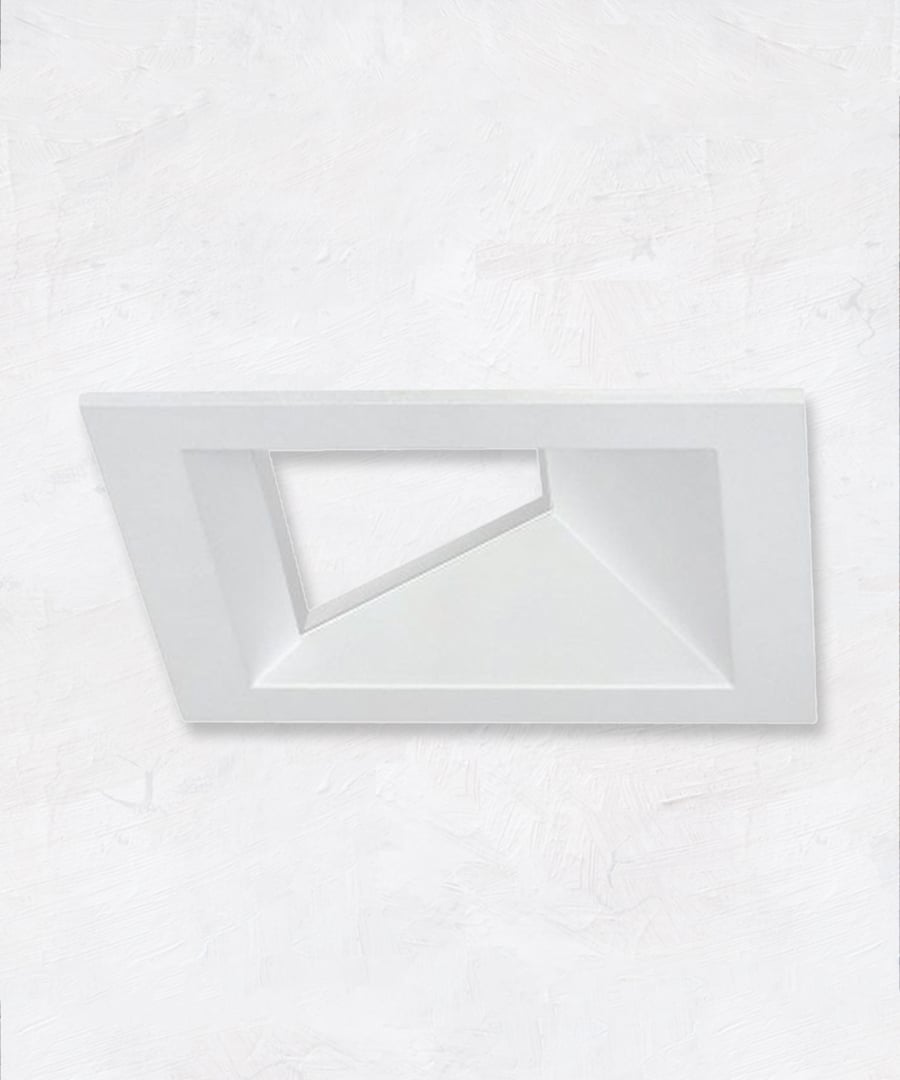

3-Inch Square Architectural Open Reflector LED Wall Wash Recessed Light
by Alcon Lighting
Model 14031-4
$395.95
Built to order
Ships in: 1-2 weeks
Loading...
Details
Description
The square recessed LED open reflector wall wash light features an IC-rated, energy-efficient LED housing designed for direct contact with loose-fill blown and rolled insulation, ideal for commercial and high-residential new construction. Enjoy flexible installation with 24-inch hangar bars and a collar bracket with 90° rotation in 5° increments. The lamp holder assembly allows a 35° tilt and 1.5-inch vertical adjustment. The electronic direct current LED driver, integrally mounted in the junction box, comes non-dimming standard. Add 120/277V universal dimming and 90+ CRI for improved performance. Optional emergency battery backup offers peace of mind during outages.
Manufacturer
Alcon Lighting
Model
14031-4
Lead Time
Ships in: 1-2 weeks
Return Policy
Assembled to Order. A 50% Restocking Fee May Apply.
Qualifications
Assembled in USA ARRA, Title 24 , LM79 Tested, Title 24-JA8, CETL listed
Wattage
12 Watts, 19 Watts
Voltage
120-277V
Light Color
2700K, 3000K, 3500K, 4000K
CRI
80+, 90+
Driver
Non-dimming is standard. Universal and 0-10V dimming drivers available for an additional charge.
Configuration
Complete Kit
Width
3 inch
Mounting
Trimmed
Lumen Output Minimum
600 Lumens
Lumen Output Max
1200 Lumens
Beam Spread
25° Spot, 45°, 60° Wide Flood
