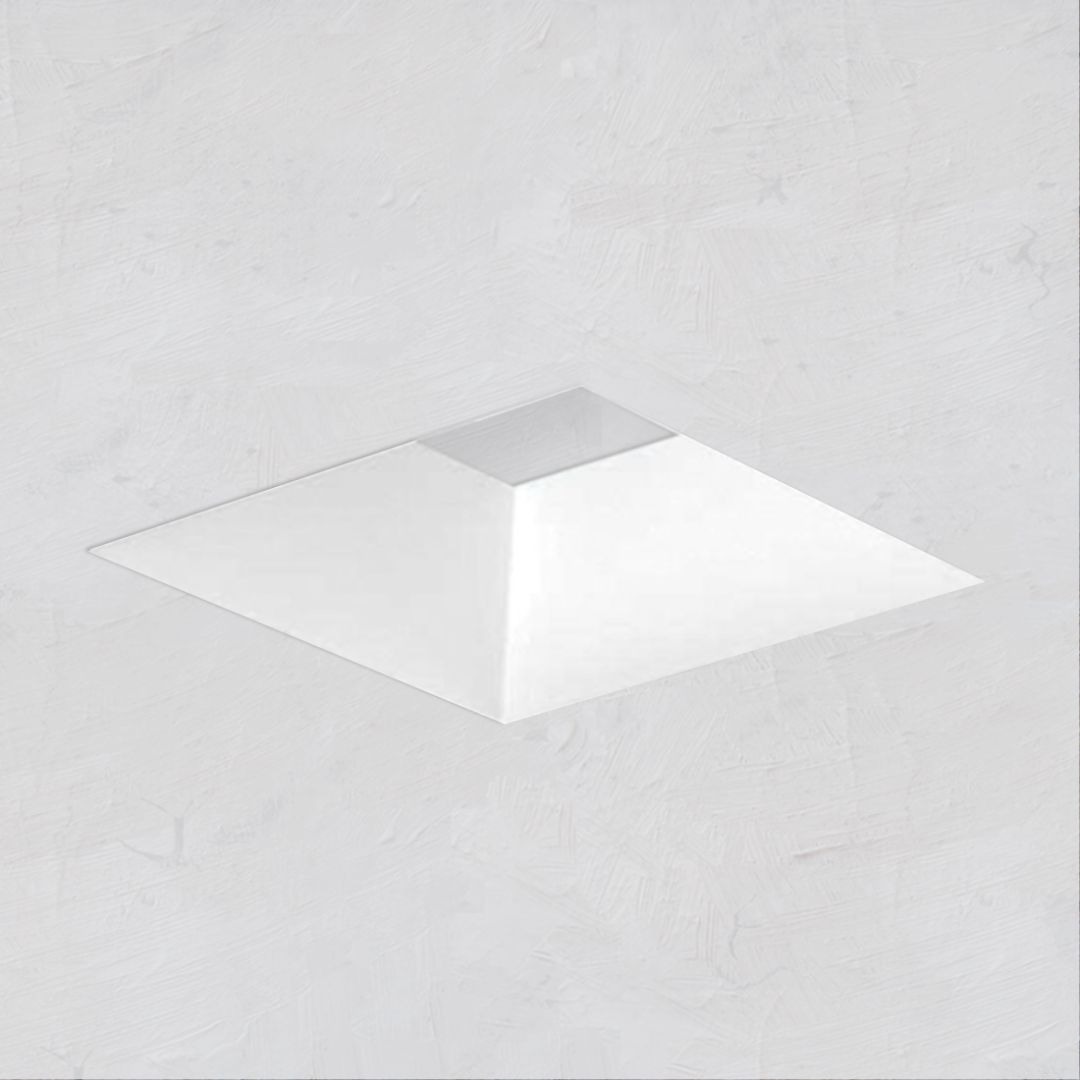

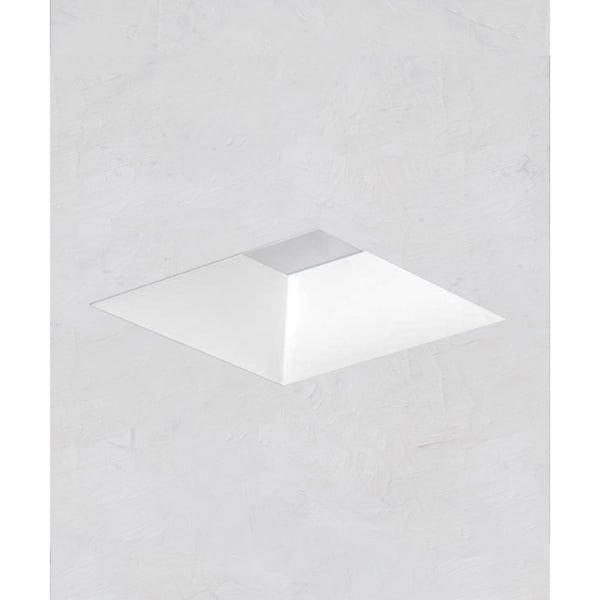

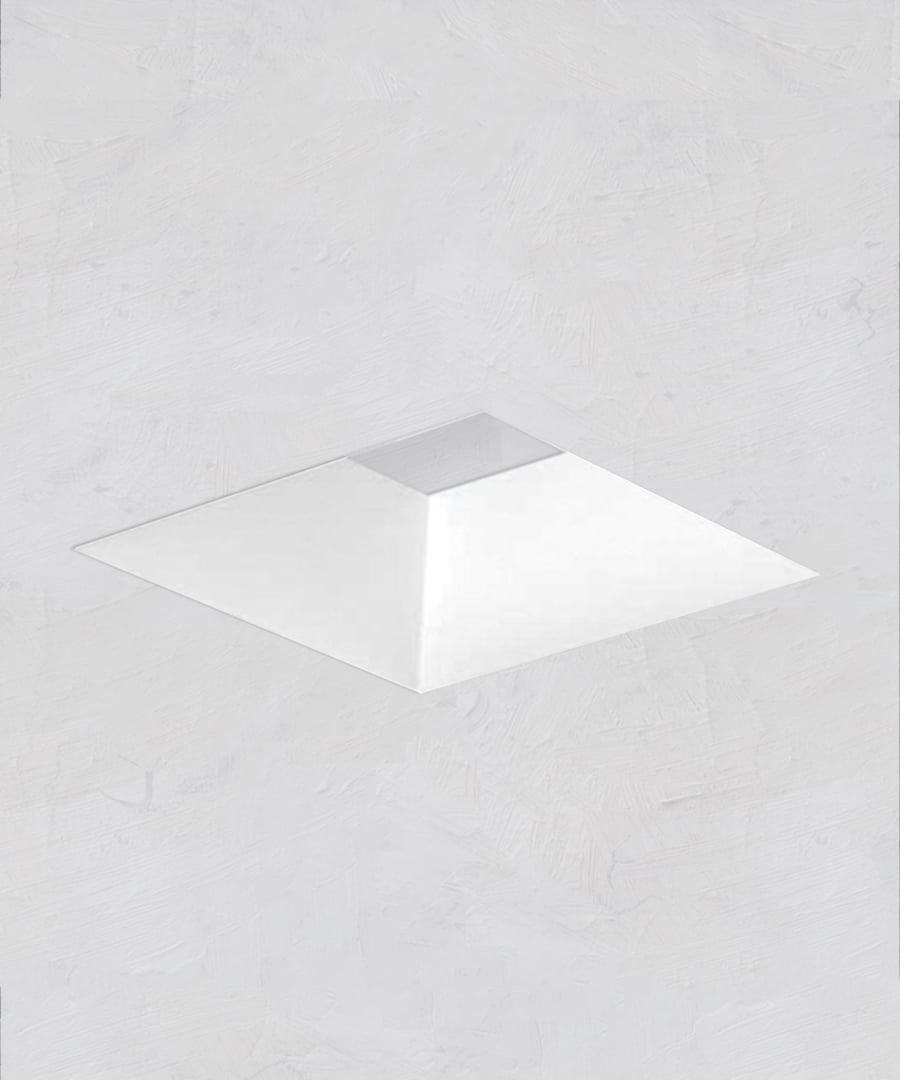

Alcon Lighting 14006-2 Illusione 3 Inch Architectural LED Square Trimless Open Reflector Recessed Down Light Fixture
NOTE: We cannot guarantee lead times for built to order products. Occasional backorder of components (i.e., LED drivers, diodes and/or other electrical components) may lead to assembly delays. Be assured, Alcon Lighting is 100 percent committed to meeting and/or exceeding lead time estimates.
The Illusione 3 Inch Architectural LED Square Trimless Recessed Light Fixture is designed for lasting durability and beauty while providing quality and energy efficient lighting for low to medium ceilings. The Illusione is an ideal solution for clear and bright lighting in retail, hospitality, commercial, and high-end residential settings.
W 3" x L 3 3/16" x H 3 1/8"
Construction: Seamless Die-Cast with IC Rated Housing with Loosefill Blown and Rolled Insulation
Collar Bracket: 90° Rotation in 5° Increments
(Pre-Drywall Installation)
Lamp Holder: 35° Tilt
1 1/2" Vertical Lamp Source Adjustment
Mounting: Housing for New Construction Installation Only
(2) 24" Adjustable Hangar Bars w/ 90° Repositioning
Lens: Frosted
Power Connection: LED Lamp Array is Replaceable via On Board Quick Disconnect Terminal
Voltage: 120/277 UNV
Wattage: 19W
Lumens: 1200 lms
Dimming: 120V/277V UNIDIM
Compatible with most 3-Wire ELV, 2-Wire Incandescent and 5-Wire 0-10V dimmers
Warm Dimming Option: Fixture starts at 2700K Full-Brightness and Smoothly Dims to 1850K / 5%
CRI: 80 Standard
Life: 50,000 Hours
Listings: ETL Listed
Title 24 / JA8 Compliant Certified by CEC. Title 24 (JA8), also known as the California Building Standards Code, states the energy efficiency requirements for residential and nonresidential buildings.
| Manufacturer | Alcon Lighting |
|---|---|
| SKU | 14006-2 |
| Return Policy | Assembled to Order. A 50% Restocking Fee May Apply. |
| Technology | LED |
| Regulations | ETL Listed, CA Title-24 , JA8 Compliant, Assembled in the USA, Buy American Act, LM-79 Tested |
| Voltage | 120-277V |
| Finish | White |
| Color Temperature | 3000K Warm White, 3500K Soft White, 4000K Cool White, 2700K Warm White |
| CRI | 90+ |
| Lens Opacity | Frosted |
| Configuration | Complete Kit |
| Housing Size | 3 Inch |
| Features | Emergency Backup Battery |
| Mount Type | Recessed Trimless |
| Shape | Square |
| Width | 3" |
| Length | 3-3/16" |
| Lumen Output | 1200 - 2199 Lumens |
| Lumen Output Max | 1200 Lumens |
| Wattage | 19 Watts |
| Beam Spread | 60° Wide Flood |
