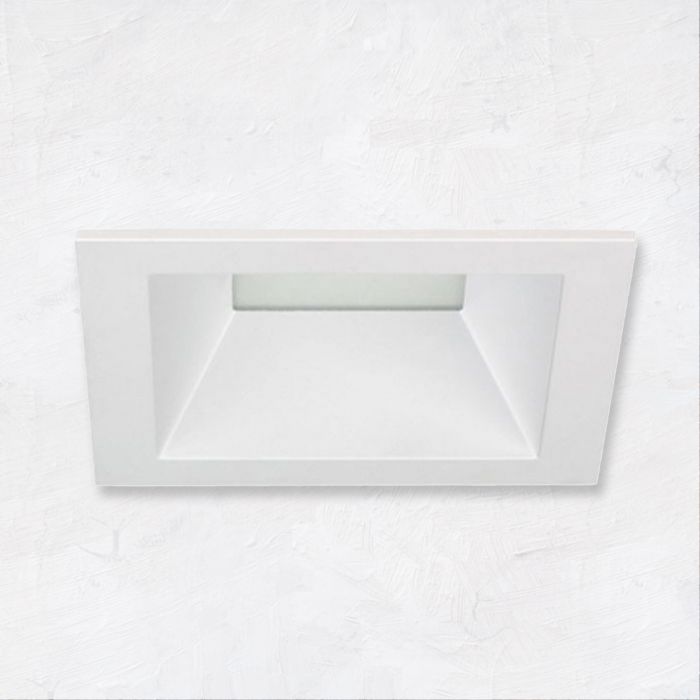

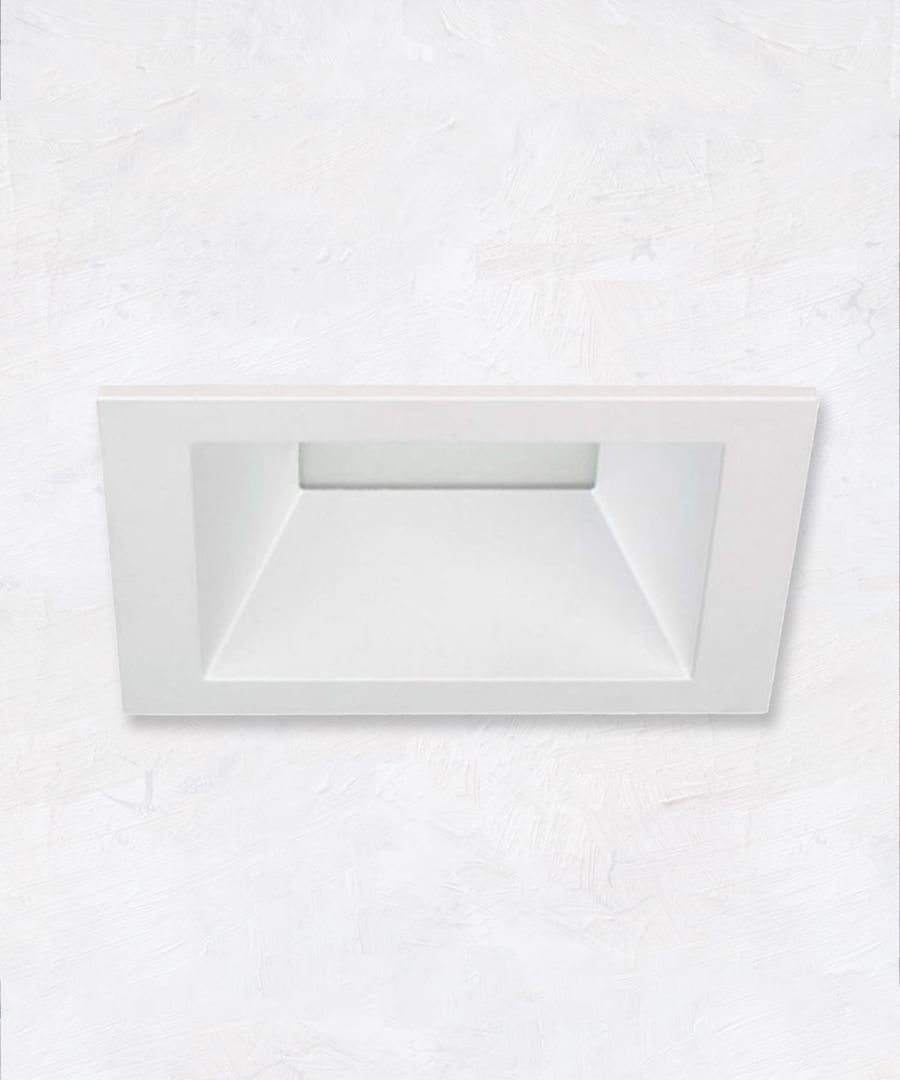

3-Inch Square Architectural Lensed LED Recessed Downlight

by Alcon Lighting Model 14031-1
Assembled in USA ARRA Title 24 Title 24-JA8 CETL listed
$395.95

Built to order

Ships in: 3-7 Business Days

Customize

loader
Loading...

Details

Description

The square recessed LED lensed downlight, designed for new construction installation, features an IC-rated, energy-efficient LED housing suitable for direct contact with loose-fill blown and rolled insulation. The square recessed light includes 24-inch adjustable hanger bars and a collar bracket with 90° rotation in 5° increments for accurate positioning before drywall or ceiling panel installation. The lamp holder assembly offers a 35° tilt and 1.5-inch vertical adjustment. Non-dimming is standard, with universal dimming for 120/277V optional. Add optional 90+ CRI for superior color rendering and optional emergency backup for enduring performance.
Manufacturer
Alcon Lighting
Model
14031-1
Lead Time
Ships in: 3-7 Business Days
Return Policy
Assembled to Order. A 50% Restocking Fee May Apply.
Qualifications
Assembled in USA ARRA, Title 24 , LM79 Tested, Title 24-JA8, CETL listed
Wattage
12 Watts, 19 Watts
Voltage
120-277V
Light Color
2700K, 3000K, 3500K, 4000K
CRI
80+, 90+
Driver
Non-dimming is standard. Universal and 0-10V dimming drivers available for an additional charge.
Configuration
Complete Kit
Width
3 inch
Mounting
Trimmed
Lumen Output Minimum
600 Lumens
Lumen Output Max
1200 Lumens
Beam Spread
25° Spot, 45°, 60° Wide Flood
