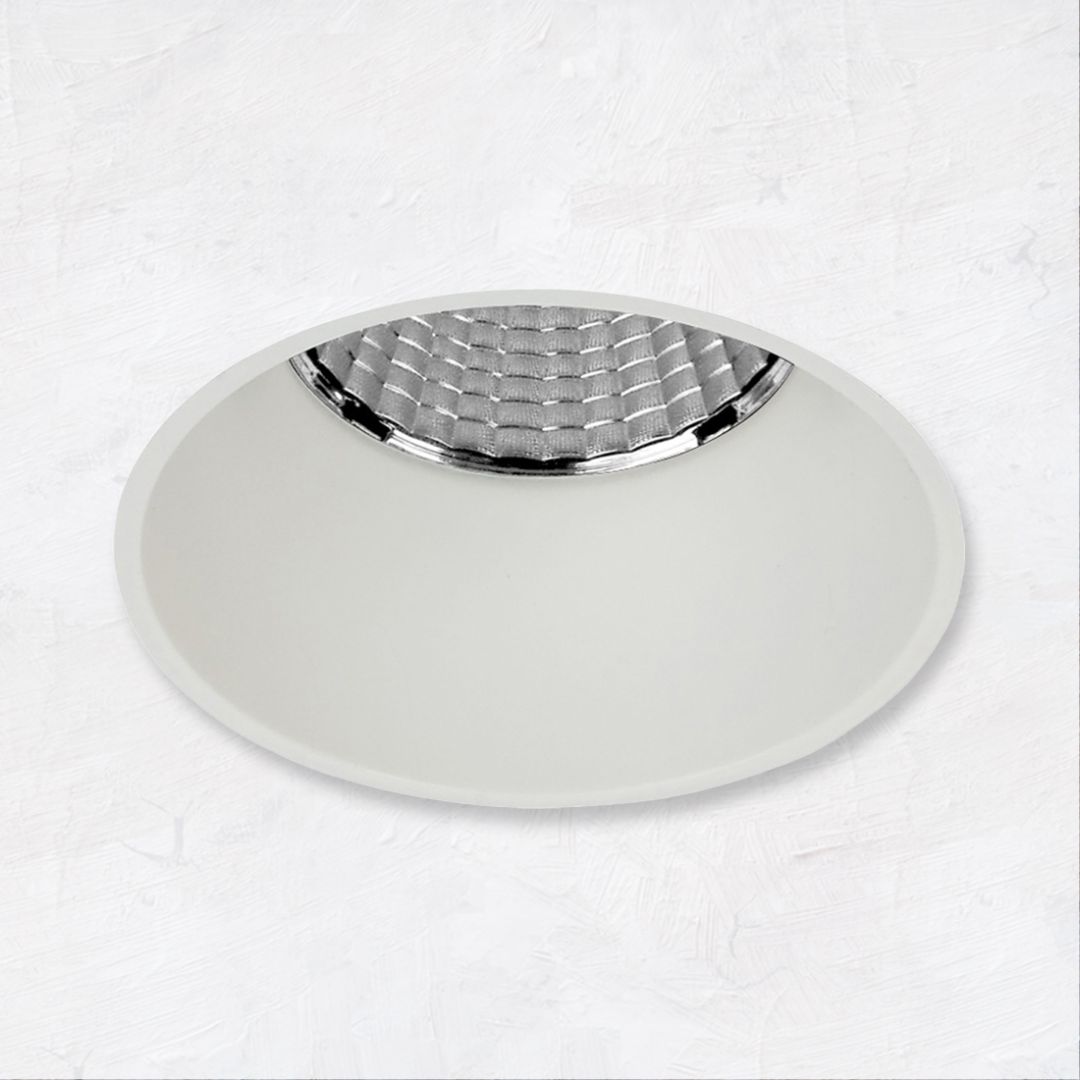

Alcon 14131-DIR 2-inch Trimless Miniature Shallow Round Direct Recessed LED Light
For specification sheet options that don’t appear as selections below, please call (877) 733-5236.
NOTE: We cannot guarantee lead times for built to order products. Occasional backorder of components (i.e., LED drivers, diodes and/or other electrical components) may lead to assembly delays. Be assured, Alcon Lighting is 100 percent committed to meeting and/or exceeding lead time estimates.
Manufacturer | Alcon Lighting |
---|---|
SKU | 14131-DIR |
Return Policy | Assembled to Order. A 50% Restocking Fee May Apply. |
Regulations | ETL , CETL listed, CA Title-24 |
Voltage | 120-277V |
Finish | MG, MW, SB, SC, SG, Satin Haze |
Color Temperature | 2700K Warm White, 3000K Soft White, 3500K Neutral White, 4000K Cool White, 5000K Day Light |
CRI | 90+ |
Mount Type | Recessed Trimless |
Product Type | Direct Downlight |

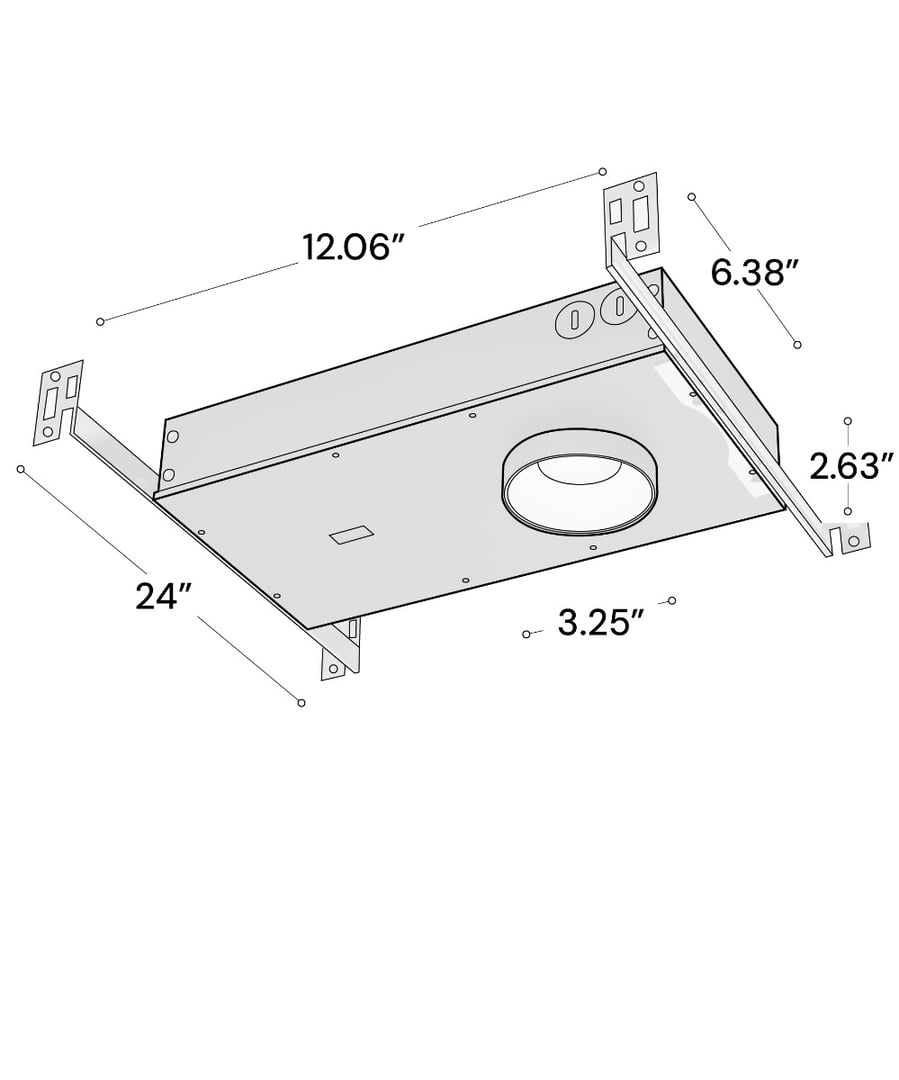

Diameter | 2.5" |
Lumen Output | 100-2,499 Lumens, 2,500-4,900 Lumens |
Wattage | 15W, 22W |
Beam Spread | 20° to 35° (Narrow Flood), 36° to 60° (Flood), 60° & Above (Wide Flood) |
This diecast aluminum 2" LED product, finished with baked enamel, is ideal for enduring ambient and task downlighting. Use our solid light for low-to-medium height ceilings and for high-end residential and commercial applications with shallow plenums. Note that screws lock into position to prevent shifting after installation.
Construction: Die-Cast Aluminum Housing Designed to Secure
to Existing Sheet Rock or Panel Ceilings Up to 3/4" Thick
Trim Ring: Reflector and Trim Secure to Housing Frame with Friction clips to Trim Ring
Optics: Chip On Board LED
Reflector: Multifaceted Specular Reflector
Dimming: Universal Dimming compatible with most 2-Wire TRIAC, 3-Wire ELV, and 5-Wire 0-10V dimmers.
Life: 50,000 Hours (L70)

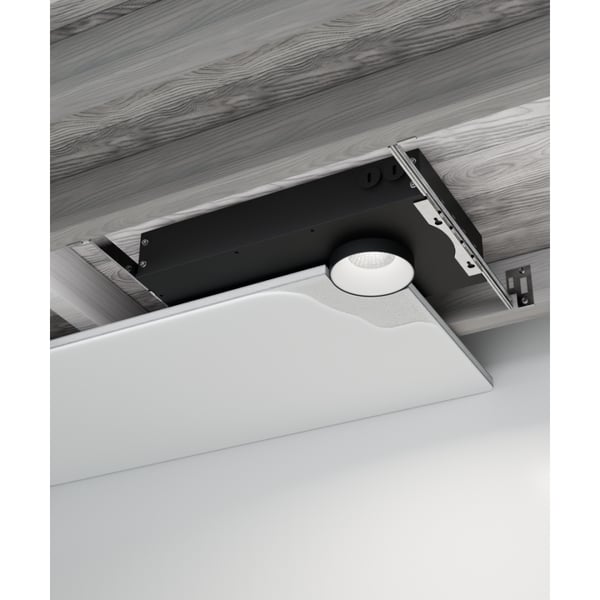

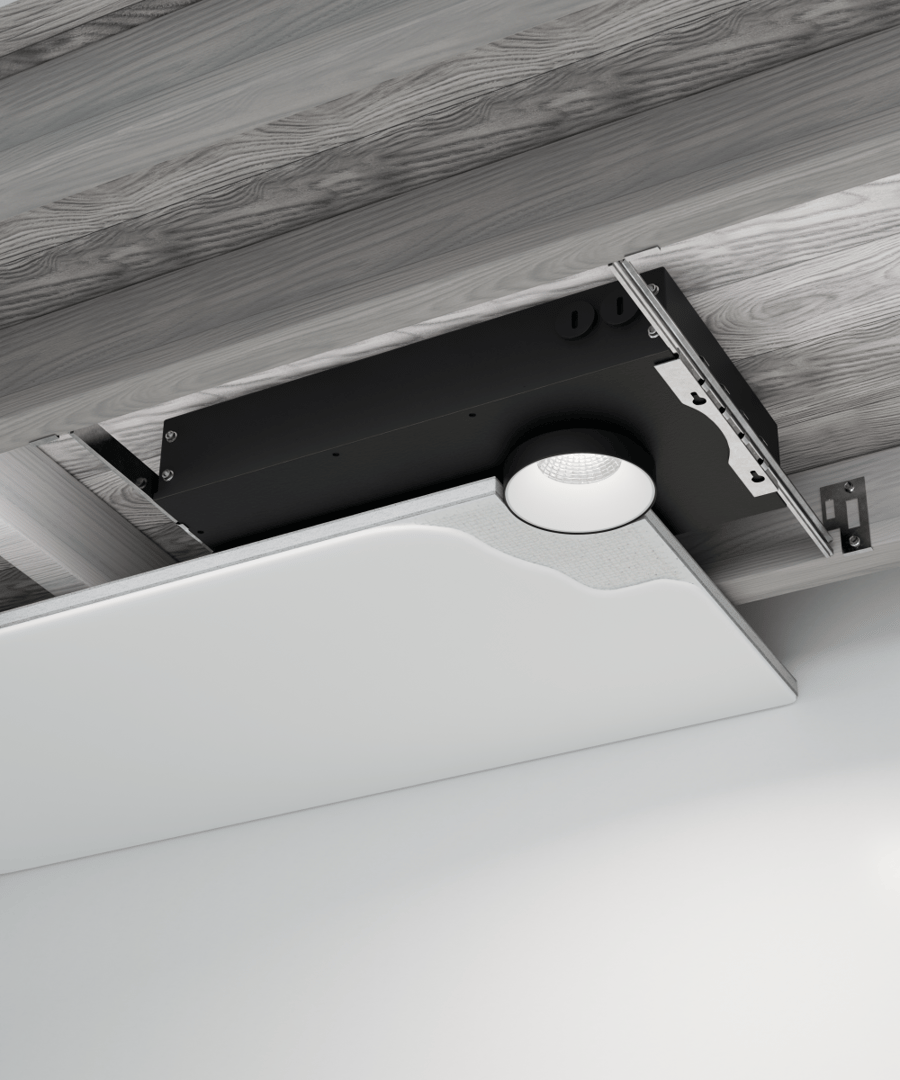

Mounting: New construction suitable, includes two 24" adjustable hanger bars with nail-less install studs for faster secure mounting on wood. Earthquake structural cable compatible
Lens: Optional Airtight lens for wet locations
Warranty: 5 Years Carefree for Parts and Components (Labor not included). A reduced LED lamp life and a Warranty void will result in installations where temperatures exceed 35°C
Listings: ETL/cETL listed to UL1598 & UL8750
Title 24 / JA8 Compliant Certified
NYC approved: Calendar #41937
Suitable for dry and damp locations
