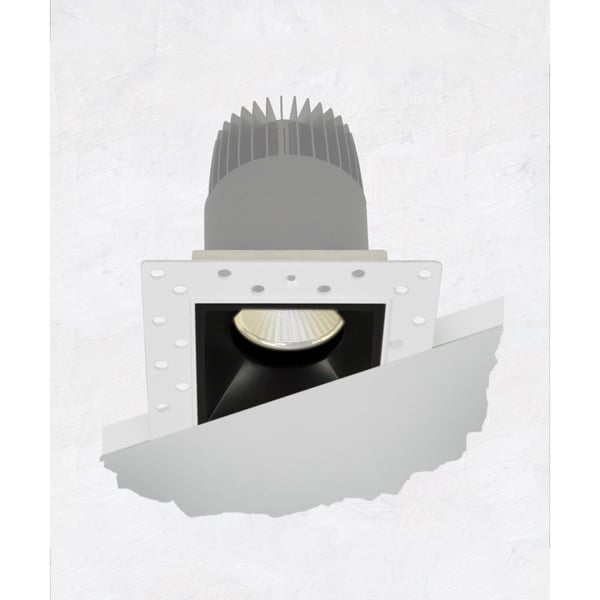

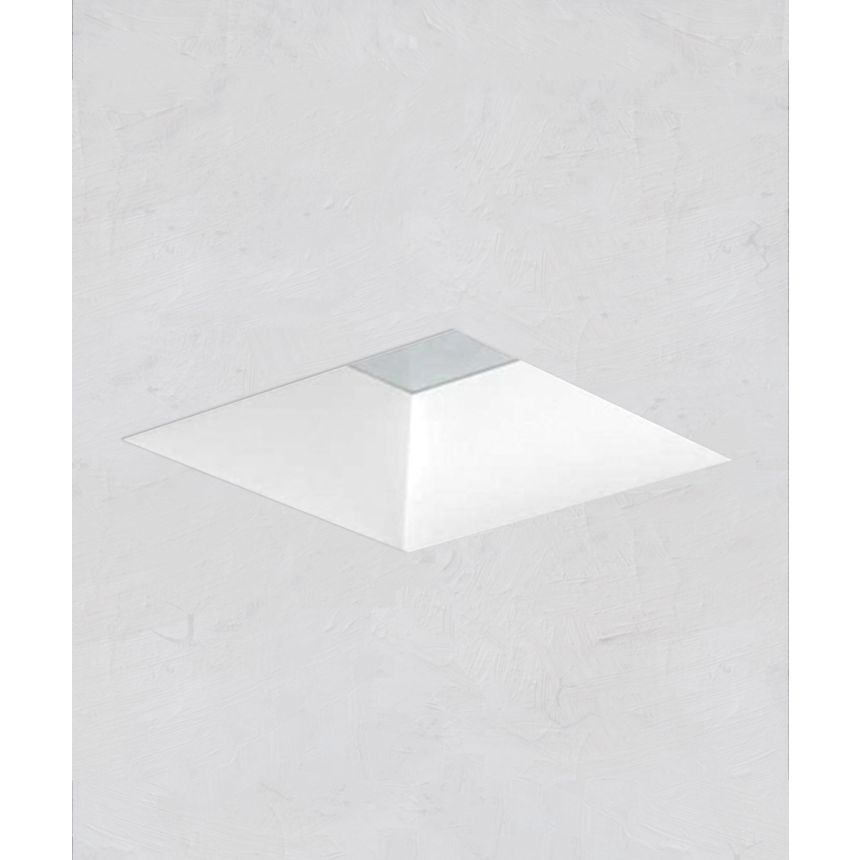

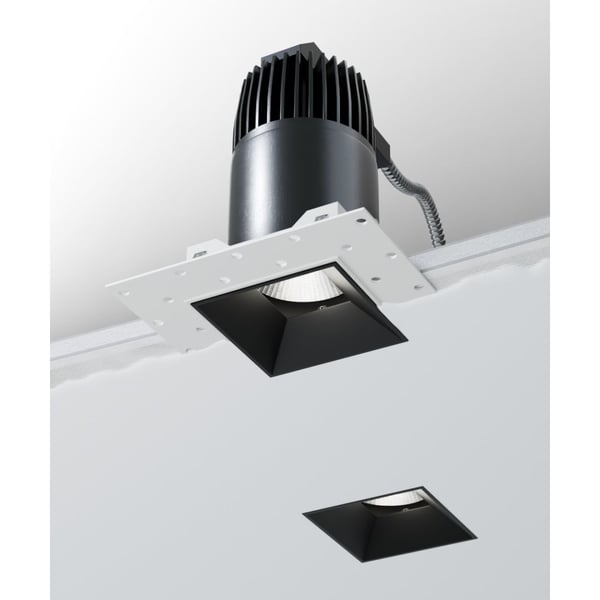

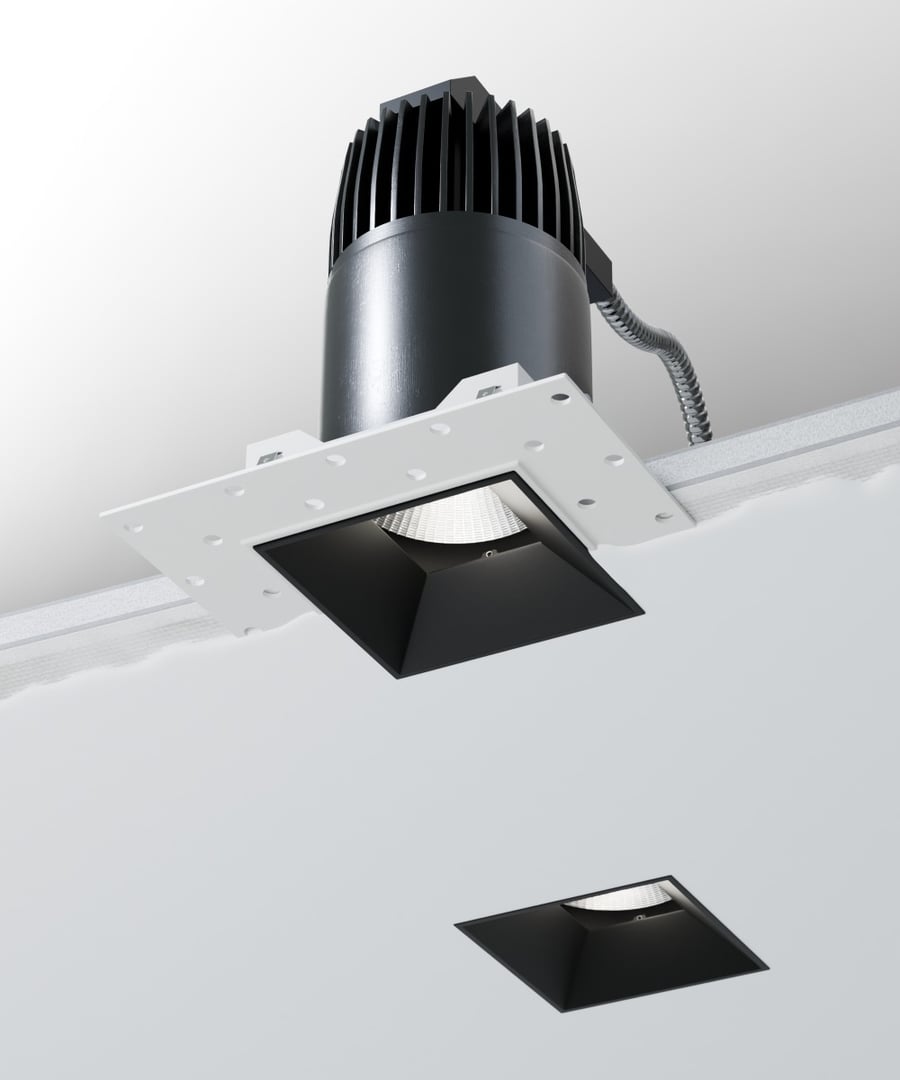

Alcon Lighting 14073-DIR Illusione 2.5 Inch Architectural LED Square Trimless Recessed Fixed Direct Down Light Fixture
Components In-Stock - Assembly Required
Lead Time
Built to Order: 2-4 Weeks
NOTE: given the nature of built-to-order products, we cannot guarantee lead-times. Occasional back-order of components (i.e. LED drivers, diodes, and/or other electrical components) can sometimes lead to delays in assembly. Estimated ship dates are, by definition, not guaranteed.
SKU
14073-DIR
$199.95
Other Products You Might Like
Details

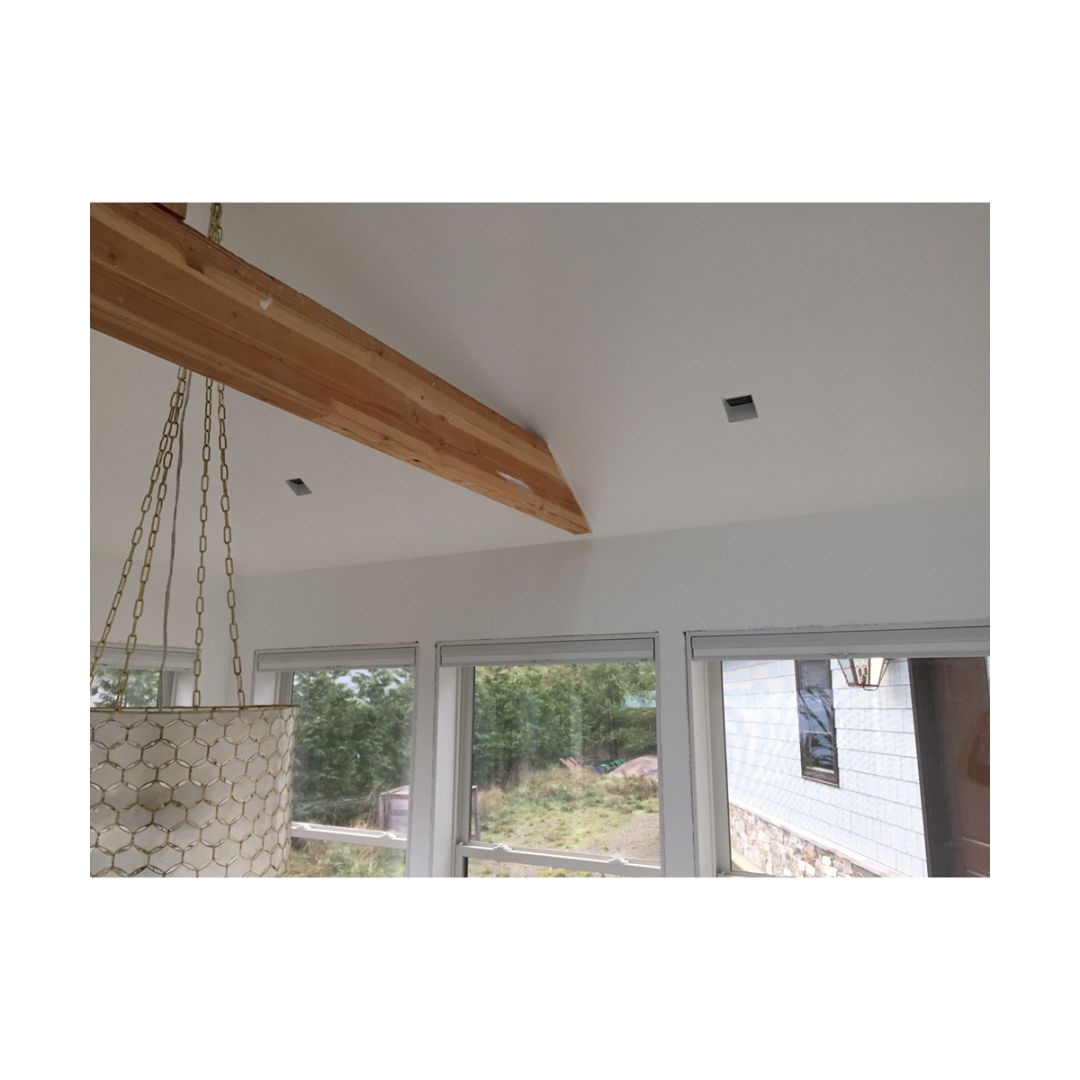

The Illusione 2.5 Inch Architectural LED Square Trimless Recessed Fixed Light Fixture is designed for lasting durability and beauty while providing quality and energy efficient lighting for low to medium ceilings. The Illusione is an ideal solution for clear and bright lighting in retail, hospitality, commercial, and high-end residential settings.
Construction: Die-Cast Aluminum Housing Designed to Secure to Existing Sheet Rock or Panel Ceilings Up to 1" Thick
Trim Ring: Reflector and Trim Secure to Sheet Rock or Housing Frame with Drywall Screws Secured to Trim Ring
Optics: Chip On Board LED
Reflector: Multifaced Specular Reflector
Voltage: 120/277 UNV
Dimming: 120V/277V UNIDIM
Compatible with most 3-Wire ELV, 2-Wire Incandescent and 5-Wire 0-10V dimmers
Warm Dimming Option: Fixture starts at 2700K Full-Brightness and Smoothly Dims to 1850K / 5%
CRI: 80 Standard
Life: 50,000 Hours (L70)
Warranty: 5 Years Free of Defects in Material & Craftsmanship
Listings: ETL/cETL listed to UL1598 & UL8750
Title 24 / JA8 Compliant Certified
Lamp Equivalent: 75W MR16
Construction: Die-Cast Aluminum Housing Designed to Secure to Existing Sheet Rock or Panel Ceilings Up to 1" Thick
Trim Ring: Reflector and Trim Secure to Sheet Rock or Housing Frame with Drywall Screws Secured to Trim Ring
Optics: Chip On Board LED
Reflector: Multifaced Specular Reflector
Voltage: 120/277 UNV
Dimming: 120V/277V UNIDIM
Compatible with most 3-Wire ELV, 2-Wire Incandescent and 5-Wire 0-10V dimmers
Warm Dimming Option: Fixture starts at 2700K Full-Brightness and Smoothly Dims to 1850K / 5%
CRI: 80 Standard
Life: 50,000 Hours (L70)
Warranty: 5 Years Free of Defects in Material & Craftsmanship
Listings: ETL/cETL listed to UL1598 & UL8750
Title 24 / JA8 Compliant Certified
Lamp Equivalent: 75W MR16
More Information
| Manufacturer | Alcon Lighting |
|---|---|
| SKU | 14073-DIR |
| Return Policy | Assembled to Order. A 50% Restocking Fee May Apply. |
| Technology | LED |
| Regulations | cETL Listed , CA Title-24 , Made in USA, Buy American Act |
| Voltage | 120V - 277V |
| Finish | Black, Silver, Chrome, Graphite |
| Color Temperature | 3000K Warm White, 3500K Soft White, 4000K Cool White, 1700K Amber, 2700K Warm White |
| CRI | 90+ |
| Lens Opacity | Frosted |
| Housing Size | 2 Inch |
| Features | Wet Location Rated |
| Mount Type | Recessed Trimless |
| Shape | Square |
| Width | 2.5" |
| Length | 4.36" |
| Lumen Output | 600 - 1199 Lumens, 1200 - 2199 Lumens |
| Lumen Output Minimum | 900 Lumens |
| Lumen Output Max | 1400 Lumens |
| Wattage | 15 Watts, 22 Watts |
