Model 12100-33-R-R

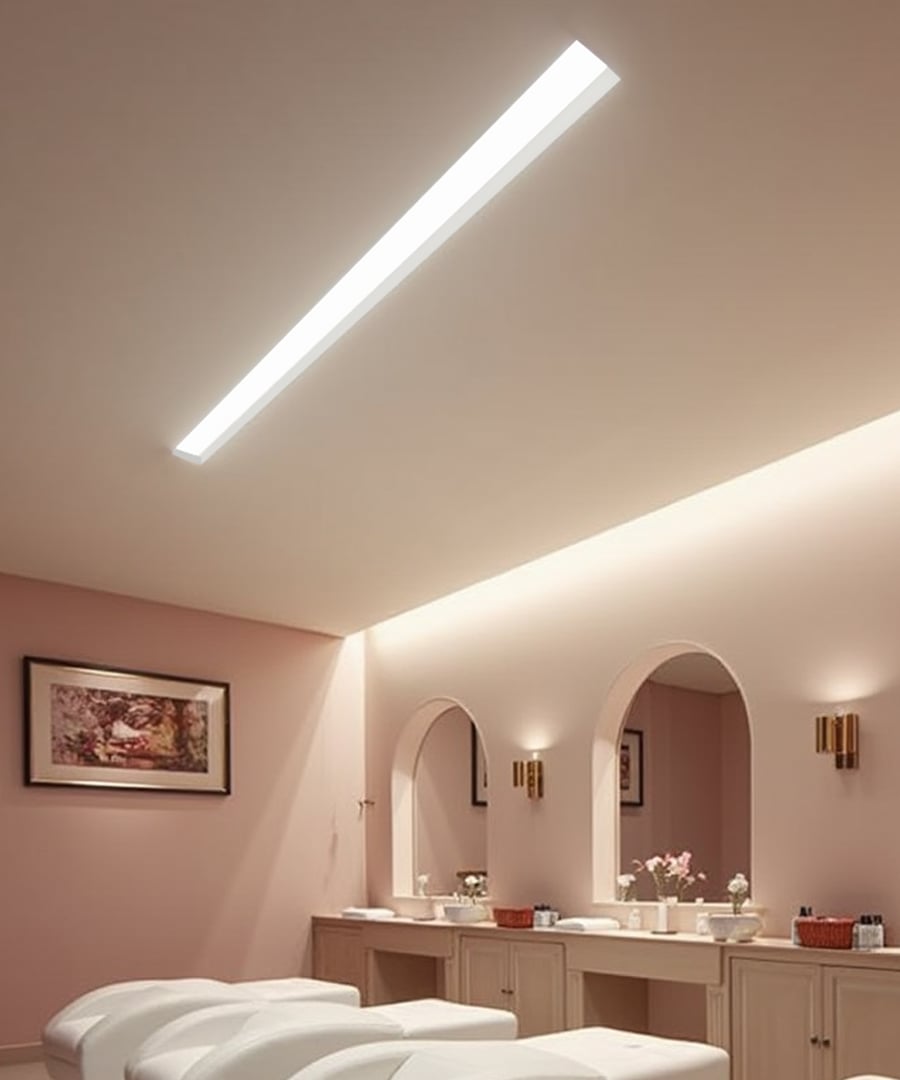

3.75-Inch Regressed LED Linear Recessed Light

By Alcon Lighting
$299.95

Built to order

, ships in: 3-7 business days
Oversized Product Spec Grade UL Damp Location Color Temperature Selectable Switch Wattage Selectable Switch Emergency Backup Battery
loader
Loading...
This linear recessed light features an extruded aluminum housing with a powder coat finish and a 3.75-inch regressed lens to focus light and minimize glare. Enjoy flexible design options with corner connectors for geometric shapes and tandem mounting for continuous runs. The LED light delivers 450 to 900 lumens and operates at selectable wattages of 5, 7.5 and 10 watts per foot with color temperature selection of 3000K, 3500K and 4000K. The standard LED driver supports 0-10V dimming down to 10%. Provide peace of mind during outages with optional 90-minute emergency battery backup.
  • Manufacturer
    Alcon Lighting
  • Model
    12100-33-R-R
  • Lead Time
    Ships in: 3-7 Business Days
  • Return Policy
    Built to order. Restocking fees apply.
  • Qualifications
    Spec Grade, UL, Damp Location
  • Features
    Color Temperature Selectable Switch, Wattage Selectable Switch, Light Direction Selectable Switch, Occupancy Sensor, Emergency Backup Battery
  • Dimming
    0-10V
  • Wattage
    10W/7.5W/5W per foot
  • Voltage
    120-277V
  • Finish
    White, Black
  • CCT
    3000K, 3500K, 4000K
  • CRI
    80+
  • Mounting
    Recessed Trim Flange, Recessed Trimless (Drywall), Recessed T-Bar, Recessed Screw Slot
  • Light Direction
    Direct Downlight
  • Shape
    Linear
  • Beam Spread
    110°
  • Lumens per ft
    450 lm/ft, 670 lm/ft, 900 lm/ft
  • Wattage per ft
    10 W/ft, 5 W/ft, 7.5 W/ft
  • Length
    2 ft., 3 ft., 4 ft., 6 ft., 8 ft.
