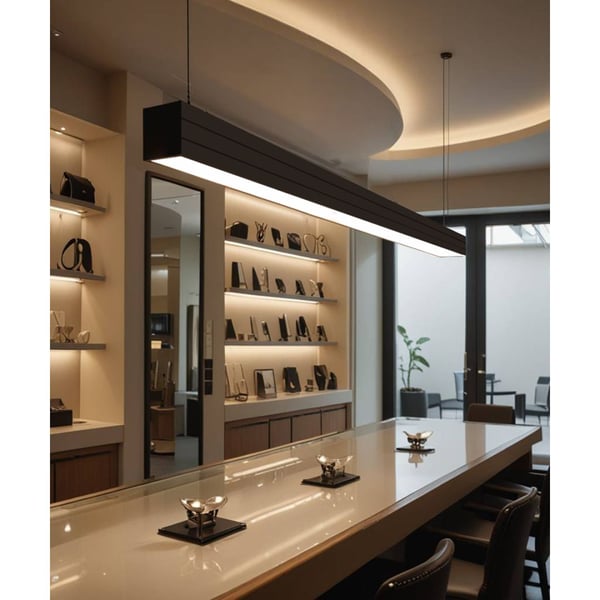

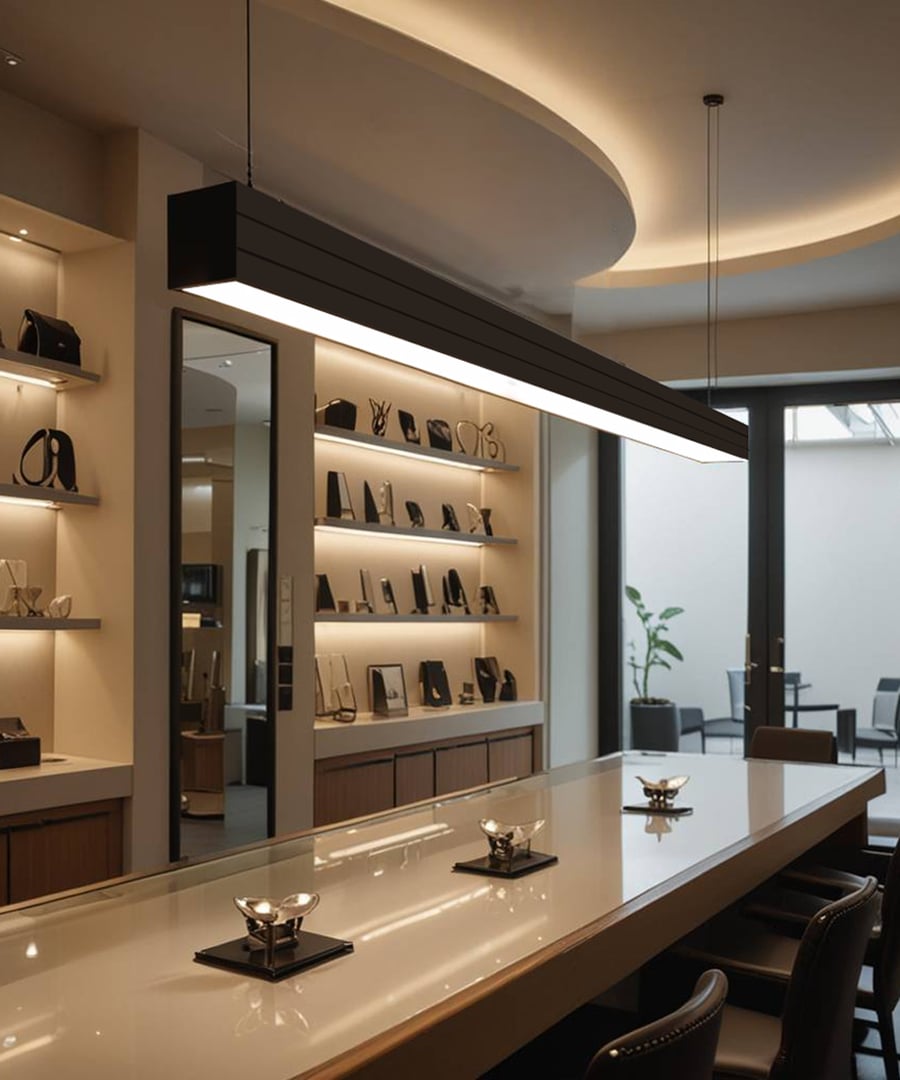

3.75-Inch LED Linear Pendant Light
by Alcon Lighting
Model 12100-33-P
$299.95
Built to order
Ships In: 3-7 Business Days
Loading...
Details
Description
Our linear pendant light features an extruded aluminum housing with a powder coat finish. This pendant can be configured in continuous runs or geometric shapes and offers a 7-position DIP switch for customizable light direction. With field-selectable wattage options of 5, 7.5 and 10 watts per foot, this LED pendant delivers 550 to 1,100 lumens through the 3.75-inch frosted lens when operated in full downlight mode. At 50% up/50% down, it provides 600 to 1,200 lumens. Customize lighting with adjustable color temperature between 3000K, 3500K and 4000K and standard 0-10V dimming down to 10%. Add emergency backup for peace of mind.
Manufacturer
Alcon Lighting
Model
12100-33-P
Lead Time
Ships In: 3-7 Business Days
Return Policy
Assembled to Order. A 50% Restocking Fee May Apply.
Qualifications
Spec Grade, Damp Location, UL
Wattage
10 Watts, 5 Watts, 7.5 Watts
Voltage
120-277V
Finish
White, Black
Light Color
3000K, 3500K, 4000K
CRI
80+
Driver
0-10V
Features
Color Temperature Selectable Switch, Wattage Selectable Switch, Emergency Backup Battery, Light Direction, Occupancy Sensor
Mounting
Pendant
Light Direction
Direct/Indirect
Height
3.75"
Length
2 ft., 3 ft., 4 ft., 6 ft., 8 ft.
Lumens per foot
100 - 599 Lumens, 600 - 1199 Lumens, 1200 - 2199 Lumens
Beam Spread
110°
