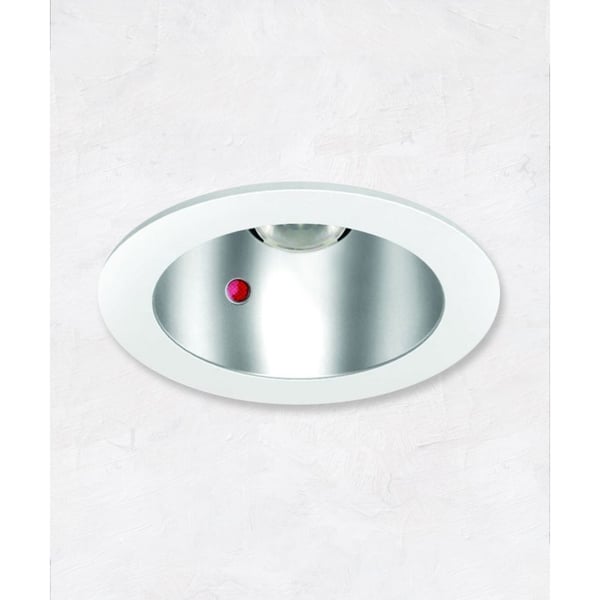

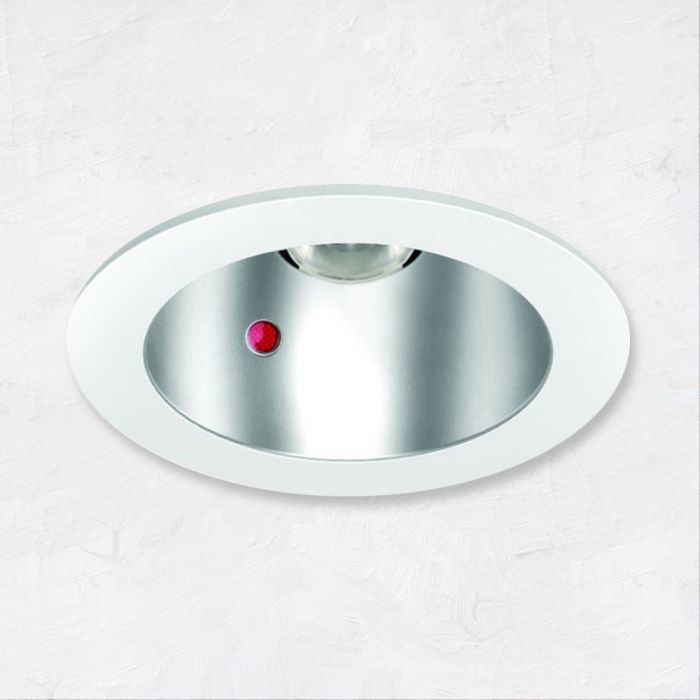

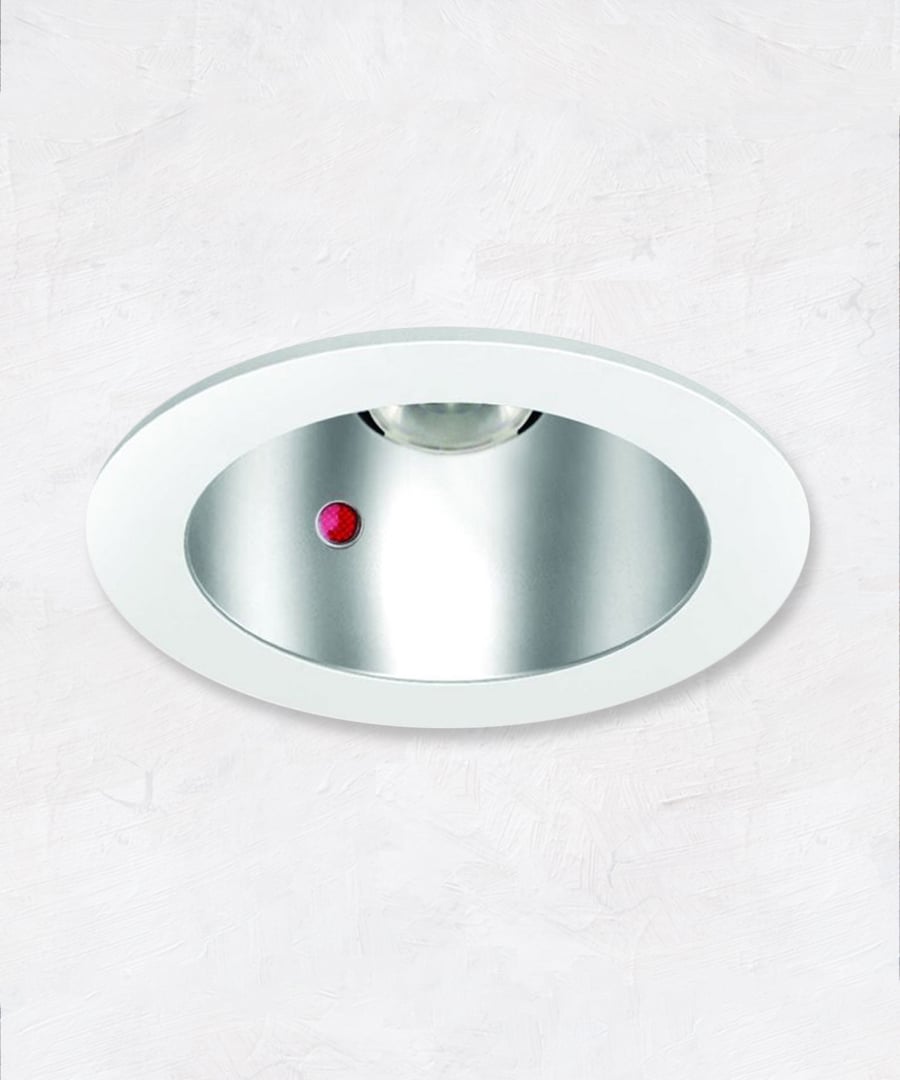

Alcon Lighting 14085 Node II Architectural LED 6 Inch Emergency Recessed Direct Down Light - 3600 Lumens
For specification sheet options that don’t appear as selections below, please call (877) 733-5236.
NOTE: We cannot guarantee lead times for built to order products. Occasional backorder of components (i.e., LED drivers, diodes and/or other electrical components) may lead to assembly delays. Be assured, Alcon Lighting is 100 percent committed to meeting and/or exceeding lead time estimates.
|Return Policy||Assembled to Order. A 50% Restocking Fee May Apply.|
|Regulations||CETL listed, cUL, CA Title-24 , JA8 Compliant|
|Color Temperature||4000K Cool White, 2700K Residential Warm|
|Features||Emergency Backup Battery|
|Mount Type||Recessed Flanged|
|Product Type||Direct Downlight|
|Lumen Output||2,500-4,900 Lumens|
|Lumen Output Max||3600 Lumens|
The Node Architectural LED Emergency Down Light is a high-output miniature recessed fixture with a low voltage battery disconnect feature to protect the battery from severe damage during prolonged power failures. The Node is ideal for low to medium height ceilings in commercial and architectural applications
Mounting: Suitable for new construction installations only, supplied with (2) 24" adjustable hanger bars with 90° repositioning ability
Test Switch: Easily accessible push-to-test switch for maintenance alerts and self-diagnostic monitoring of LED status, battery capacity, and charger function
Construction: Integral cast-aluminum, heat sink design
Junction Box: Pre-wired heavy duty 16-gauge, die-formed galvanized steel, 64 cubic-inch for a maximum of (8) #12 AWG wires
Reflector: Heavy gauge one piece, flanged glare-free reflector
Power Connection: LED lamp array is replaceable via on board quick disconnect terminal. Meets CA Title 24 Requirements and other standards restricting the use of Medium Base or Bi-Pin Sockets.
Voltage: 120-277 AC 50/60 Hz
Lumens: 3600 lms / EM Lumens: 900 lms
Power Factor: >.90
Life: 50,000 Hours
Operating Temperature: 4ºF ~ 131ºF (-20ºC ~ 50ºC)
EM Operating Temperature: -32°F~104°F (0°C~40°C) Listings: Title 24 JA-8, cETLus, cULus, NYC approved: Calendar #41937.
Warranty: 5 Years Carefree for Parts & Components (Labor Not Included)
