Model 12100-22-P-Z

2-Inch LED 3D Linear Lighting System

Name: 2-Inch LED 3D Linear Lighting System
Brand: Alcon Lighting
SKU: 12100-22-P-Z
Price: 574.95 USD
Availability: InStock

By Alcon Lighting

$574.95

Built to order

, ships in: 3-7 business days

Customize

8W External Emergency Back-up Battery + $150.00

25W External Emergency Back-up Battery + $200.00

8W Internal Emergency Back-up Battery + $150.00

Occupancy Sensor + $100.00

Select All

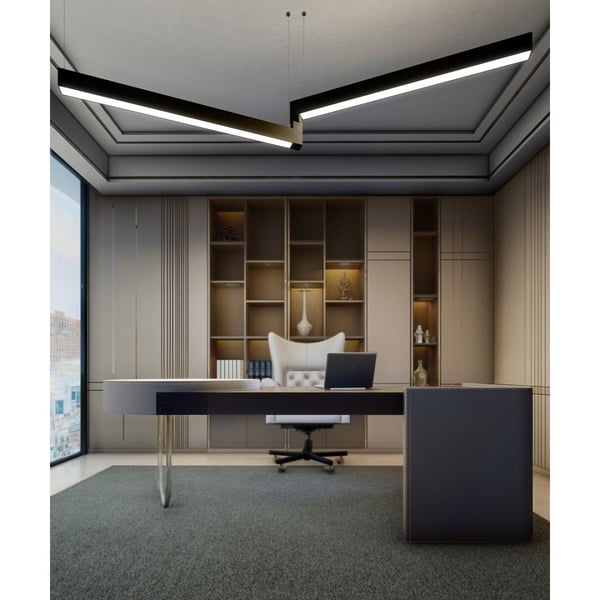

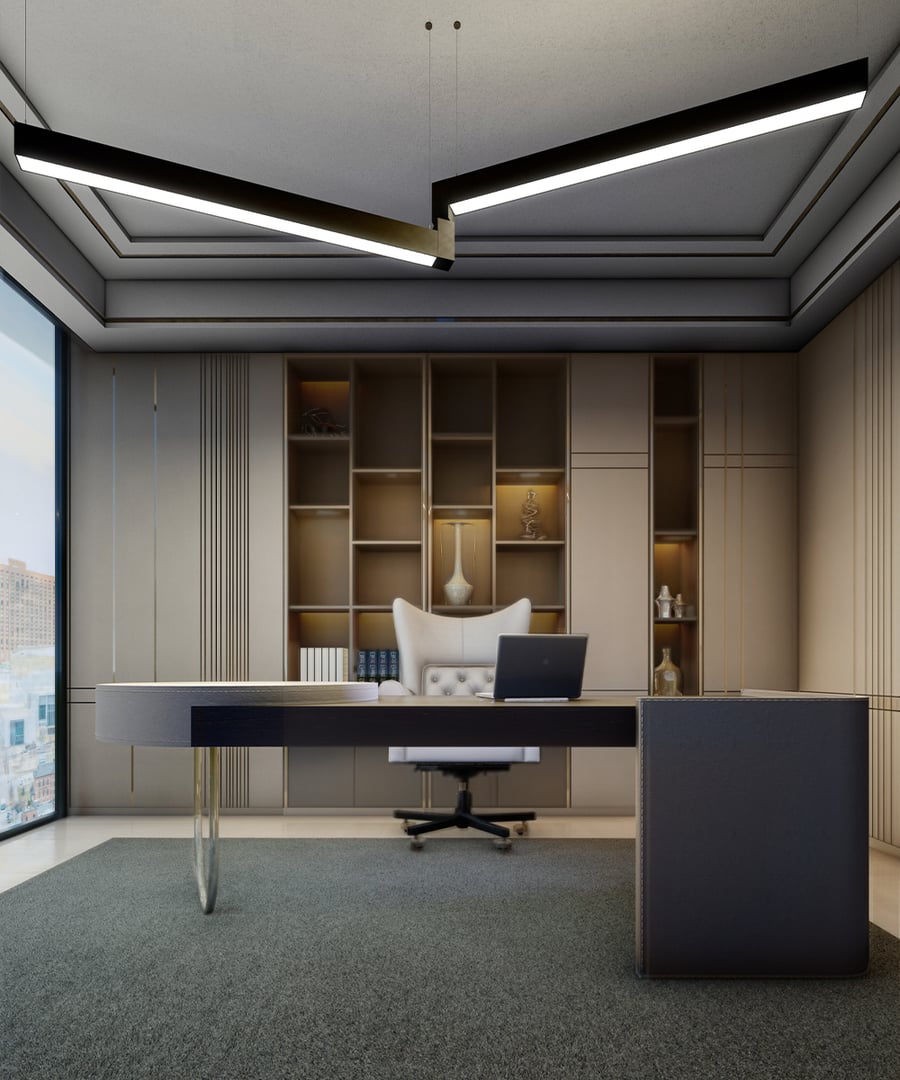

Create depth and dimension with an innovative linear lighting system that features a Z-shaped joiner in addition to L, Y, V and cross joiners, allowing you to create dynamic light patterns and three-dimensional geometric designs in commercial and hospitality spaces. The sleek extruded aluminum housing, combined with a frosted diffuser, delivers soft even lighting, and offers versatility with adjustable wattage (5W/7.5W/10W) control, color temperature selection (30/35/40K), 0-10V dimming and a 7-position DIP switch to control light direction. Add optional emergency backup for ongoing performance during outages.

Manufacturer

Alcon Lighting
Model

12100-22-P-Z
Lead Time

Ships in: 3-7 Business Days
Return Policy

Built to order. Restocking fees apply.
Qualifications

Spec Grade, UL, Damp Location
Features

Color Temperature Selectable Switch, Wattage Selectable Switch, Light Direction Selectable Switch, Occupancy Sensor, Emergency Backup Battery
Dimming

0-10V
Voltage

120-277V
Finish

White, Black
CCT

3000K, 3500K, 4000K
CRI

80+
Mounting

Pendant, Pendant Aircraft Cable
Light Direction

Direct/Indirect
Shape

Linear
Beam Spread

110°
Lumens per ft

350 lm/ft, 400 lm/ft, 500 lm/ft, 525 lm/ft, 600 lm/ft, 700 lm/ft, 750 lm/ft, 800 lm/ft, 1000 lm/ft
Wattage per ft

10 W/ft, 5 W/ft, 7.5 W/ft
Length

2 ft., 3 ft., 4 ft., 6 ft., 8 ft.
