Model 12100-22-P-Z-R

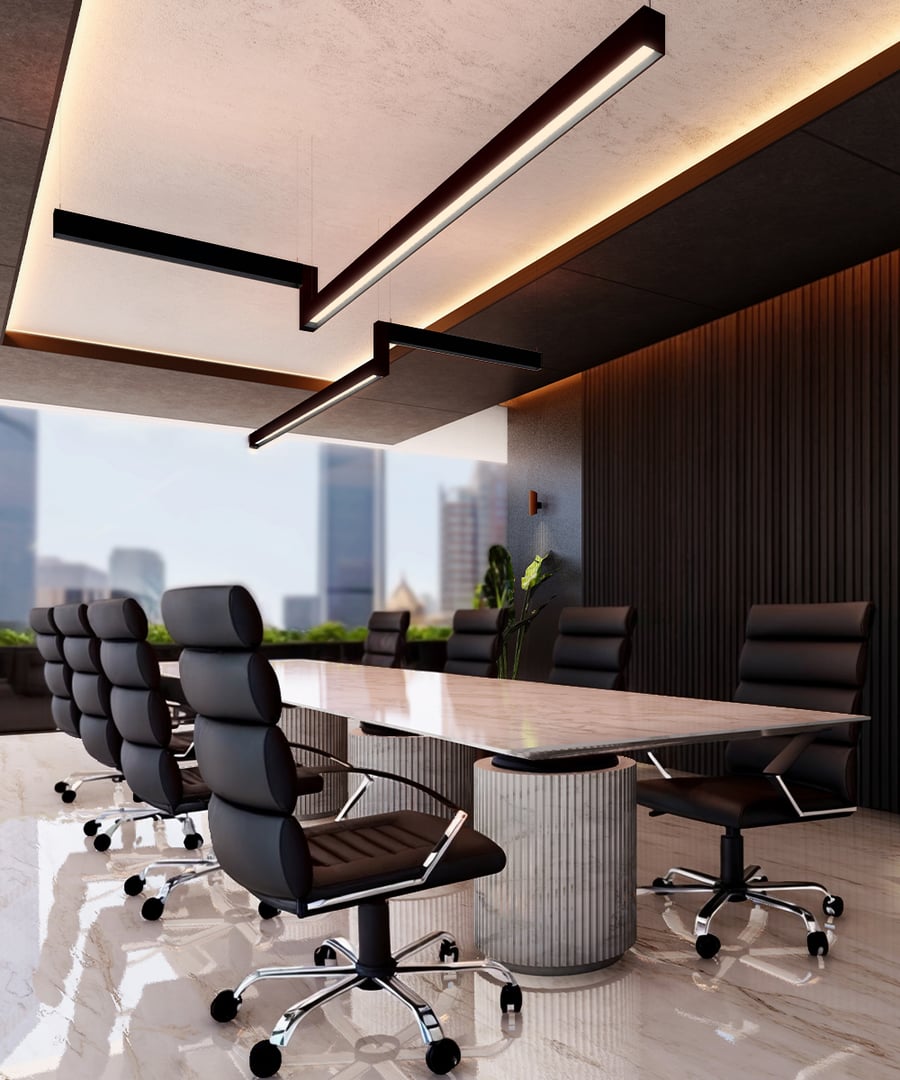

2-Inch Regressed LED 3D Linear Lighting System

By Alcon Lighting
$299.95

Built to order

, ships in: 3-7 business days
Oversized Product Spec Grade UL Damp Location Color Temperature Selectable Switch Wattage Selectable Switch Emergency Backup Battery
loader
Loading...
Enhance commercial and hospitality spaces with a versatile linear lighting system that allows for three-dimensional designs using various joiners, including a Z-shaped joiner that creates depth and three-dimensional designs. The sleek extruded aluminum housing, pairs with a regressed lens to create soft, controlled lighting. The LED light offers wattage (5W/7.5W/10W) and color temperature (30/35/40K) selection and a 7-position DIP switch to control light direction. Add optional emergency backup for continuous performance during outages. Damp location-rated for outdoor use under cover.
  • Manufacturer
    Alcon Lighting
  • Model
    12100-22-P-Z-R
  • Lead Time
    Ships in: 3-7 Business Days
  • Return Policy
    Built to order. Restocking fees apply.
  • Qualifications
    Spec Grade, UL, Damp Location
  • Features
    Color Temperature Selectable Switch, Wattage Selectable Switch, Light Direction Selectable Switch, Occupancy Sensor, Emergency Backup Battery
  • Dimming
    0-10V
  • Voltage
    120-277V
  • Finish
    White, Black
  • CCT
    3000K, 3500K, 4000K
  • CRI
    80+
  • Mounting
    Pendant, Pendant Aircraft Cable
  • Light Direction
    Direct/Indirect
  • Shape
    Linear
  • Beam Spread
    110°
  • Lumens per ft
    350 lm/ft, 400 lm/ft, 500 lm/ft, 525 lm/ft, 600 lm/ft, 700 lm/ft, 750 lm/ft, 800 lm/ft, 1000 lm/ft
  • Wattage per ft
    10 W/ft, 5 W/ft, 7.5 W/ft
  • Length
    2 ft., 3 ft., 4 ft., 6 ft., 8 ft.
