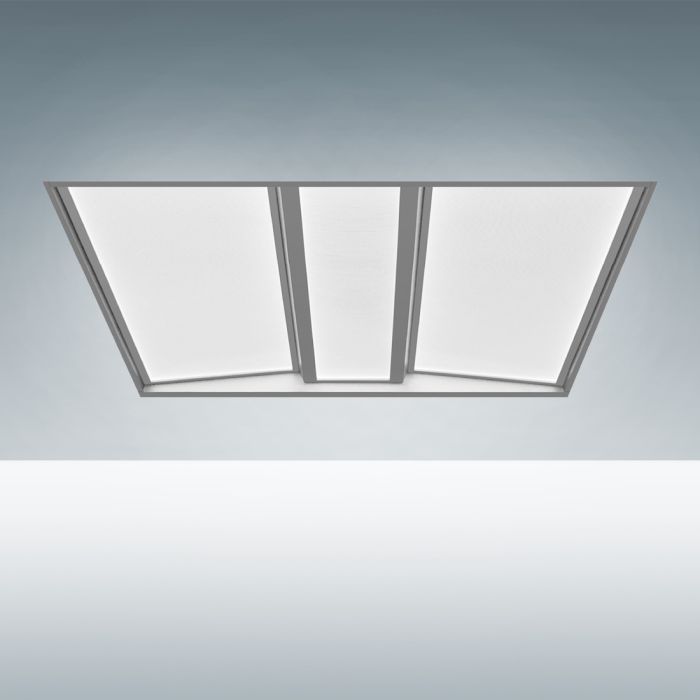

Alcon Lighting 14125 Architectural LED Recessed Volumetric Flat Panel Direct Light Troffer
NOTE: given the nature of built-to-order products, we cannot guarantee lead-times. Occasional back-order of components (i.e. LED drivers, diodes, and/or other electrical components) can sometimes lead to delays in assembly. Estimated ship dates are, by definition, not guaranteed.
The specification grade Architectural 2x4 LED Troffer and 2x2 LED Troffer deliver continuous clean lines and clear light to commercial, hospitality and residential interior architectural lighting applications. Our modern, slim profiles and stylish 2x4 LED Lights offer excellent direct lighting, exceptional performance and versatility for office lighting as well as classrooms, conference rooms, museums, retail outlets, hotels, restaurants, and more. The Commercial LED Lighting integrated LED Troffer Lights are available in standard lengths of 2x2 & 2x4.
Construction: Die-cast aluminum frame powder coated white
Lens: Edge-lit LED technology and micro-prismatic conical structures in the diffuser lens
Voltage: 120-277V (50/60 Hz) Constant Current
Dimming: 0-10V Dimming Standard (10%); 1% Dimming Optional
CRI: 80+
Life: 165,000 Hours L70; 105,000 Hours L80
Operating Temperature: -40ºC to +50ºC
Power Factor: > 0.95
Listings: cETL Listed
| Manufacturer | Alcon Lighting |
|---|---|
| SKU | 14125 |
| Return Policy | Assembled to Order. A 30% Restocking Fee May Apply. |
| Technology | LED |
| Regulations | cETL Listed |
| Voltage | 120V - 277V |
| Color Temperature | 3000K Warm White, 3500K Soft White, 4000K Cool White, 2700K Warm White |
| CRI | 80+ |
| Features | 0-10V Dimming |
| Product Type | Direct Downlight |
| Width | 23.75" |
| Lumen Output | 3500 - 4999 Lumens, 5000 - 7499 Lumens |
| Lumen Output Minimum | 4200 Lumens |
| Lumen Output Max | 5100 Lumens |
| Wattage | 40 Watts, 48 Watts |
