Model 14150

Acrylic Recessed LED Center-Basket Troffer Light

By Alcon Lighting
$244.95

In Stock

, ships in: 1-2 weeks
Oversized Product Spec Grade UL DLC Damp Location Color Temperature Selectable Switch Wattage Selectable Switch Emergency Backup Battery
loader
Loading...

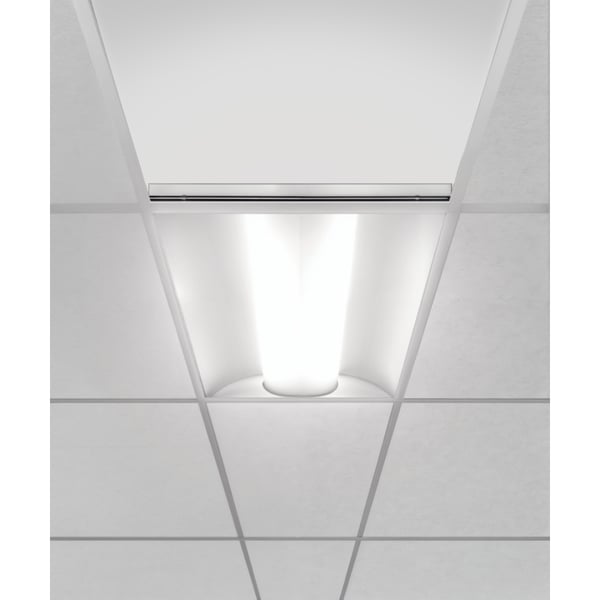

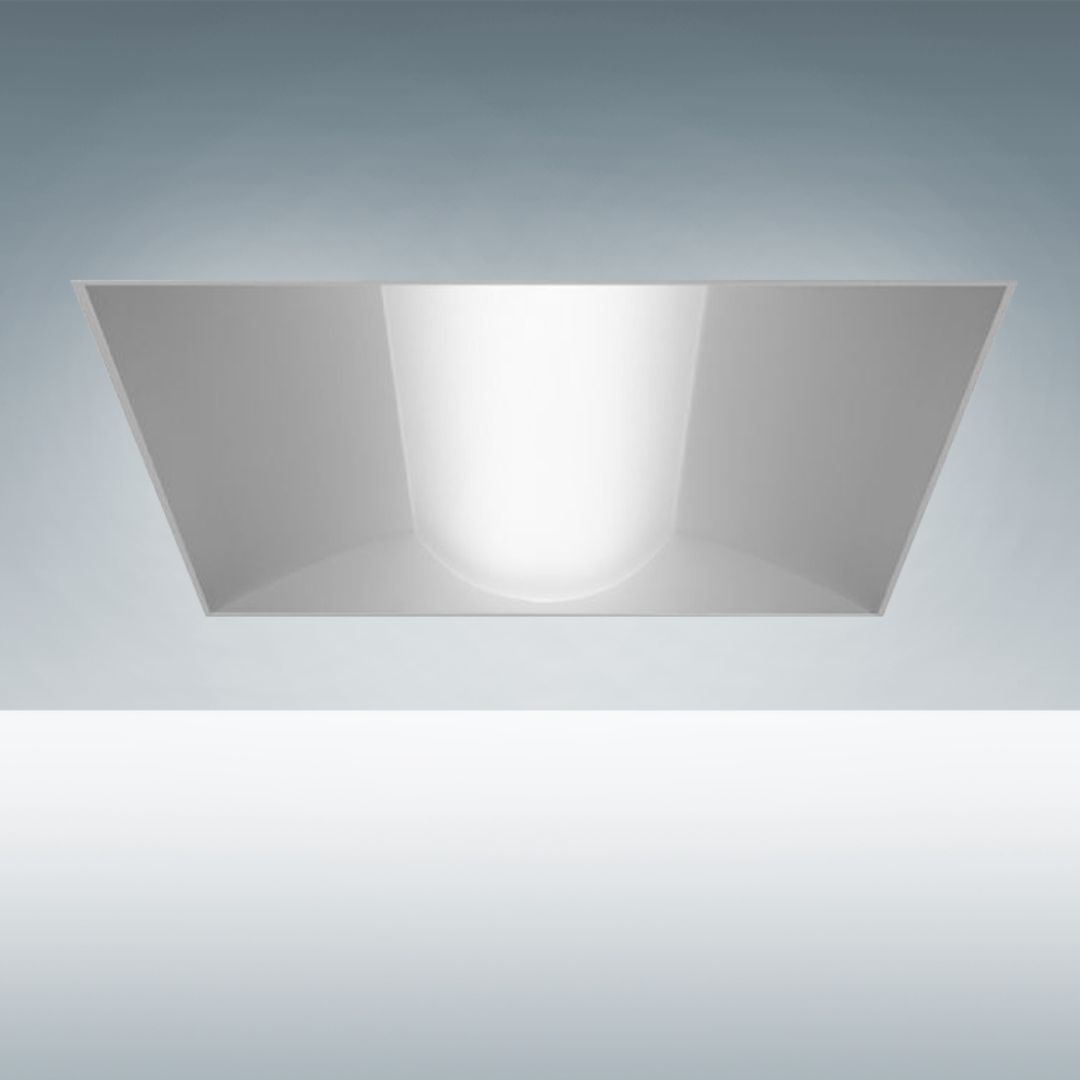

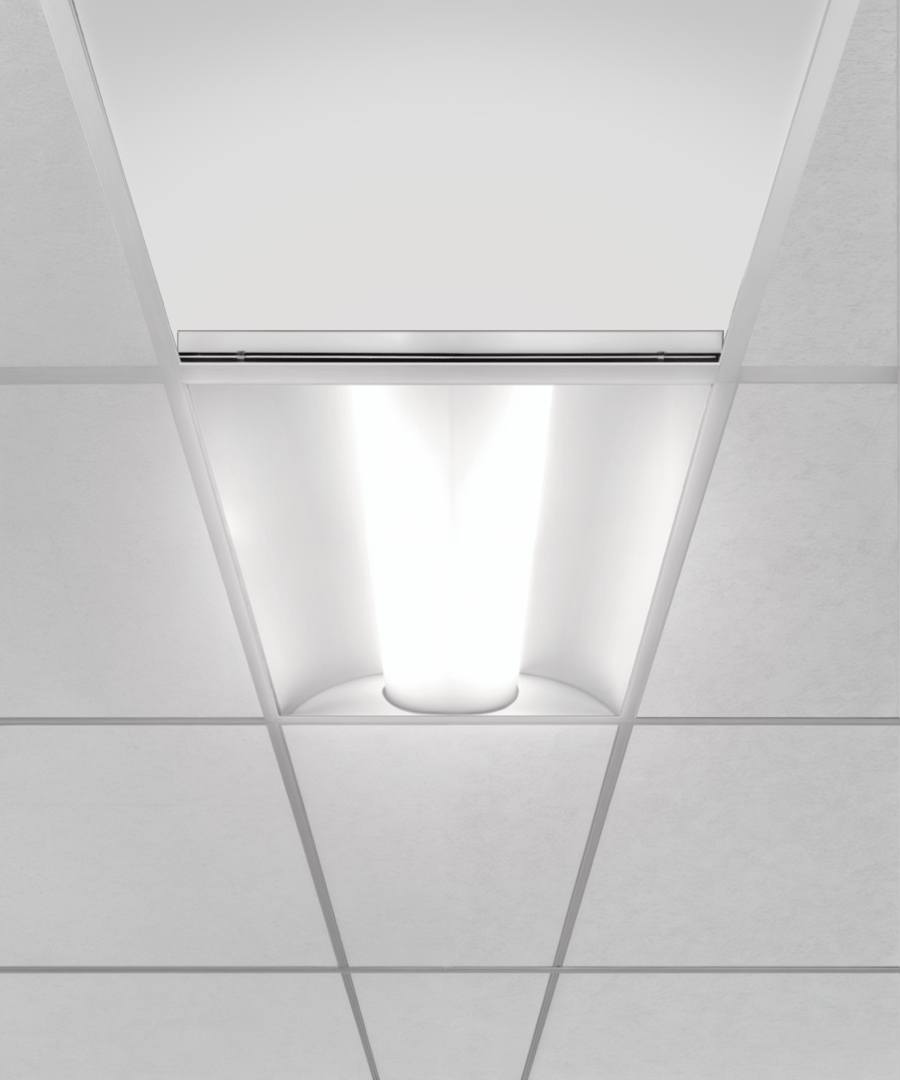

Designed for commercial and institutional spaces, this recessed troffer features a back-lit center basket with a frosted polycarbonate lens, ensuring uniform, volumetric lighting that minimizes glare and prevents eyestrain. The LED troffer's energy-efficient design offers selectable color temperatures from 3500K to 5000K and a 3-position wattage selection for versatile lighting. Constructed from a one-piece ribbed aluminum frame with interlocking corners, this troffer ensures durability and safe handling, while the housing acts as a heat sink to improve longevity. Standard 0-10V dimming provides smooth control, compatible with various systems. Damp location-rated and emergency backup battery-ready.
  • Manufacturer
    Alcon Lighting
  • Model
    14150
  • Lumen output
    2500 lm, 2570 lm, 3125 lm, 3225 lm, 3850 lm, 3950 lm, 4250 lm, 4758 lm, 5715 lm
  • Lead Time
    Ships In: 1-2 Weeks
  • Return Policy
    Built to order. Restocking fees apply.
  • Qualifications
    Spec Grade, UL, DLC, Damp Location
  • Features
    Color Temperature Selectable Switch, Wattage Selectable Switch, Emergency Backup Battery
  • Dimming
    0-10V
  • Wattage
    20W, 25W, 30W, 34W, 38W, 45W
  • Voltage
    120-277V
  • Finish
    White
  • CCT
    3500K, 4000K, 5000K
  • CRI
    80+
  • Mounting
    Recessed Lay-In (T-Grid), Surface
  • Light Direction
    Direct Downlight
  • Shape
    Rectangle, Square
  • Beam Spread
    120°
  • Size
    1' x 4', 2' x 2', 2' x 4'
  • Wattage per ft
    20 W/ft, 25 W/ft, 30 W/ft, 34 W/ft, 38 W/ft, 45 W/ft
