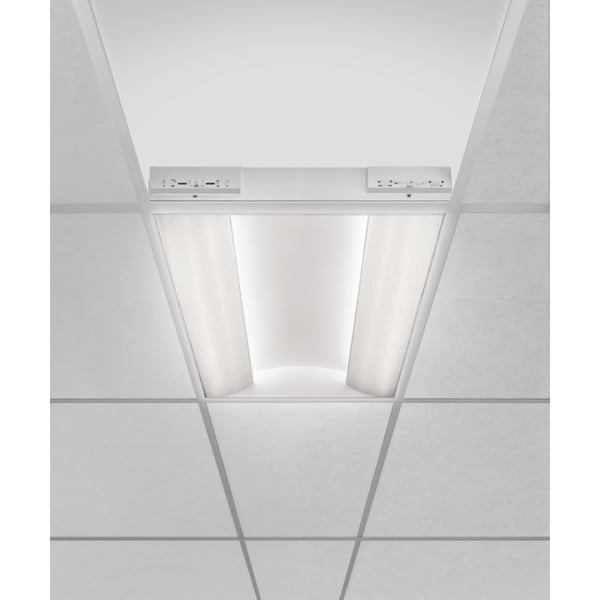

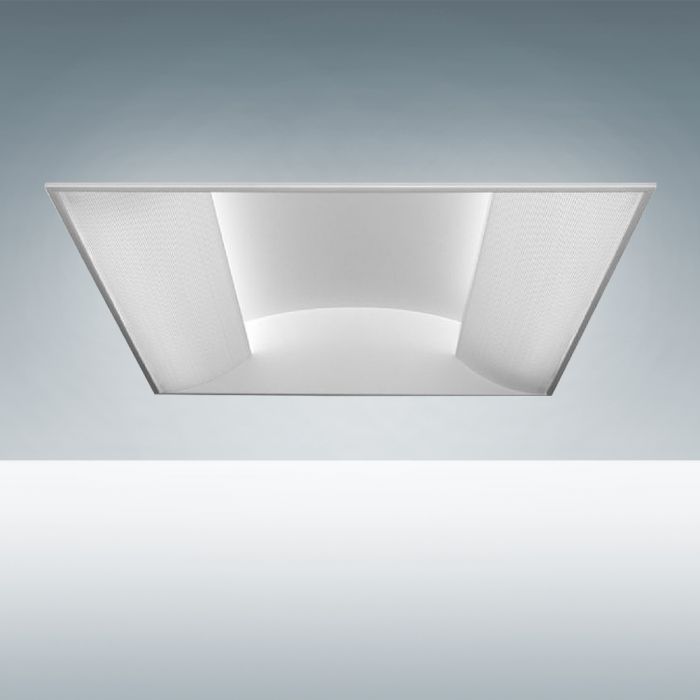

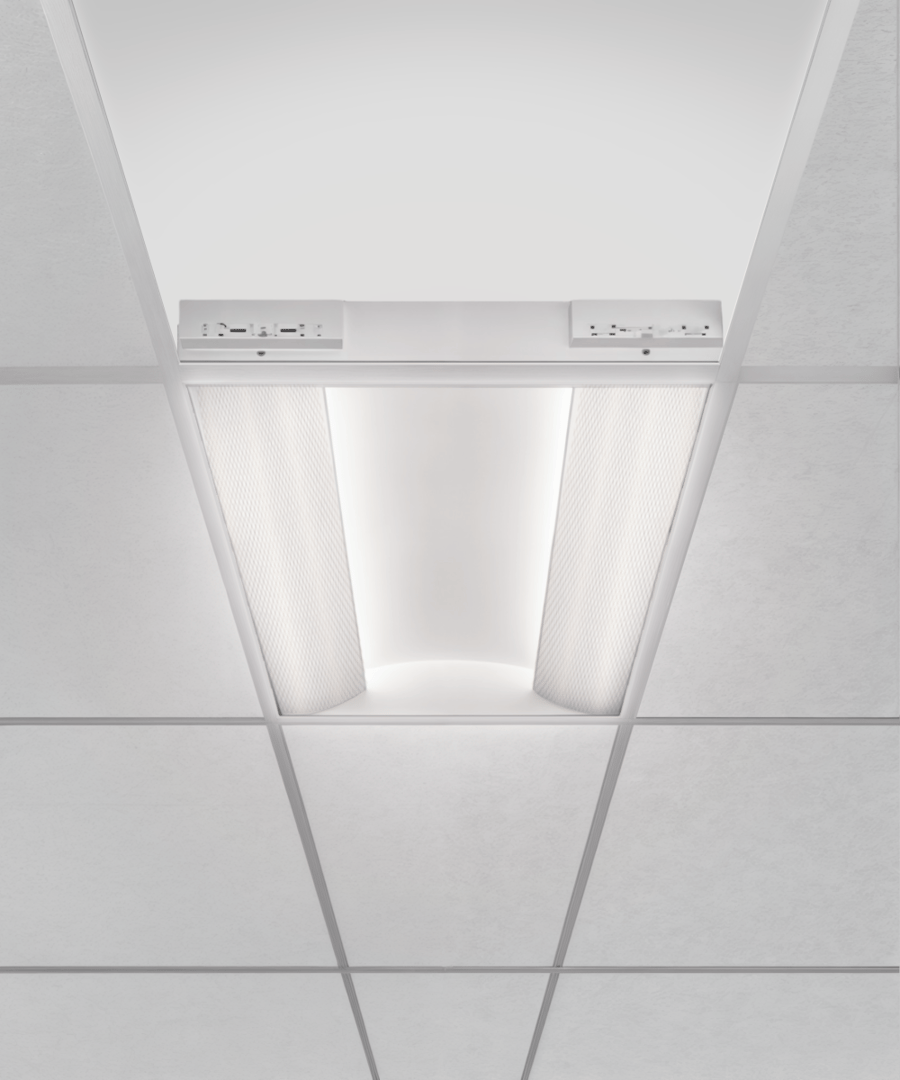

Alcon Lighting 14080 Prestige Architectural LED Recessed Side Basket Direct Light Troffer
NOTE: given the nature of built-to-order products, we cannot guarantee lead-times. Occasional back-order of components (i.e. LED drivers, diodes, and/or other electrical components) can sometimes lead to delays in assembly. Estimated ship dates are, by definition, not guaranteed.
The Abright Architectural LED Troffer and Parabolic Fixture Specification Grade light fixture is designed to reduce glare and provide soft, dispersed illumination that is highly efficient and cost-saving with easy installation. The Abright Architectural LED Troffer is ideal for commercial and institutional environments.
AVAILABLE SIZES
2x2 | W 23.93” x L 23.75” x D 5.5”
2x4 | W 23.93” x L 47.75” x D 5.5”
1x4 | W 11.94” x L 47.75” x D 5.5”
FEATURES
Construction: Die-formed, cold-rolled, heavy gauge steel housing; Corrosion Resistant; IC Rated
Finish: White powder coated
Reflectors: Textured matte white
Lens: White acrylic lens and perforated metal basket
Mounting: Recessed mount in expose T-Bar ceilings Suitable for direct insulation contact
Operating Temperature: -4°F ~ 122°F
Power Factor: >0.95 THD: <20
Listings: Suitable for Damp Locations
Warranty: 5 Years Carefree for Parts & Components (Labor Not Included)
| Manufacturer | Alcon Lighting |
|---|---|
| SKU | 14080 |
| Return Policy | Assembled to Order. A 15% Restocking Fee May Apply. |
| Technology | LED |
| Regulations | UL Listed, cUL Listed, Assembled in the USA |
| Voltage | 120V - 277V |
| Color Temperature | 3000K Warm White, 3500K Soft White, 4000K Cool White, 5000K Day Light |
| CRI | 80+ |
| Features | 0-10V Dimming, ELV Dimming, Triac Dimming, Emergency Backup Battery |
| Product Type | LED Troffers |
| Lumen Output | 100-2,499 Lumens, 2,500-4,900 Lumens |
| Lumen Output Minimum | 2133 Lumens |
| Lumen Output Max | 4214 Lumens |
