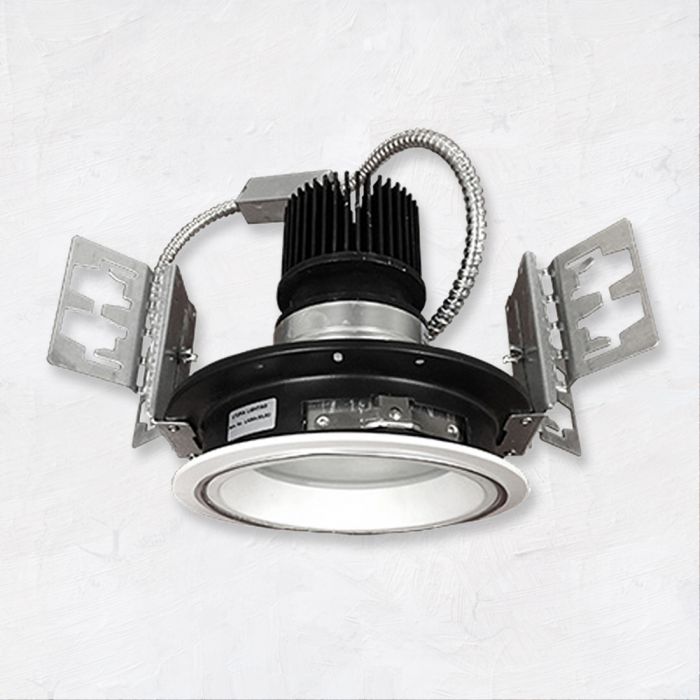

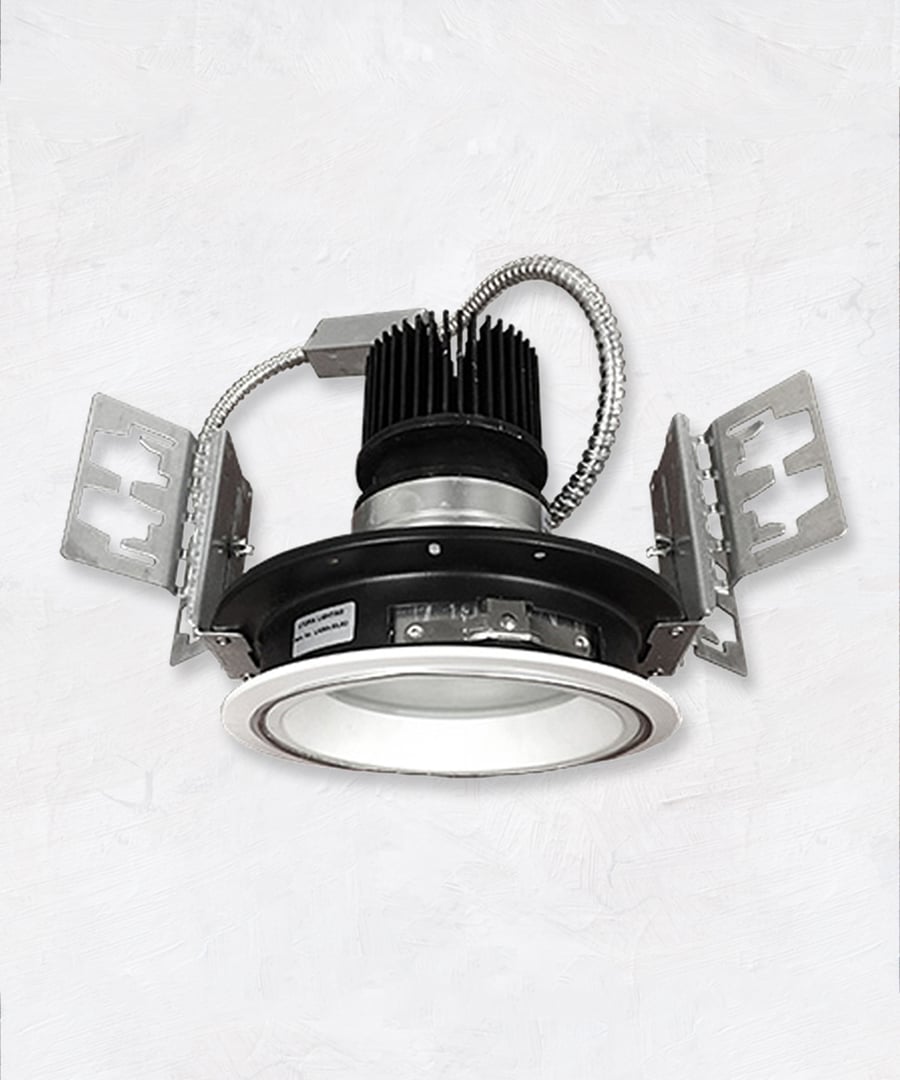

Alcon Lighting 14132-8 Mirage Architectural and Commercial LED New Construction Frame Recessed Down Light - 8"
For specification sheet options that don’t appear as selections below, please call (877) 733-5236.
NOTE: We cannot guarantee lead times for built to order products. Occasional backorder of components (i.e., LED drivers, diodes and/or other electrical components) may lead to assembly delays. Be assured, Alcon Lighting is 100 percent committed to meeting and/or exceeding lead time estimates.
|Return Policy||Assembled to Order. A 50% Restocking Fee May Apply.|
|Regulations||ETL , CA Title-24 , Assembled in the USA, Buy American Act, LM79 Tested|
|Color Temperature||2700K Warm White, 4000K Cool White, 5000K Day Light|
|Housing Size||3 Inch|
|Features||Emergency Backup Battery|
|Mount Type||Recessed Trimless|
|Diameter||8" | 8 Inch|
|Lumen Output||1200 - 2199 Lumens, 2200 - 3499 Lumens, 3500 - 4999 Lumens, 5000 - 7499 Lumens|
|Lumen Output Minimum||1458 Lumens|
|Lumen Output Max||7070 Lumens|
|Wattage||16 Watts, 25 Watts, 38 Watts, 50 Watts, 70 Watts, 100 Watts|
|Beam Spread||60° Wide Flood|
The Mirage Architectural LED New Construction Frame Recessed Down Light delivers energy efficient and clear light to commercial, hospitality and residential interior lighting applications. Our modern profiles and stylish designs offer excellent direct lighting and exceptional performance and versatility in offices, classrooms, conference rooms, museums, retail outlets, hotels, restaurants, and more.
Architectural - Heavy Gauge Die Formed Galvanized Steel Mounting Frame / Open Conical Shape Reflector
Commercial - Galvanized Steel Plaster Frame
Mounting: Non-insulated ceilings or where insulation can be kept 3” from all side of housing
Architectural - Vertically Adjustable Brackets for conduit or C channel
Commercial - Bar Hanger for T-Bar
Ceiling Thickness: 1-1/2"
Universal Dimming system that works with most 3-Wire ELV, 2-Wire Incandescent and 5-Wire 0-10V fluorescent dimmers
Junction Box: Galvanized Steel with (7) 1/2" Knockouts, (4) Pryouts, Snap-On cover
Protections: Thermal, Surge, Output Open Load, Over-Current and Short-Circuit, and Over-Temperature with Auto Recovery
Electrical: Interfaces with Fire Alarm Panel or Security System
Power Factor: > .9
Life: 50,000 Hours L70
Warranty: 5 Years Carefree for Parts & Components (Labor Not Included)
Listings: UL/CUL Listed for Damp Location with Covered Ceiling
UL/CUL Wet Location Listed
