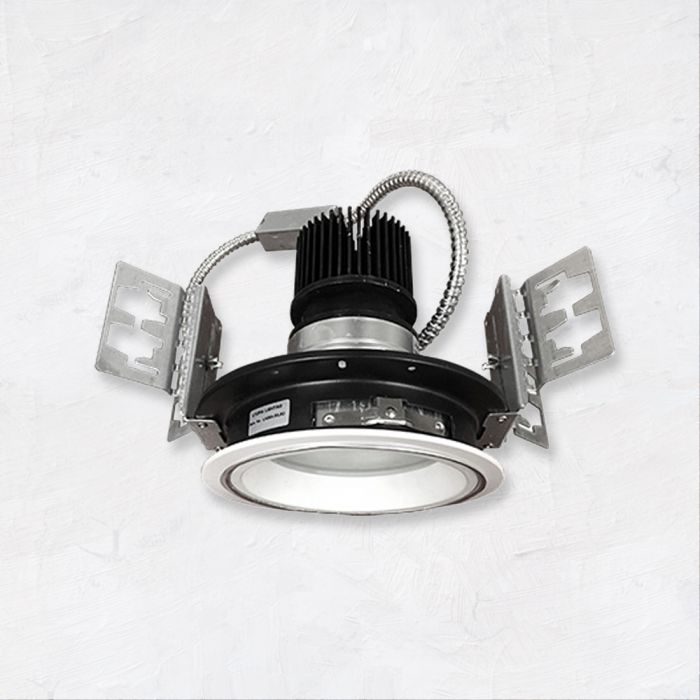

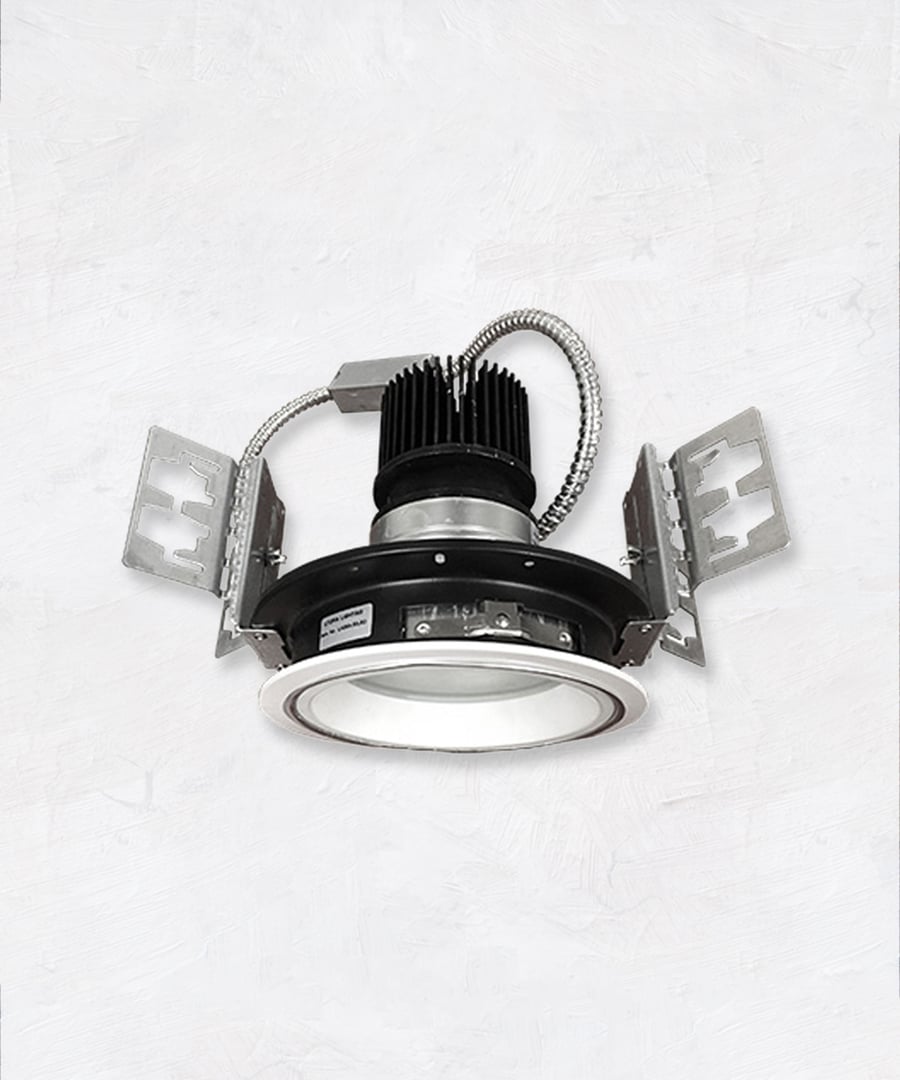

Alcon Lighting 14132-4 Mirage Architectural and Commercial LED New Construction Frame Recessed Down Light - 4"
$229.95
SKU
14132-4
In Stock Assembly Required
Lead Time
Ships in: 8-10 Weeks
NOTE: We cannot guarantee lead times for built to order products. Occasional backorder of components (i.e., LED drivers, diodes and/or other electrical components) may lead to assembly delays. Be assured, Alcon Lighting is 100 percent committed to meeting and/or exceeding lead time estimates.
Downloads
Other Products You Might Like
Product information
Details
The Mirage Architectural LED New Construction Frame Recessed Down Light delivers energy efficient and clear light to commercial, hospitality and residential interior lighting applications. Our modern profiles and stylish designs offer excellent direct lighting and exceptional performance and versatility in offices, classrooms, conference rooms, museums, retail outlets, hotels, restaurants, and more.
Construction:
Architectural - Heavy Gauge Die Formed Galvanized Steel Mounting Frame / Open Conical Shape Reflector
Commercial - Galvanized Steel Plaster Frame
Mounting: Non-insulated ceilings or where insulation can be kept 3” from all side of housing
Architectural - Vertically Adjustable Brackets for conduit or C channel
Commercial - Bar Hanger for T-Bar
Universal Dimming system that works with most 3-Wire ELV, 2-Wire Incandescent and 5-Wire 0-10V fluorescent dimmers
Ceiling Thickness: 1-1/2"
Junction Box: Galvanized Steel with (7) 1/2" Knockouts, (4) Pryouts, Snap-On cover
Protections: Thermal, Surge, Output Open Load, Over-Current and Short-Circuit, and Over-Temperature with Auto Recovery
Electrical: Interfaces with Fire Alarm Panel or Security System
Voltage: 120-277V
CRI: 90+
Power Factor: > .9
Life: 50,000 Hours L70
Warranty: 5 Years Carefree for Parts & Components (Labor Not Included)
Listings: UL/CUL Listed for Damp Location with Covered Ceiling
UL/CUL Wet Location Listed
More Information
| Manufacturer | Alcon Lighting |
|---|---|
| SKU | 14132-4 |
| Return Policy | Assembled to Order. A 50% Restocking Fee May Apply. |
| Technology | LED |
| Regulations | ETL, CA Title-24 , Assembled in the USA, Buy American Act, LM-79 Tested |
| Voltage | 120-277V |
| Color Temperature | 3500K Soft White, 4000K Cool White, 5000K Day Light, 2700K Warm White |
| CRI | 90+ |
| Lens Opacity | Frosted |
| Configuration | Complete Kit |
| Housing Size | 3 Inch |
| Features | Emergency Backup Battery |
| Mount Type | Recessed Trimless |
| Diameter | 4" | 4 Inch |
| Lumen Output | 1200 - 2199 Lumens, 2200 - 3499 Lumens, 3500 - 4999 Lumens |
| Lumen Output Minimum | 1458 Lumens |
| Lumen Output Max | 3904 Lumens |
| Wattage | 16 Watts, 25 Watts, 38 Watts, 50 Watts |
| Beam Spread | 60° Wide Flood |
