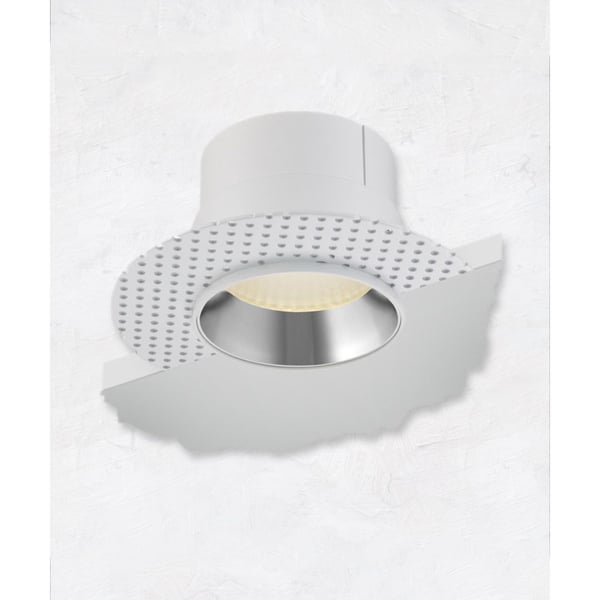

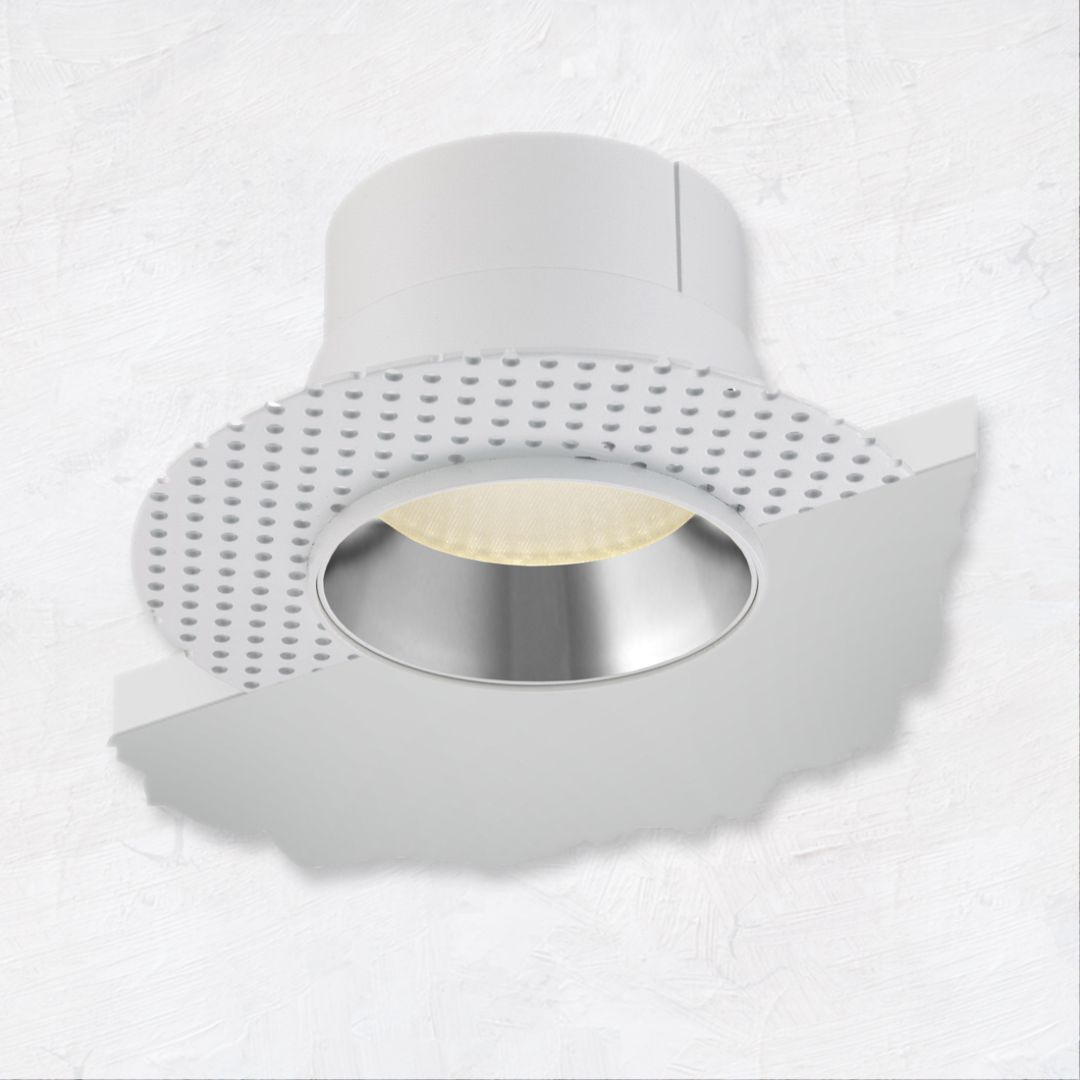

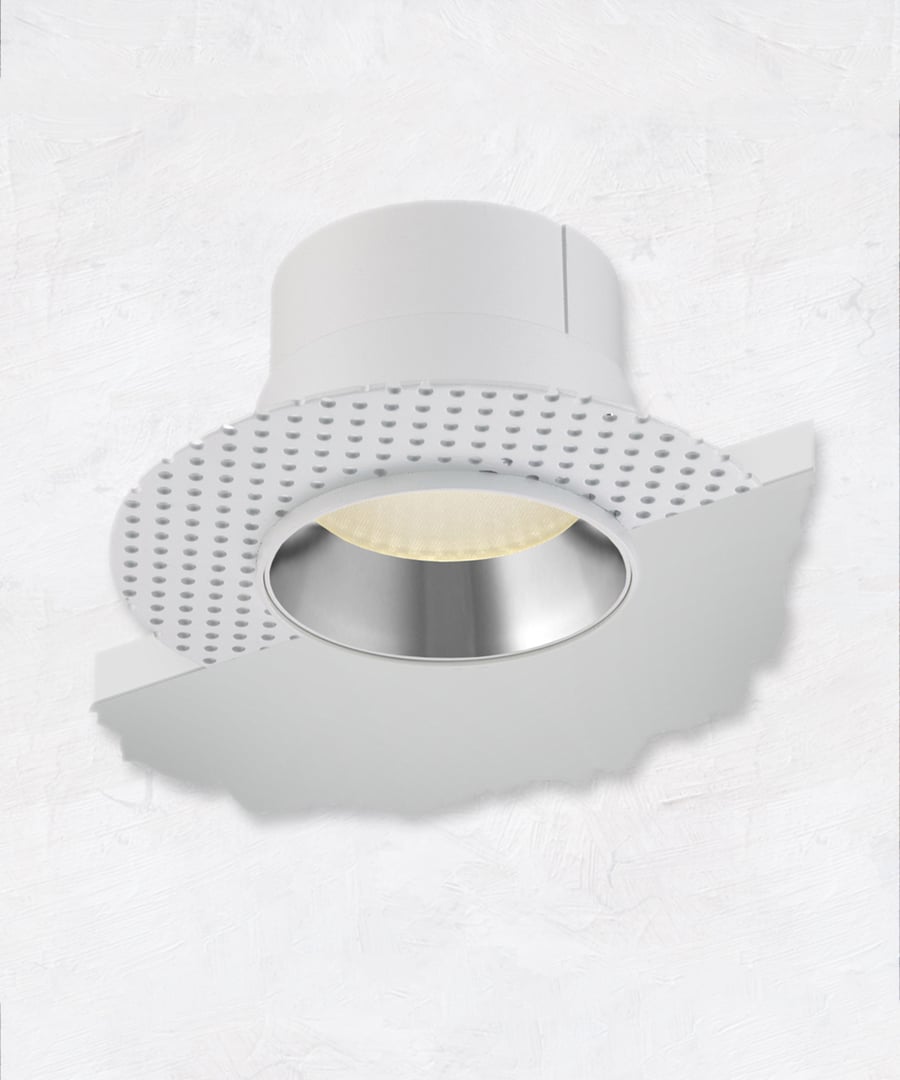

Alcon Lighting 14013-R Illusione 4 Inch Architectural LED Round Flanged Recessed Reflector Cone Light Fixture
Components In-Stock - Assembly Required
Lead Time
Built to Order: 2-4 Weeks
NOTE: We cannot guarantee lead times for built to order products. Occasional backorder of components (i.e., LED drivers, diodes and/or other electrical components) may lead to assembly delays. Rest assured, Alcon Lighting is 100 percent committed to meeting and/or exceeding lead time estimates.
SKU
14013-R
$399.95
Other Products You Might Like
Details
The Illusione 4 Inch Architectural LED Recessed Light Fixture provides a soft glow and warm ambiance while maintaining a strong lumen performance. The Illusione is an ideal option for commercial and high-end residential applications.
Construction: IC Rated Airtight Housing Rated for Direct Contact with Low to Medium Density Loosefill Blown and Rolled Insulation
Pre-Wired Housing with Die-Cast Adjustment Plate with Pre-Set Ceiling Thickness for Easy Installation in 1/2", 5/8", 3/4", and 1" Ceilings
Integral Thermal Protector
Installation: Housing Suitable for New Construction Installations
Housing: Adjustable Socket Plate Allows for Different Lamp Types
Mounting: (2) 24" Adjustable Hanger Bars with 90° Repositioning Ability
Junction Box: 16 Gauge Pre-Wired Galvanized Steel
32 Cubic Inch for Maximum of (8) #12 AWG Wires
Furnished with 3/4", 1" and Romex Knock-Outs
Lamp Equivalent: 75W A19, 50W PAR20 FL, 50W MR16 FL
Wattage: 19W
Lumens: 1200 lms
CRI: 80
Dimming: UNIDIM for ELV, TRIAC, and 0-10V Fluorescent Dimmers
Life: 50,000 Hours
Listings: ETL/CETL Listed
Suitable for Damp Locations
NYC Approved: Calendar #41937
Construction: IC Rated Airtight Housing Rated for Direct Contact with Low to Medium Density Loosefill Blown and Rolled Insulation
Pre-Wired Housing with Die-Cast Adjustment Plate with Pre-Set Ceiling Thickness for Easy Installation in 1/2", 5/8", 3/4", and 1" Ceilings
Integral Thermal Protector
Installation: Housing Suitable for New Construction Installations
Housing: Adjustable Socket Plate Allows for Different Lamp Types
Mounting: (2) 24" Adjustable Hanger Bars with 90° Repositioning Ability
Junction Box: 16 Gauge Pre-Wired Galvanized Steel
32 Cubic Inch for Maximum of (8) #12 AWG Wires
Furnished with 3/4", 1" and Romex Knock-Outs
Lamp Equivalent: 75W A19, 50W PAR20 FL, 50W MR16 FL
Wattage: 19W
Lumens: 1200 lms
CRI: 80
Dimming: UNIDIM for ELV, TRIAC, and 0-10V Fluorescent Dimmers
Life: 50,000 Hours
Listings: ETL/CETL Listed
Suitable for Damp Locations
NYC Approved: Calendar #41937
More Information
| Manufacturer | Alcon Lighting |
|---|---|
| SKU | 14013-R |
| Return Policy | Assembled to Order. A 50% Restocking Fee May Apply. |
| Technology | LED |
| Regulations | cETL Listed , Energy Star , Assembled in the USA, Buy American Act, LM80 Tested |
| Voltage | 120V - 277V, 120V |
| Color Temperature | 3000K Warm White, 3500K Soft White, 4000K Cool White, 2700K Warm White |
| CRI | 90+ |
| Configuration | Complete Kit |
| Housing Size | 4 Inch |
| Features | Emergency Backup Battery , Damp Location Rated |
| Mount Type | Recessed Flanged |
| Shape | Round |
| Product Type | Direct Downlight |
| Width | 3.75" |
| Length | 2.25" |
| Diameter | 3.75" |
| Lumen Output | 1200 - 2199 Lumens |
| Lumen Output Max | 1200 Lumens |
| Wattage | 19 Watts |
| Beam Spread | 45° Flood |
