Alcon 12100-10-R Linear Recessed LED Downlight

cUL CA Title-24 Assembled in the USA

Available SKU 12100-10-R

Lead Time
Ships-in: 2-4 Weeks

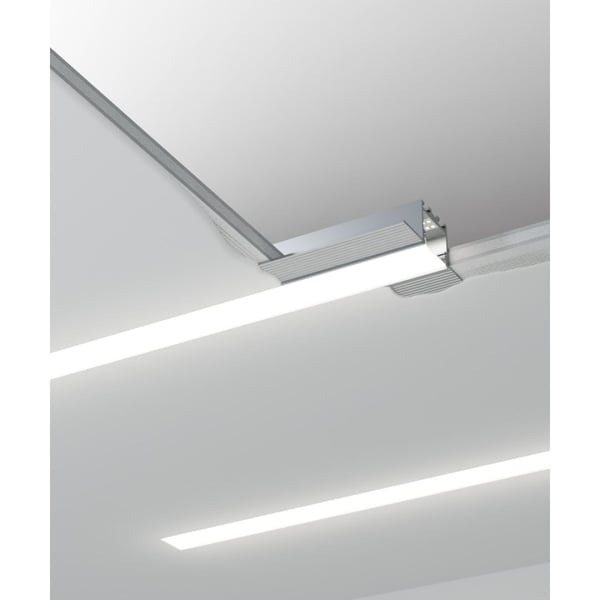

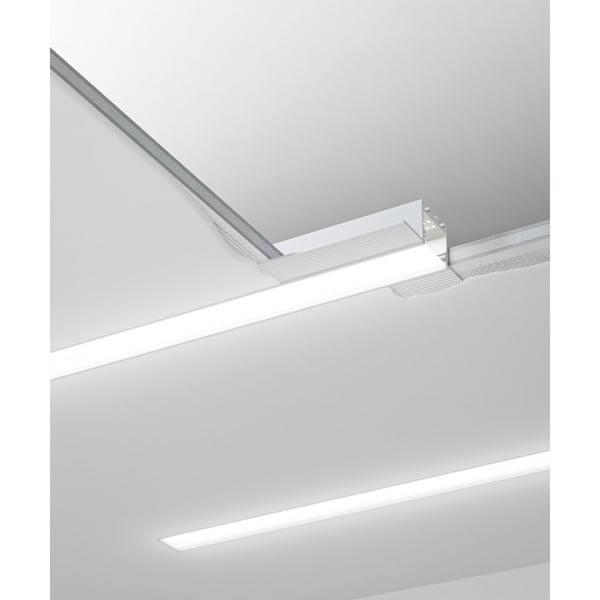

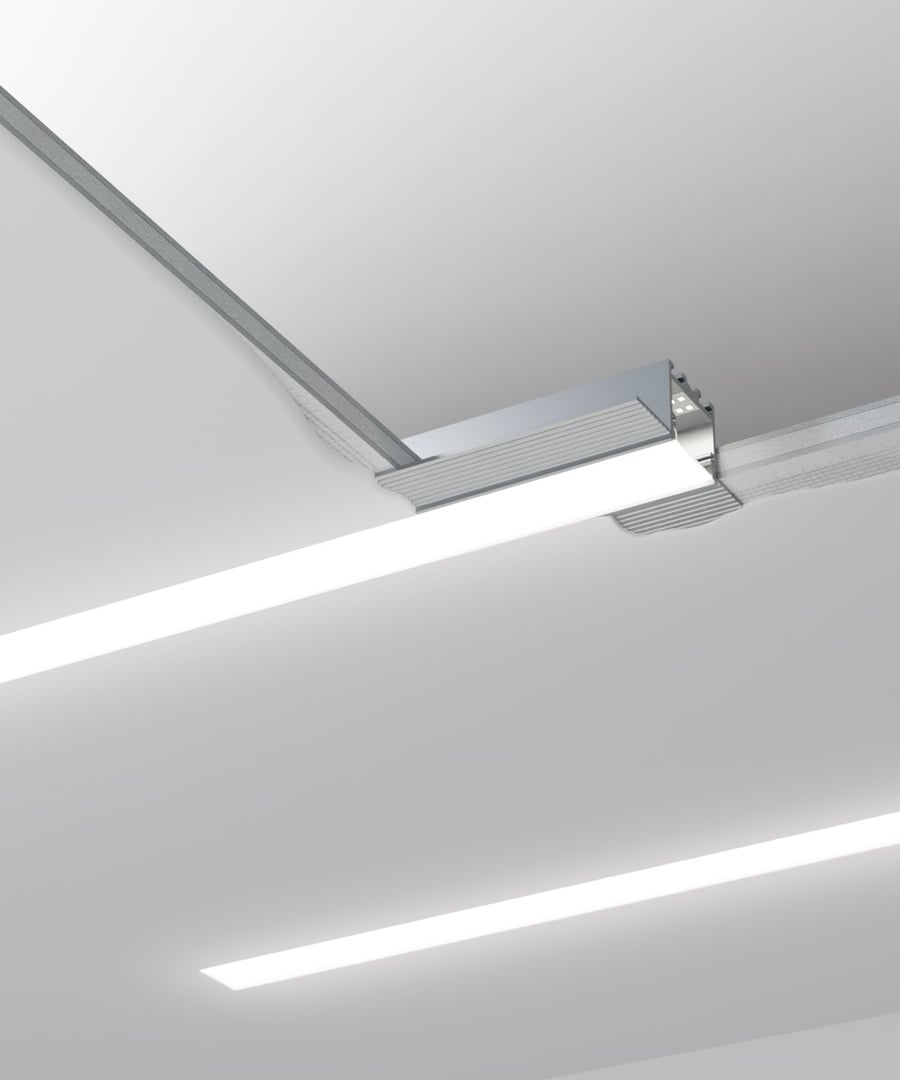

Our military-grade, field-cuttable aluminum light fixture will last a long time and can be installed in any drywall thickness. This commercial-grade lighting product includes a 1-inch wide, glare-free, snap-in lens in frosted acrylic for better distribution of light. The recessed downlight is designed with a modern aesthetic and is available in standard lengths of 2-foot, 4-foot, 6-foot, 8-foot and custom cuts of any length. In addition, the profile can be miter cut–in the field–to achieve desired shape design. It’s ideal for commercial and residential interiors. Black and silver flange finish available upon request. Any product length over 8' will include smaller units with seamless connectors.

Manufacturer
Alcon Lighting
SKU
12100-10-R
Lead Time
Ships-in: 2-4 Weeks
Return Policy
Assembled to Order. Non-Refundable.
Regulations
UL, cUL, CA Title-24 , JA8 Compliant, Assembled in the USA
Voltage
24V LED Fixture, 120-277V Triac, ELV, MLV and 0-10V Remote Driver
Finish
White
Color Temperature
2700K Warm White, 3000K Soft White, 3500K Neutral White, 4000K Cool White, 5000K Day Light
Housing Size
1 Inch
Features
0-10V Remote Dimming (Available upon request), Wet-Location Available
Mount Type
Recessed Trimless
Light Direction
Direct Downlight
Width
2.64"
Width
2"
Height
1"
Length
2 ft., 3 ft., 4 ft., 6 ft., 8 ft.
Lumen Output
100-2,499 Lumens, 2,500-4,900 Lumens, 5,000-9,999 Lumens
Lumen Output Minimum
500 Lumens per Foot (standard), 930 Lumen per Foot available.
Beam Spread
120°

Customize
