$559.95
SKU
11221-2D

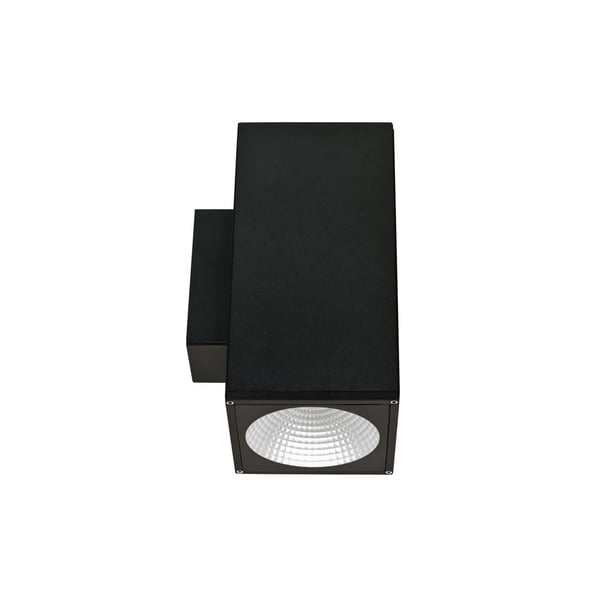

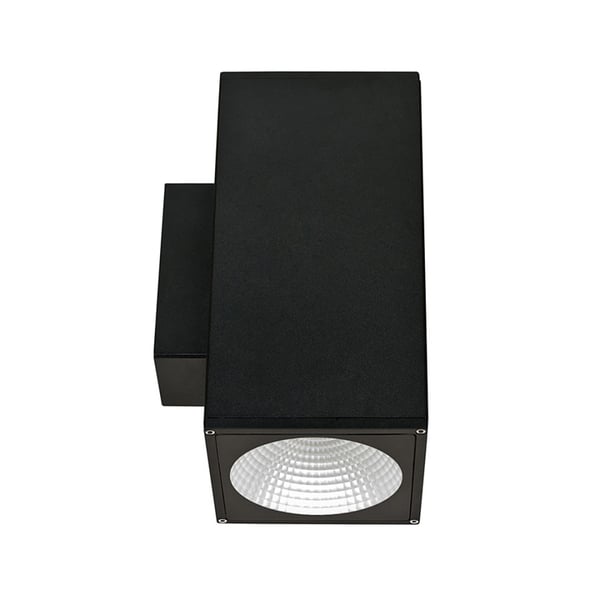

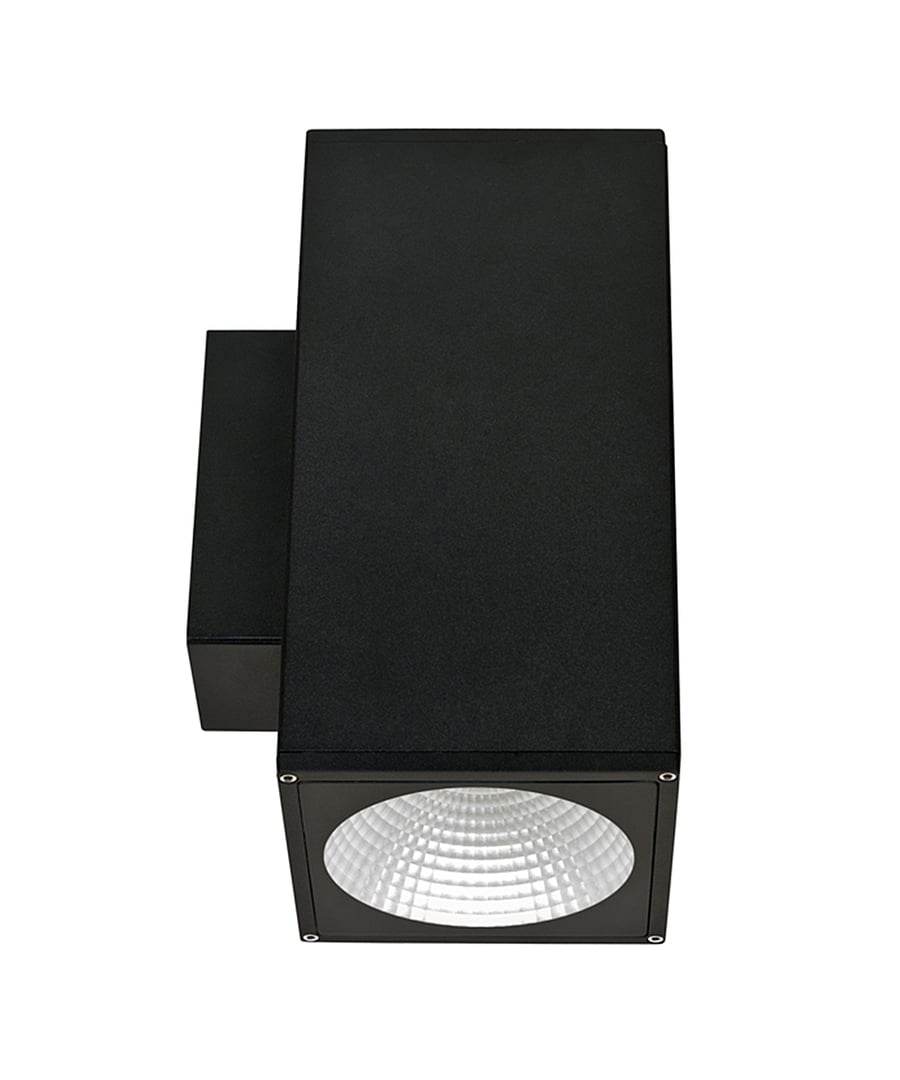

Alcon Lighting 11221-2D Pavo 6-inch, 2-Directional Square Wall Mount Architectural LED
$559.95
SKU
11221-2D
In Stock Assembly Required
Lead Time
Built to order: 2-4 Weeks
NOTE: We cannot guarantee lead times for built to order products. Occasional backorder of components (i.e., LED drivers, diodes and/or other electrical components) may lead to assembly delays. Be assured, Alcon Lighting is 100 percent committed to meeting and/or exceeding lead time estimates.
Downloads
Other Products You Might Like
Product information
Details
The double directional square wall mount serves a low-glare, versatile purpose. This product can be used for interior and exterior retail or commercial lighting. Our product’s dual reflector offers indirect and direct lighting by a single fixture.
W 5.94" x H 11.86"
Construction: Square One Piece High Grade Aluminum with corrosion-resistant finish with two (2) faceplates.
Light Engine: LED Chip-On-Board.
Lens: Tempered Glass and Silicone O-Ring.
Reflector: Glare-Free, One piece, Heavy Gauge Aluminum.
Mounting: Includes Bracket for Installation Directly to a
4" octagonal electrical junction-box.
Voltage: 120V (Non-Dimming), 120V/277V (Dimming)
CRI: 84+
Dimming: Universal Dimming System Compatible with
2-Wire TRIAC, 3-Wire ELV, and 5-Wire 0-10V Dimmers.
Life: L70 - 50,000 Hours.
Emergency: 90 Minutes Minimum, Remote Test Switch, Plate Cover, Junction Box Included. LED Battery Back-up available.
Listing: ETL/cETL Listed Suitable for Wet Location. Assembled in the US (IP65) Electrical: Electronic Direct Current Class 2 driver.
Warranty: 5 Years Carefree for Parts and Components (Labor not included). We recommend the use of surge protectors on the power entering LED Housings. Surge damage is not covered by warranty.
Compliancy: Dark Sky Compliant when fixture is pointing downward.
More Information
| Manufacturer | Alcon Lighting |
|---|---|
| SKU | 11221-2D |
| Additional options | Emergency Battery |
| Return Policy | Assembled to Order. Non-Refundable. |
| Technology | LED |
| Regulations | cETL Listed , cUL, Made in USA, IP65 Rated, LM80 Tested |
| Voltage | 120-277V |
| Color Temperature | 3000K Warm White, 4000K Cool White |
| Lens Opacity | Clear |
| Housing Size | 6 Inch |
| Features | Emergency Backup Battery , Wet Location Rated, Daylight Sensor |
| Mount Type | Wall |
| Product Type | Direct/Indirect |
| Width | 5.94" |
| Lumen Output | 1200 - 2199 Lumens |
| Lumen Output Minimum | 2000 Lumens |
| Lumen Output Max | 5200 Lumens |
| Wattage | 2x15 Watts, 2x22 Watts, 2x32 Watts |
| Beam Spread | Narrow Spot, Spot, Wide Flood |
