Model 11224-DIR

Alcon 11224-DIR Pavo Architectural LED 6 Inch Square Ceiling Light

By Alcon Lighting
$414.95

Built to order

, ships in: 3-7 business days
cULus cETLus Title 24 Title 24-JA8 Assembled in USA (ARRA) Emergency Backup Battery Wet-Location Rated
loader
Loading...

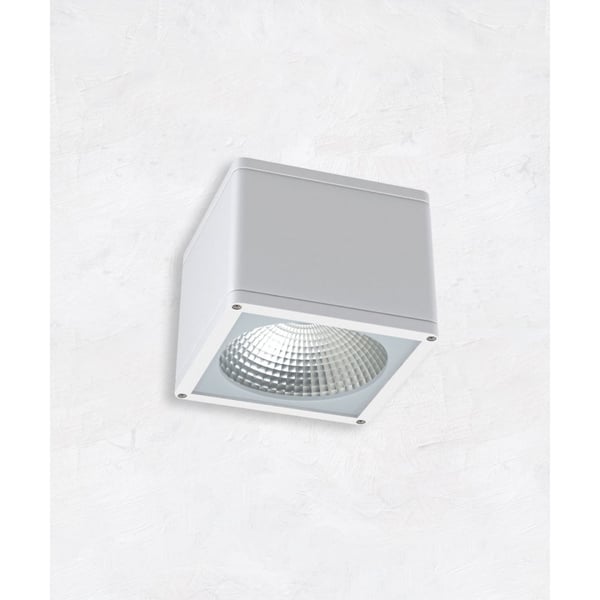

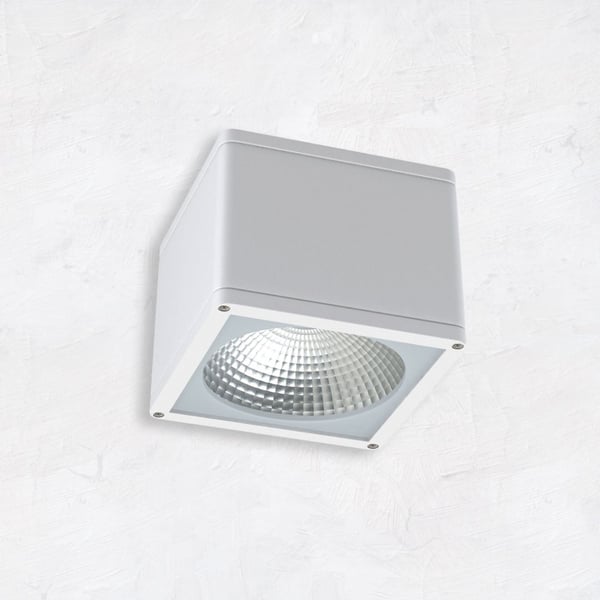

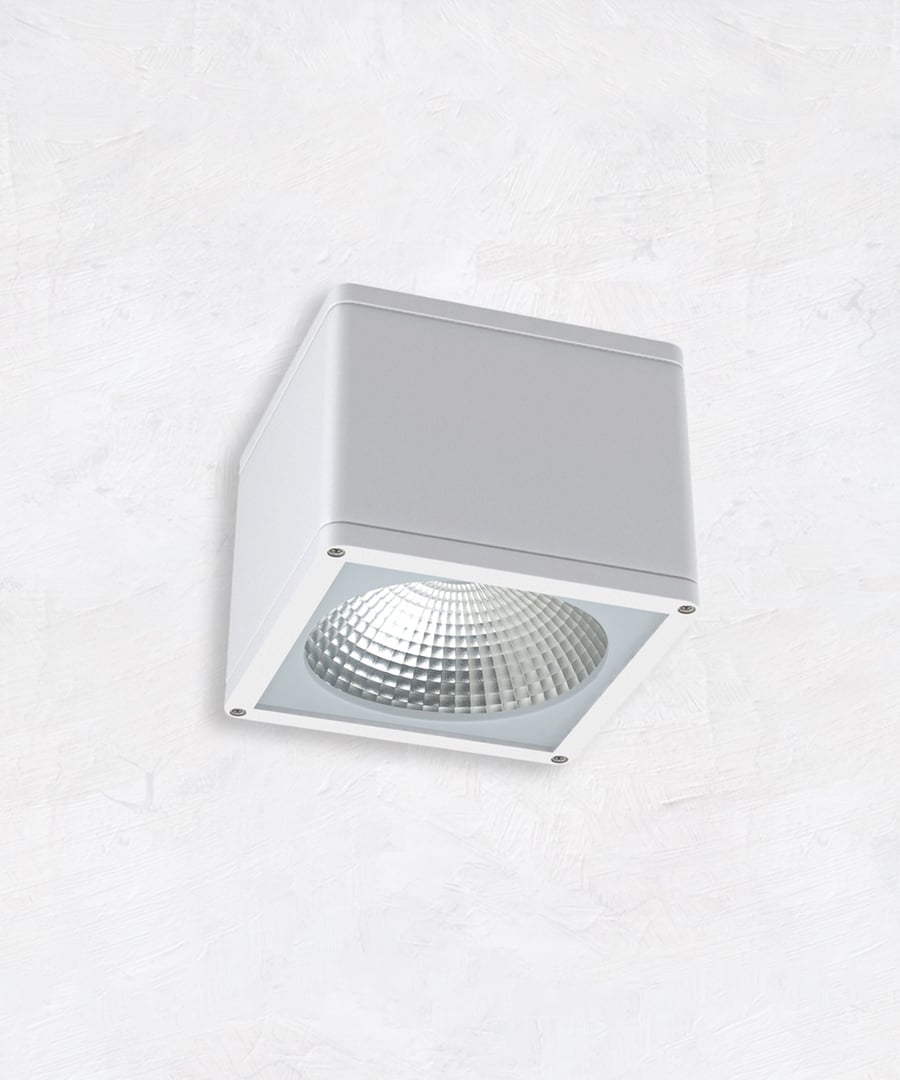

The 6-Inch Square Architectural Ceiling Downlight offers versatile, low-glare illumination for both indoor and outdoor commercial and retail environments. Designed to provide dramatic accent lighting from above, the Pavo is available in four output packages—10W (1000 lm), 15W (1500 lm), 22W (2200 lm), and 30W (2600 lm)—with a standard 60° beam spread. Optional beam angles include 10°, 20°, 45°, asymmetric (30° x 60°), and wall wash configurations. Standard with universal dimming (Triac/ELV/0-10V), a non-dimming 120V option is also available upon request. Additional options include a frosted lens, external emergency battery backup, and daylight sensor, making the Pavo an ideal solution for dynamic commercial lighting needs.
  • Manufacturer
    Alcon Lighting
  • Model
    11224-DIR
  • Lumen output
    1000 lm, 1500 lm, 2200 lm, 2600 lm
  • Lead Time
    Ships in: 3-7 Business Days
  • Return Policy
    Built to order. Restocking fees apply.
  • Qualifications
    cULus, cETLus, Title 24 , Title 24-JA8, Assembled in USA (ARRA)
  • Features
    Daylight Sensor, Emergency Backup Battery, Wet-Location Rated
  • Dimming
    0-10V, ELV, TRIAC
  • Voltage
    120-277V
  • Finish
    White, Black, Silver, Bronze
  • CCT
    2700K, 3000K, 3500K, 4000K, 5000K
  • CRI
    90+
  • Mounting
    Surface
  • Light Direction
    Direct Downlight
  • Shape
    Square
  • Beam Spread
    10°, 20°, 45°, 60°, 30° x 60°
