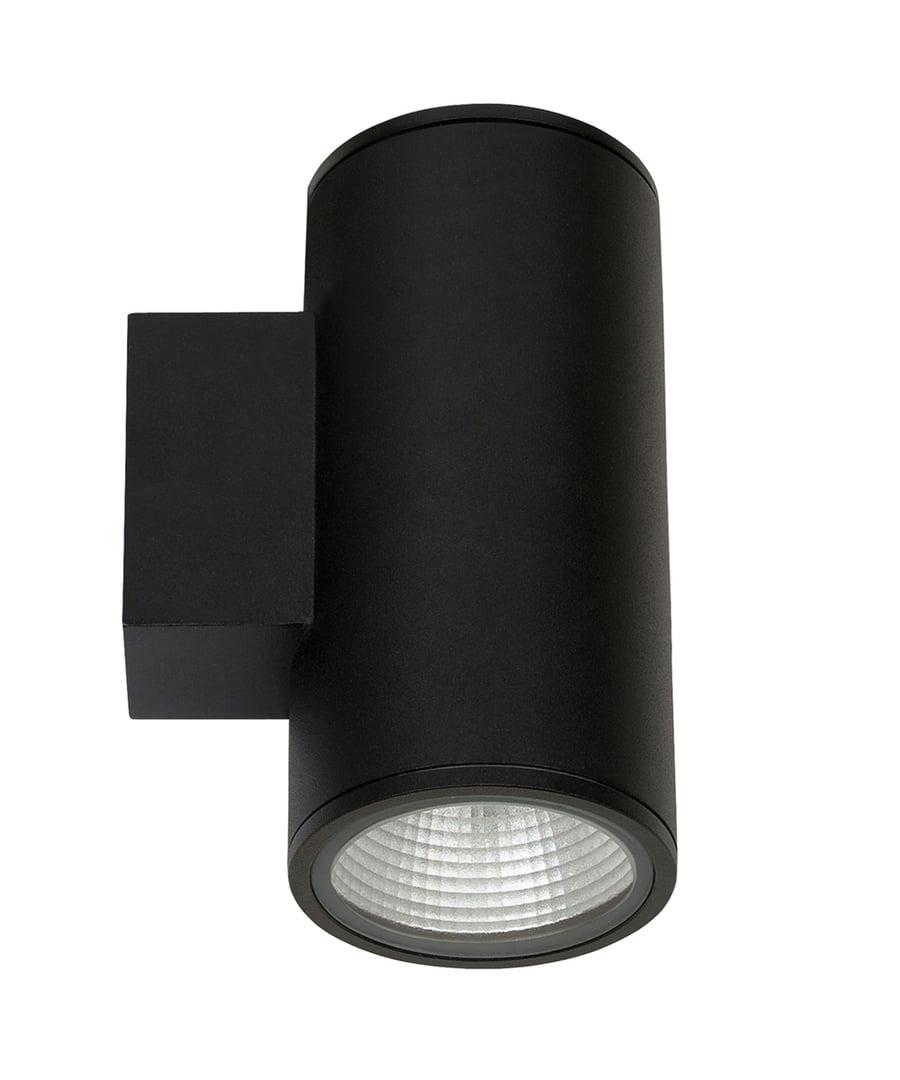

Alcon Lighting 11226-4-2D Pavo Architectural LED 4 Inch Round Cylinder 2-Direction Wall Mount Light Fixture
For specification sheet options that don’t appear as selections below, please call (877) 733-5236.
NOTE: We cannot guarantee lead times for built to order products. Occasional backorder of components (i.e., LED drivers, diodes and/or other electrical components) may lead to assembly delays. Be assured, Alcon Lighting is 100 percent committed to meeting and/or exceeding lead time estimates.
Manufacturer | Alcon Lighting |
---|---|
SKU | 11226-4-2D |
Return Policy | Assembled to Order. Non-Refundable. |
Regulations | CETL listed, cUL, Assembled in the USA, IP65, LM80 Tested |
Voltage | 120-277V |
Finish | White, Black |
Color Temperature | 4000K Cool White |
Lens Opacity | Clear |
Housing Size | 4 Inch |
Features | Emergency Backup Battery, Wet Location Rated |
Mount Type | Wall |
Product Type | Direct/Indirect |
Diameter | 3.56" |
Lumen Output | 600 - 1199 Lumens |
Lumen Output Minimum | 2000 Lumens |
Lumen Output Max | 3000 Lumens |
Wattage | 2x15 Watts, 2x22 Watts |
Beam Spread | Narrow Spot, Spot, Wide Flood |
The Pavo Architectural LED Cylinder 2-Direction Wall Mount Light Fixture is a versatile low glare fixture that can be used indoor and outdoor in commercial or retail settings with dual reflectors that allow for direct and indirect lighting. The Pavo is used to accent and create dramatic effects while providing a great source of lighting.
The specification grade decorative Pavo Architectural LED Cylinder Wall Sconce delivers continuous clean lines and clear Cylinder Light to commercial, hospitality and residential interior or exterior lighting applications. Our modern, slim profiles and stylish Outdoor Wall Sconce designs offer excellent direct lighting, indirect lighting, exceptional performance and versatility in offices, classrooms, conference rooms, museums, retail outlets, hotels, restaurants, and more.
W 3.56" x H 8.69"
Construction: Round one piece high grade aluminum extrusion, end cap, faceplate, and a mounting plate
Tamper Resistant
Corrosion Resistant
Universal Dimming system that works with most 3-Wire ELV, 2-Wire Incandescent and 5-Wire 0-10V fluorescent dimmers
Light Engine: LED Chip-On-Board
Lens: Round one piece extruded aluminum with powder coat finish, clear tempered glass, and silicone o-ring
Reflector: Glare-free, one piece, heavy gauge aluminum
Mounting: Includes bracket for installation directly to a 3.5" octagonal electrical junction-box
Caution: Use of surge protectors recommended on the power entering LED Housings. Surge damage is not covered by warranty.
