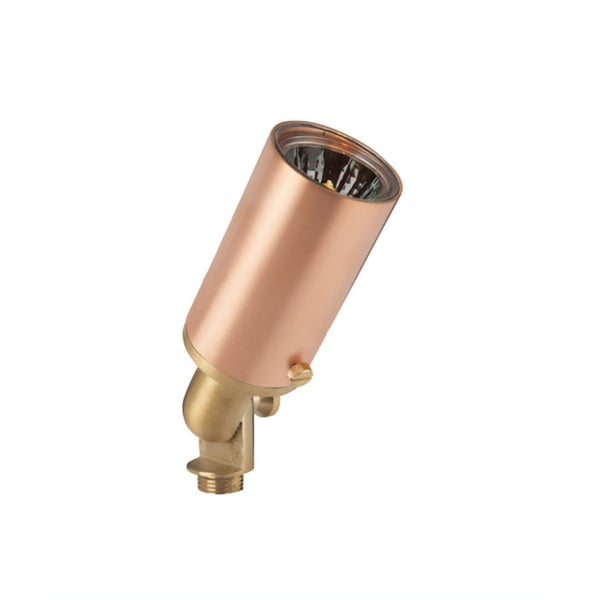

Alcon Lighting 9012 Modena Architectural Landscape LED Low Voltage Directional Uplight Fixture
In stock
Lead Time
Built to Order: 1-2 Weeks
NOTE: We cannot guarantee lead times for built to order products. Occasional backorder of components (i.e., LED drivers, diodes and/or other electrical components) may lead to assembly delays. Be assured, Alcon Lighting is 100 percent committed to meeting and/or exceeding lead time estimates.
SKU
9012
$115.95
Other Products You Might Like
Add Parts & Accessories
Details

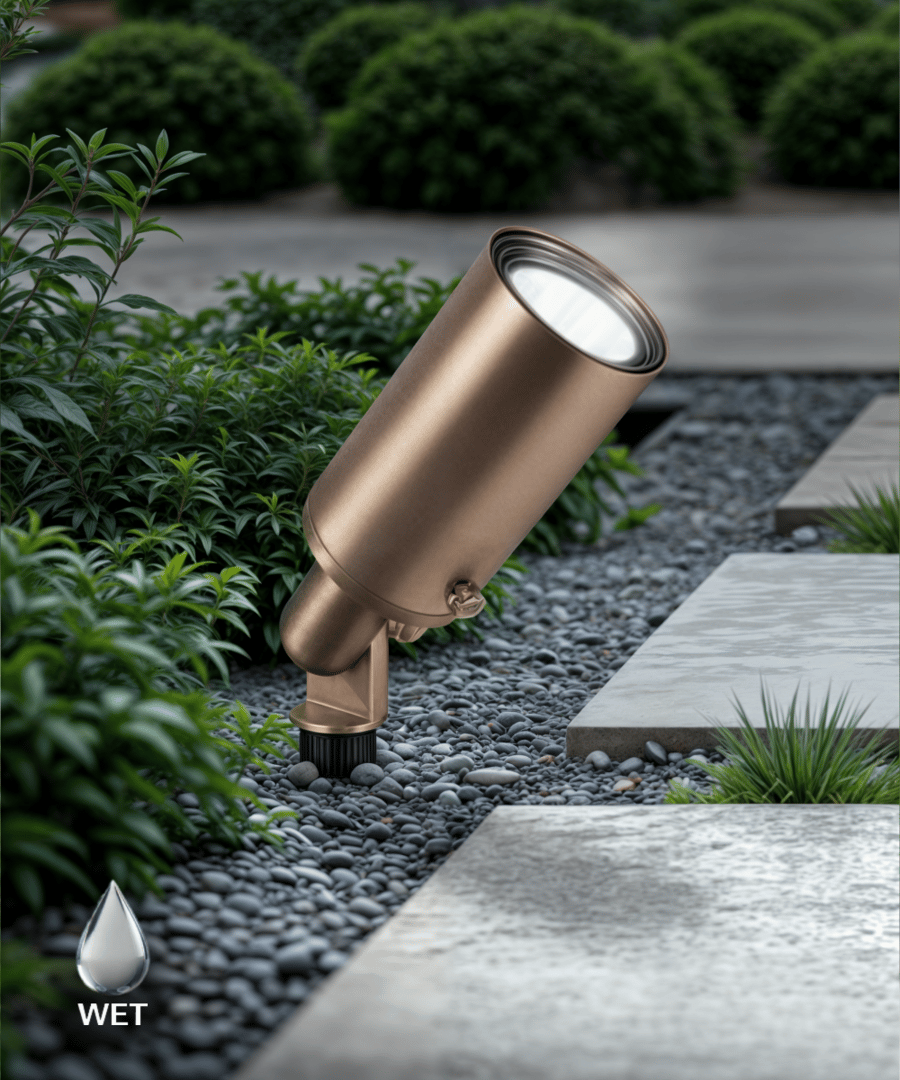

The Alcon Lighting Modena Architectural LED Directional Up Light Fixtures features naturally etched finishes capable of withstanding the test of time. The Modena Directional Uplights are ideal for architectural landscape lighting applications.
L 6.25" x Dia 2.25"
Construction: Corrosion Resistant Solid Copper
Finish: Raw Copper
Lens: Clear and heat resistant tempered flat glass
Wiring: Prewired with a 3' 18-2 SPT2-W direct burial cord
Socket: Spring loaded top grade adjustable ceramic bi-pin
Gasket: Silicone double gasket for water tight seal
Knuckle: Adjustable cast brass with thumb screw and 1/2" NPT threaded male hub
Mounting: 1/2" NPT threaded female hub (1/2" NPT Spike included)
Electrical: Remote 12V transformer required (Not included)
Halogen Equivalent: MR16, 25W or 50W
L 6.25" x Dia 2.25"
Construction: Corrosion Resistant Solid Copper
Finish: Raw Copper
Lens: Clear and heat resistant tempered flat glass
Wiring: Prewired with a 3' 18-2 SPT2-W direct burial cord
Socket: Spring loaded top grade adjustable ceramic bi-pin
Gasket: Silicone double gasket for water tight seal
Knuckle: Adjustable cast brass with thumb screw and 1/2" NPT threaded male hub
Mounting: 1/2" NPT threaded female hub (1/2" NPT Spike included)
Electrical: Remote 12V transformer required (Not included)
Halogen Equivalent: MR16, 25W or 50W
More Information
| Manufacturer | Alcon Lighting |
|---|---|
| SKU | 9012 |
| Return Policy | Assembled to Order. A 30% Restocking Fee May Apply. |
| Technology | LED |
| Regulations | ETL Listed, Assembled in the USA, Buy American Act |
| Finish | Copper |
| Color Temperature | 2700K Warm White |
| Base Type | Bi-Pin |
| Lens Opacity | Clear |
| Shape | Cylinder |
| Length | 6.25" |
| Diameter | 2.25" |
| Lumen Output | 100 - 599 Lumens |
| Lumen Output Minimum | 270 Lumens |
| Lumen Output Max | 450 Lumens |
| Wattage | 3.5 Watts, 5 Watts |
| Beam Spread | 15° Spot, 45° Flood, 60° Wide Flood |
