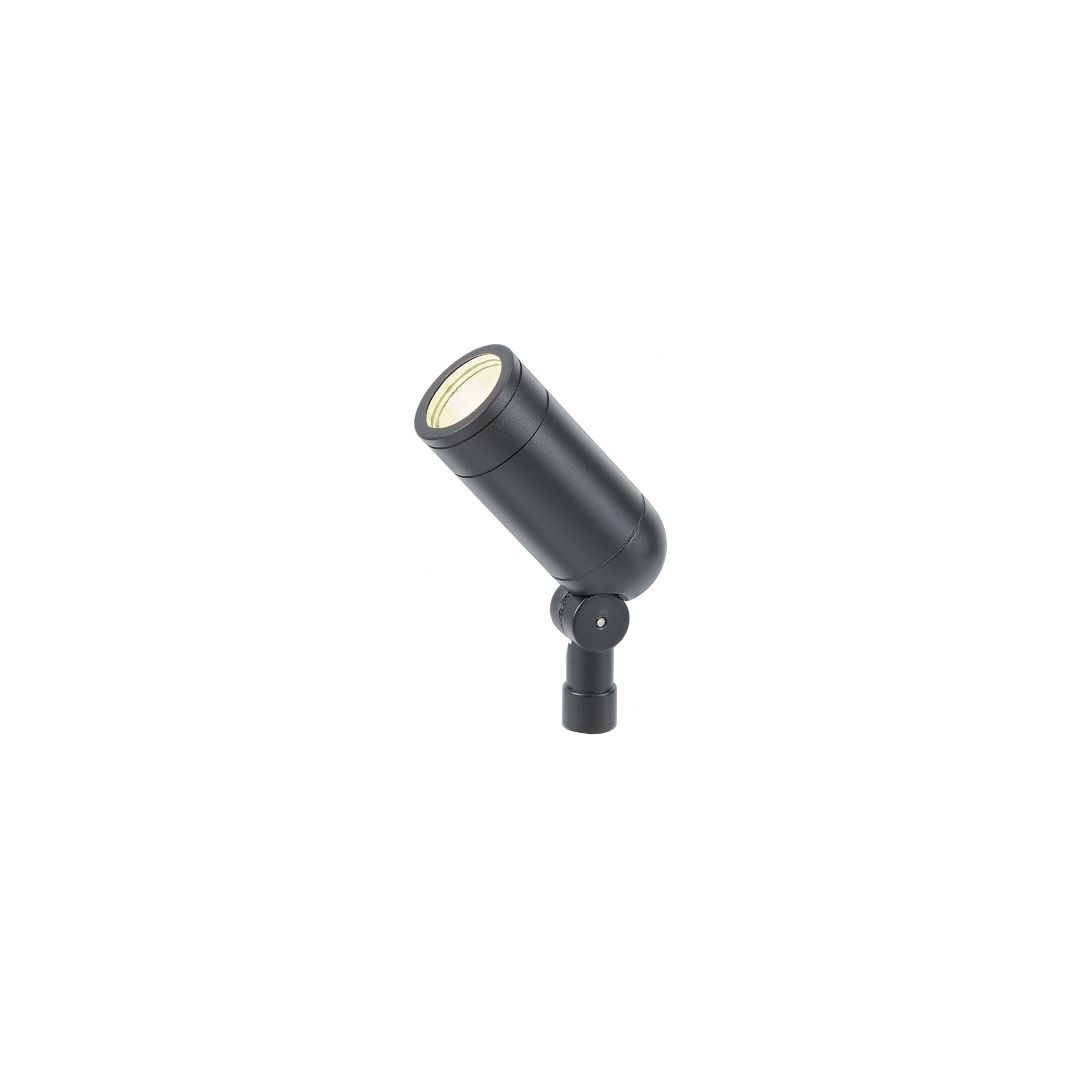

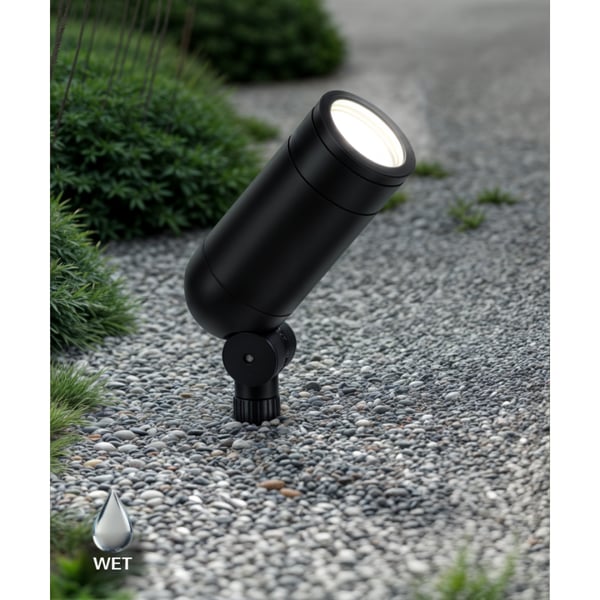

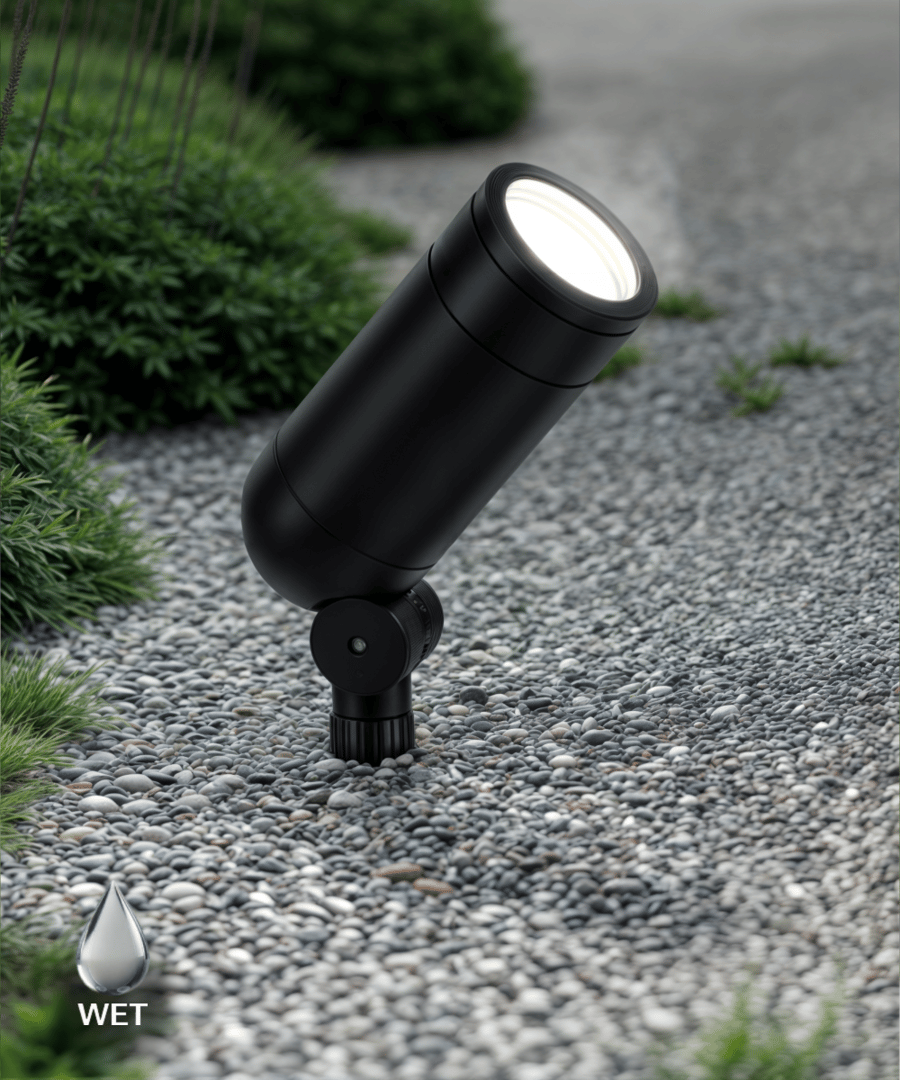

Alcon Lighting 9018 Padova Architectural LED Low Voltage Directional Uplight Landscape Lighting Fixture

ETL
by Alcon Lighting

Available Model 9018

Lead Time
QuickShip

The Alcon Lighting Padova Architectural LED Directional Up Light Fixtures features naturally etched finishes capable of withstanding the test of time. The Padova Directional Uplights are ideal for architectural landscape lighting applications.

L 5.5" x Dia 2.25"
Construction: Aluminum
Lens: Clear and heat resistant tempered glass
Wiring: Prewired with a 3' 18-2 SPT2-W direct burial cord
Socket: Top grade fixed ceramic bi-pin with retention clip
Gasket: Silicone gasket for water tight seal
Knuckle: Adjustable die-cast aluminum knuckle with Philips screw. 1/2" NPT threaded male hub on bottom
Mounting: 6" aluminum spike with 1/2" NPT threaded female hub (1/2" NPT Spike included)
Electrical: Remote 12V transformer required (Not included)



Manufacturer
Alcon Lighting
Model
9018
Lead Time
QuickShip
Return Policy
Assembled to Order. A 30% Restocking Fee May Apply.
Qualifications
ETL , Assembled in USA (ARRA)
Voltage
12V
Length
5.5"
Diameter
2.25"
Lumens per foot
100 - 599 Lumens
Lumen Output Minimum
180 Lumens
Wattage
2.5 Watts
Beam Spread
38°
