Model 12100-12-W-L

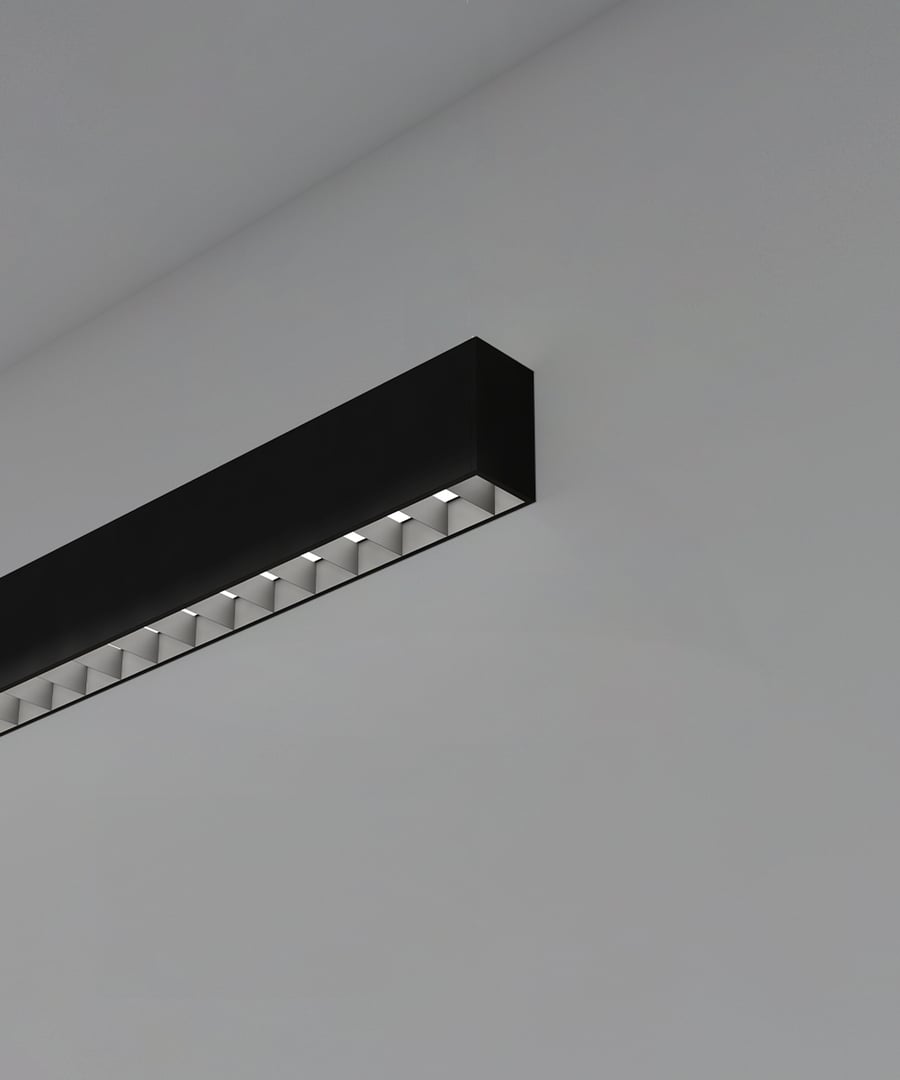

1-Inch Louver Linear LED Wall Light

By Alcon Lighting
$279.95

Built to order

, ships in: 3-7 business days
Oversized Product Spec Grade UL Damp Location Color Temperature Selectable Switch Wattage Selectable Switch Emergency Backup Battery
loader
Loading...
This 1-inch louvered linear LED wall light provides efficient, glare-reducing illumination, perfect for commercial and retail spaces. Available in 2 to 8-foot lengths with continuous run and geometric design options, the fixture offers selectable wattage and color temperature, with 0-10V dimming for precision control. The 2-position DIP switch enables light distribution from 100% downlight, delivering 700 lumens per foot to 25% up and 75% down, delivering 750 lumens per foot. The modern louvered design helps reduce glare while maintaining a clean, professional appearance.
  • Manufacturer
    Alcon Lighting
  • Model
    12100-12-W-L
  • Lead Time
    Ships in: 3-7 Business Days
  • Return Policy
    Built to order. Restocking fees apply.
  • Qualifications
    Spec Grade, UL, Damp Location
  • Features
    Color Temperature Selectable Switch, Wattage Selectable Switch, Light Direction Selectable Switch, Emergency Backup Battery
  • Dimming
    0-10V
  • Wattage
    10W/7.5W/5W per foot
  • Voltage
    120-277V
  • Finish
    White, Black
  • CCT
    3000K, 3500K, 4000K
  • CRI
    90+
  • Mounting
    Wall
  • Light Direction
    Direct/Indirect
  • Shape
    Linear
  • Beam Spread
    110°
  • Lumens per ft
    700 lm/ft
  • Wattage per ft
    10 W/ft, 5 W/ft, 7.5 W/ft
  • Length
    2 ft., 4 ft., 8 ft.
