Alcon 14121-DIR Illusione 2-inch Architectural LED Fixed-Round Trimless Recessed Downlight
$199.95
SKU
14121-DIR
In Stock Assembly Required
Lead Time
Built to Order: 2-4 Weeks
NOTE: We cannot guarantee lead times for built to order products. Occasional backorder of components (i.e., LED drivers, diodes and/or other electrical components) may lead to assembly delays. Be assured, Alcon Lighting is 100 percent committed to meeting and/or exceeding lead time estimates.
Other Products You Might Like
Product information
Details

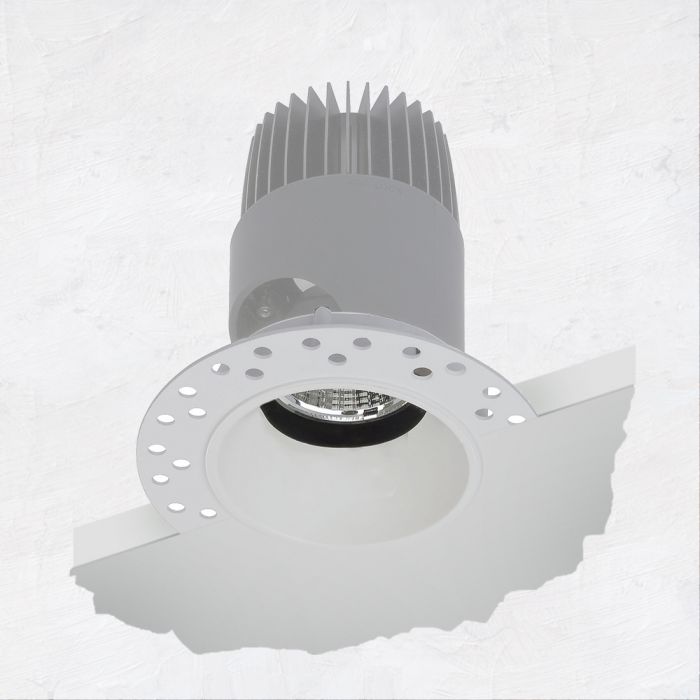

This trimless, 2" LED downlight includes a ring on the trim designed to be plastered over for a smooth, flush, trimless look. The durable, high-Color Rendering Index product features design and architectural specifications. Our lighting fixture is ideal for retail, hospitality, commercial and high-end residential settings.
Construction: Die-Cast Aluminum Housing Designed to Secure to Existing Sheet Rock or Panel Ceilings Up to 3" Thick
Trim Ring: Reflector and Trim Secure to Sheet Rock or Housing Frame with Drywall Screws Secured to Trim Ring
Optics: Chip On Board LED
Reflector: Multifaceted Specular Reflector
Dimming: Universal Dimming @ 120/277V and TRIAC @ 120V. Universal Dimming compatible with most 2-Wire TRIAC, 3-Wire ELV, and 5-Wire 0-10V dimmers.
Life: 50,000 Hours (L70)
Warranty: 5 Years Carefree for Parts and Components (Labor not included). A reduced LED lamp life and a Warranty void will result in installations where temperatures exceed 35°C
Listings: ETL/cETL listed to UL1598 & UL8750
Title 24 / JA8 Compliant Certified
NYC approved: Calendar #41937. CCEA (City of Chicago Environmental Air) Certified: Conforms to CCEA-200 with Section 18-27-300.22 and special requirements Section 14-20-210C-4. Suitable for damp and wet locations (Note: 14121-ADJ40 not wet location suitable).
More Information
| Manufacturer | Alcon Lighting |
|---|---|
| SKU | 14121-DIR |
| Return Policy | Assembled to Order. A 50% Restocking Fee May Apply. |
| Technology | LED |
| Regulations | ETL, cETL Listed , Assembled in the USA, Buy American Act |
| Voltage | 120-277V |
| Color Temperature | 2700K Warm White, 3500K Neutral, 4000K Cool White, 5000K Day Light, 3000K Soft White |
| CRI | 90+ |
| Features | Damp Location Rated, Wet Location Rated |
| Mount Type | Recessed Trimless |
| Product Type | Direct Downlight |
| Diameter | 2.5" |
| Lumen Output | 100-2,499 Lumens |
| Wattage | 15W, 22W |
| Beam Spread | 20° & Under (Spot), 20° to 35° (Narrow Flood), 36° to 60° (Flood) |
