Model 13101
Multi-Sized Architectural LED Track Light Head
By Alcon Lighting
Discontinued

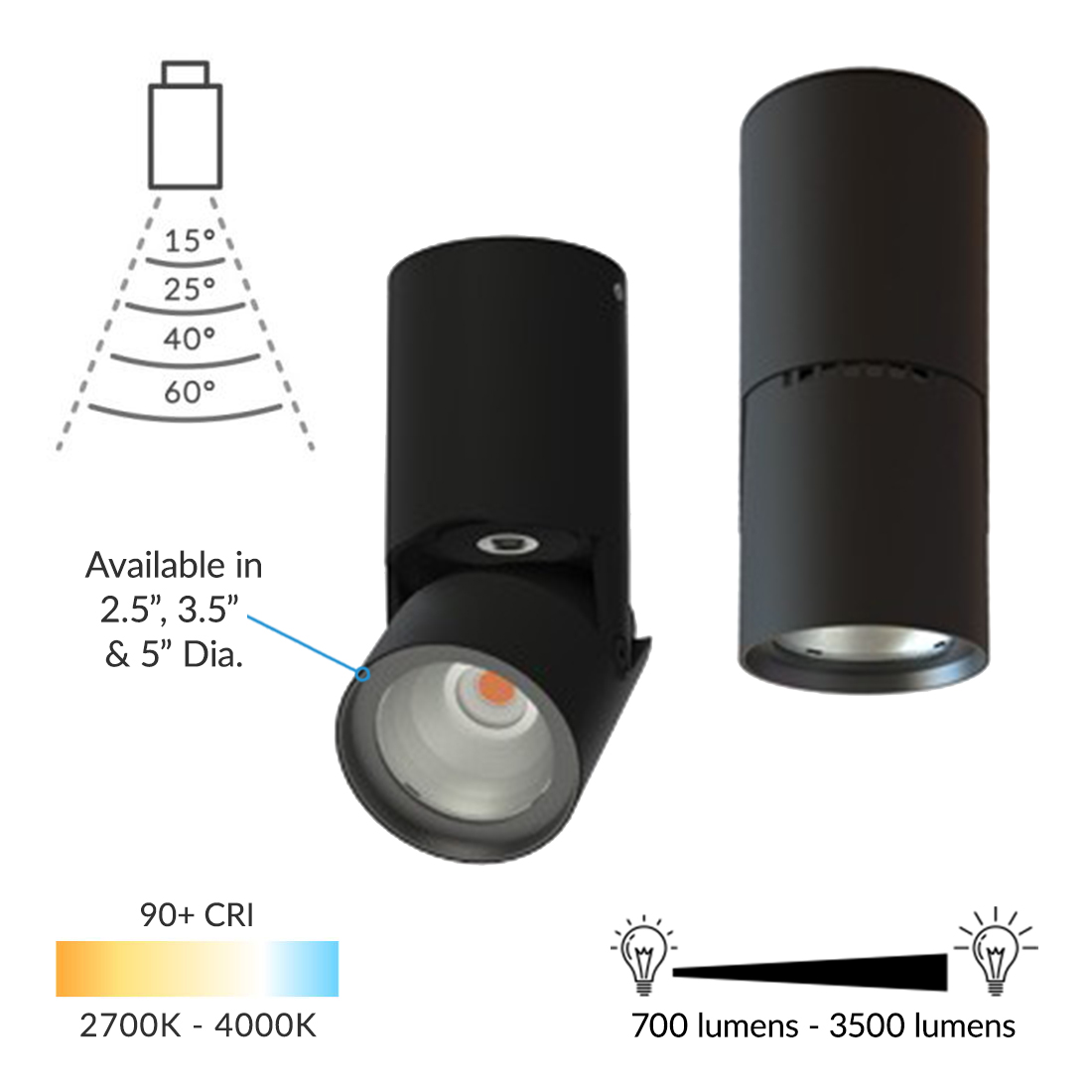

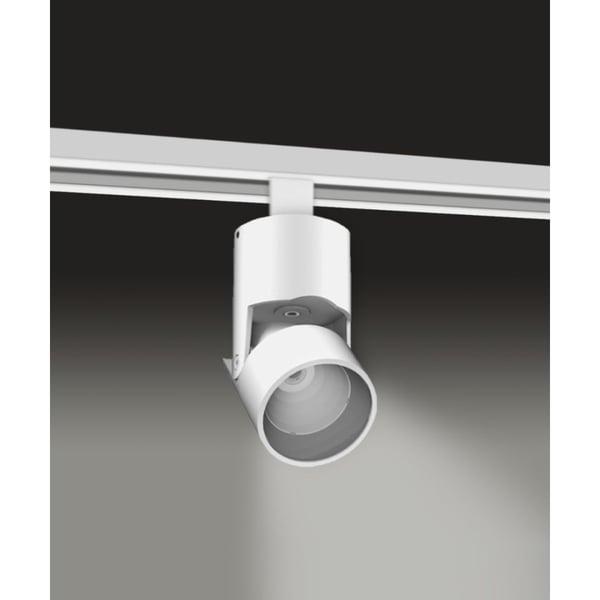

Our architectural LED track light is crafted from extruded aluminum with a die-cast aluminum swivel and a one-piece combination heat sink and reflector enclosure. This luminaire is compatible with all track types and offers precise adjustability with a maximum swivel angle of 85° off-center and a 325° rotation. The multifaceted specular reflector offers a 40º beam spread and comes standard with a gasketed glass lens—optional louver or frosted lenses available for glare reduction. Choose a static white color temperature or dim-to-warm (1850-3000K) color tuning for advanced lighting control.
Manufacturer
Alcon Lighting
Model
13101
Lumen output
700 lm, 1000 lm, 1500 lm, 2000 lm, 2500 lm, 3500 lm
Lead Time
Ships in: 3-7 Business Days
Return Policy
Built to order. Restocking fees apply.
Qualifications
Spec Grade, cETLus, Assembled in USA (ARRA)
Dimming
0-10V, ELV
Wattage
10-45 Watts
Voltage
120-277V, 120V, 277V
CCT
2700K, 3000K, 3500K, 4000K
CRI
90+
Mounting
Surface
Light Direction
Direct Downlight
Shape
Cylinder
Beam Spread
15º, 25º , 40º , 60°
Recessed Downlight Type
1 Light (Recessed Multiple)
Lumens per ft
911 lm/ft
Note:
2.5" DIA | 10W | 700L variant is NON-DIMMABLE
