Model 12117

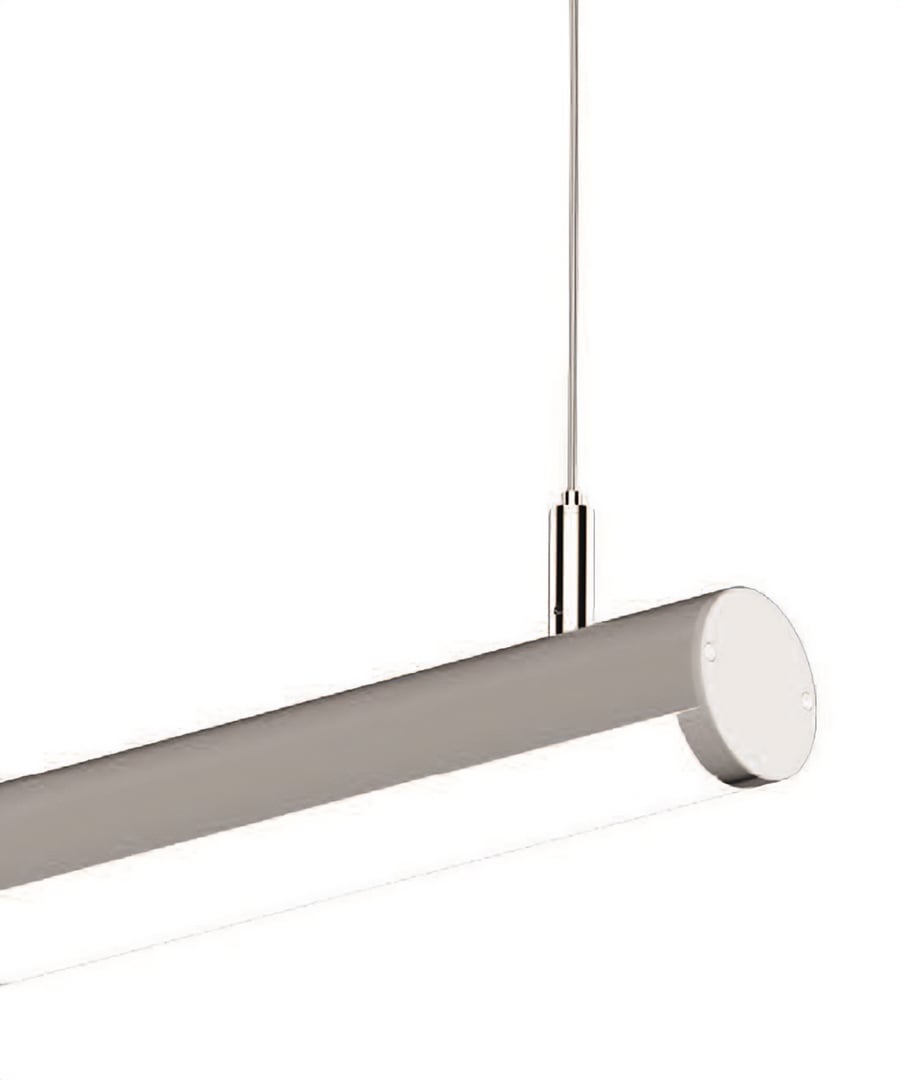

1-Inch Linear Pendant Tube LED Downlight
By Alcon Lighting
Discontinued
This ultra-slim 1-inch linear LED tube pendant delivers high 98+ CRI illumination with soft diffusion and visual comfort. Designed for seamless runs, the suspended tube light offers static white color temperatures from 2700K to 4000K and up to 937 lumens per foot. A frosted lens minimizes glare, while the anodized aluminum housing in silver, black or white blends effortlessly into refined interiors. Available in 4-foot and 8-foot lengths with custom sizing by request. Standard 5-inch powered and non-powered canopies are included; a 2-inch canopy option is also available. Fully compatible with 0-10V, TRIAC, ELV and MLV dimming. Perfect for modern offices, galleries, studios and upscale residential spaces. Specify to elevate ambient design with streamlined precision.
Manufacturer
Alcon Lighting
Model
12117
Lead Time
Ships-in: 7-14 Business Days
Return Policy
Built to order. Restocking fees apply.
Qualifications
Spec Grade, cULus, Title 24-JA8
Features
Continuous Run
Dimming
0-10V, ELV, TRIAC, MLV
Voltage
24V DC
Finish
White, Black, Silver, Custom RAL (Extended Lead Time May Apply)
CCT
2700K, 3000K, 3500K, 4000K
Mounting
Pendant
Light Direction
Direct Downlight
Shape
Linear
Length
48", 98.5"
Diameter
1.57"
Lumens per ft
937 lm/ft
Wattage per ft
10 W/ft
