Model 12100-22-S-L

2-Inch Louver Linear LED Ceiling Light

By Alcon Lighting
$249.95

Built to order

, ships in: 3-7 business days
Oversized Product Spec Grade UL Damp Location Color Temperature Selectable Switch Wattage Selectable Switch Emergency Backup Battery
loader
Loading...

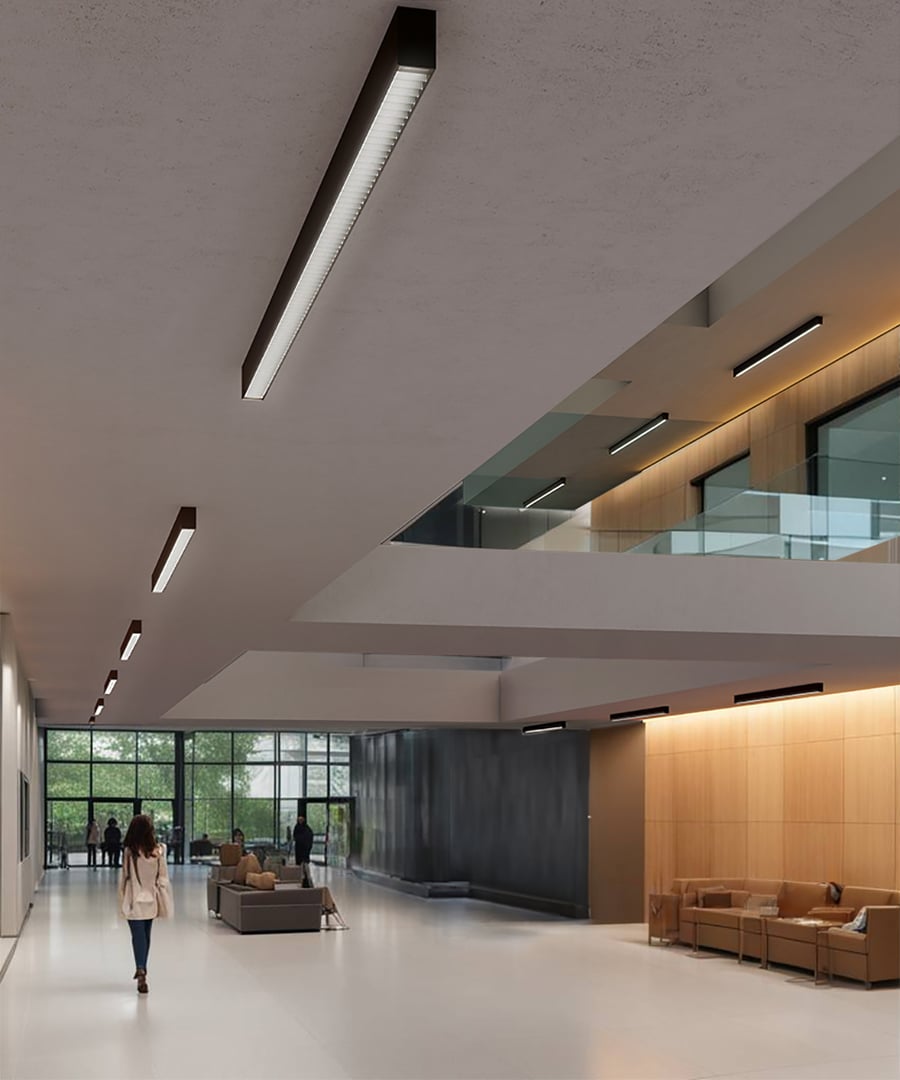

This linear LED ceiling light features a robust, extruded aluminum housing with a powder coat finish to fit your design needs. The fixture's modern, low-profile design houses a louvered lens to reduce glare while maintaining excellent light control and distribution. Capable of continuous runs up to 40 feet at 120V or 100 feet at 277V, our surface-mounted linear LED light offers selectable wattage (5W/7.5W/10W) and color temperature (30/35/40K), with 0-10V dimming to 10%. With an optional 8W or 25W emergency battery backup, this damp-rated fixture offers precise and adaptable lighting for commercial, hospitality, and residential environments.
  • Manufacturer
    Alcon Lighting
  • Model
    12100-22-S-L
  • Lead Time
    Ships in: 3-7 Business Days
  • Return Policy
    Built to order. Restocking fees apply.
  • Qualifications
    Spec Grade, UL, Damp Location
  • Features
    Color Temperature Selectable Switch, Wattage Selectable Switch, Light Direction Selectable Switch, Emergency Backup Battery
  • Dimming
    0-10V
  • Voltage
    120-277V
  • Finish
    White, Black
  • CCT
    3000K, 3500K, 4000K
  • CRI
    80+
  • Mounting
    Surface
  • Light Direction
    Direct Downlight
  • Shape
    Linear
  • Beam Spread
    110°
  • Lumens per ft
    350 lm/ft, 525 lm/ft, 700 lm/ft
  • Wattage per ft
    10 W/ft, 5 W/ft, 7.5 W/ft
  • Length
    2 ft., 3 ft., 4 ft., 6 ft., 8 ft.
