$369.95
SKU
11218-DIR

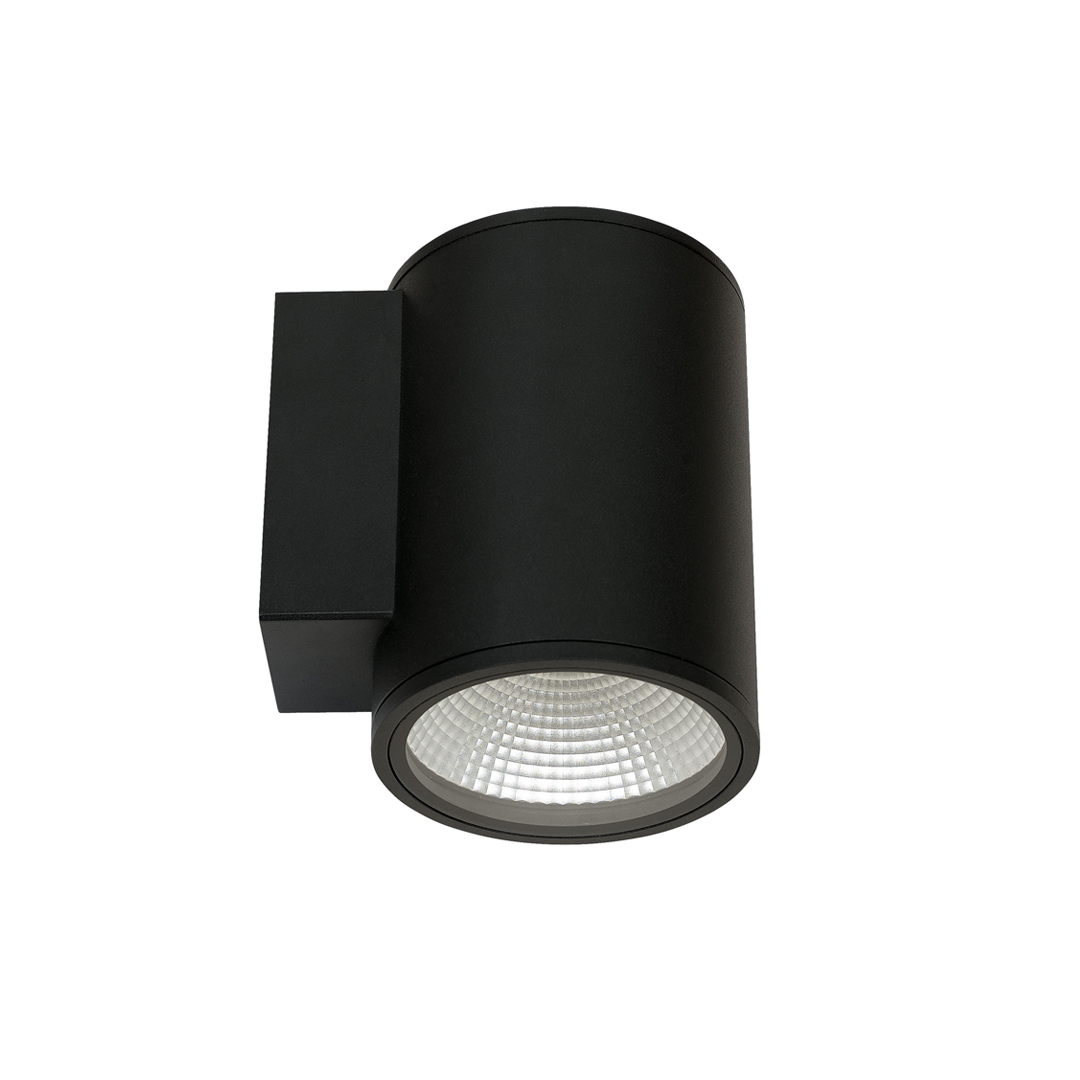

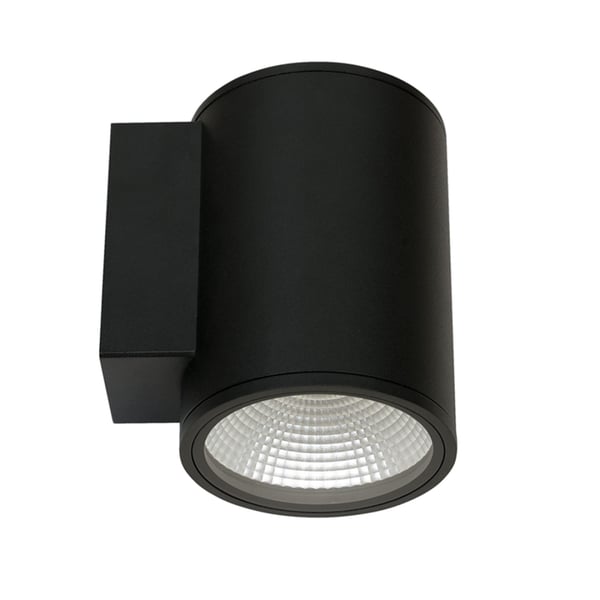

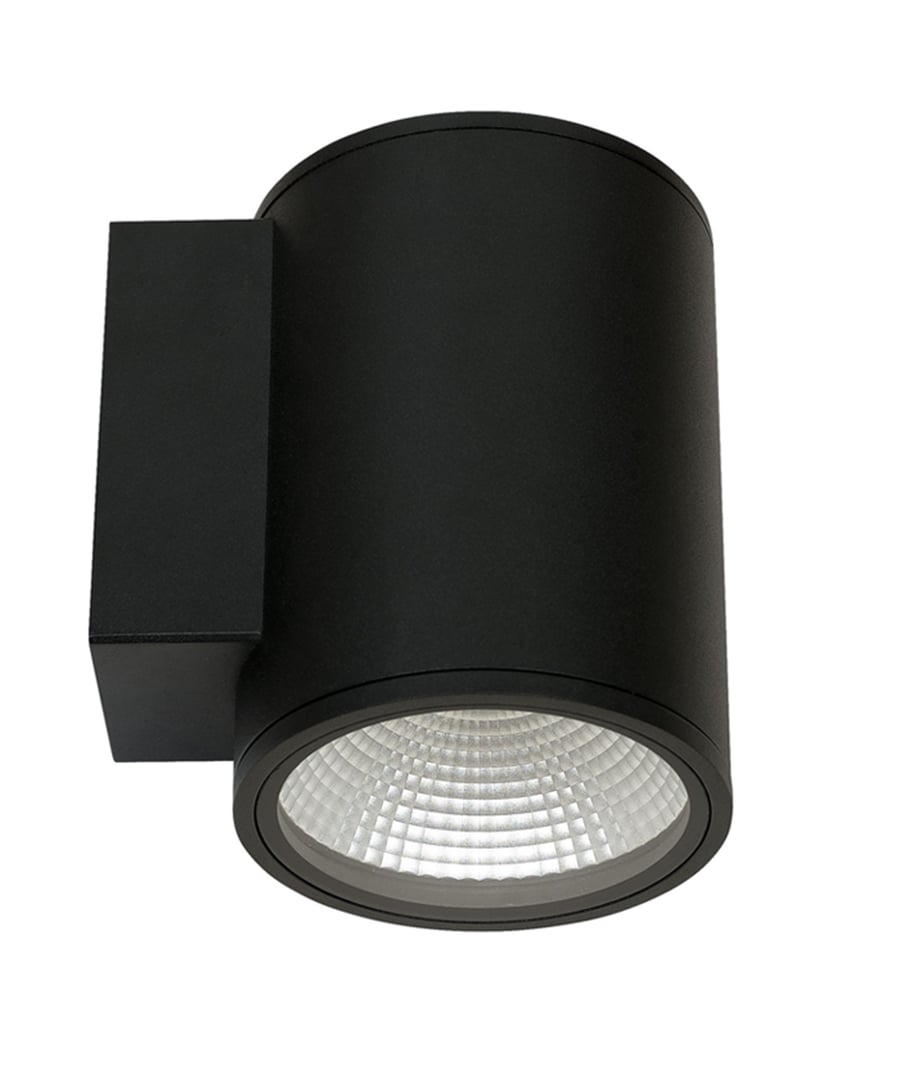

Alcon Lighting 11218-DIR Pavo Architectural LED 6-Inch Cylinder Wall Downlight
Ordering Options:
For specification sheet options that don’t appear as selections below, please call (877) 733-5236.
$369.95
SKU
11218-DIR
In Stock Assembly Required
Lead Time
Built to order: 2-4 Weeks
NOTE: We cannot guarantee lead times for built to order products. Occasional backorder of components (i.e., LED drivers, diodes and/or other electrical components) may lead to assembly delays. Be assured, Alcon Lighting is 100 percent committed to meeting and/or exceeding lead time estimates.
Downloads
Other Products You Might Like
| Manufacturer | Alcon Lighting |
|---|---|
| SKU | 11218-DIR |
| Return Policy | Assembled to Order. Non-Refundable. |
| Regulations | CETL listed, cUL, Made in America, IP65, LM80 Tested |
| Voltage | 120-277V |
| Finish | White, Black |
| Color Temperature | 4000K Cool White |
| Lens Opacity | Clear |
| Housing Size | 6 Inch |
| Features | Daylight Sensor, Emergency Backup Battery, Wet Location Rated |
| Mount Type | Wall |
| Product Type | Direct Downlight |
| Height | 8" |
| Diameter | 5.69" |
| Lumen Output | 600 - 1199 Lumens |
| Lumen Output Minimum | 1000 Lumens |
| Lumen Output Max | 1200 Lumens |
| Wattage | 15 Watts, 22 Watts |
| Beam Spread | 60° Wide Flood, Narrow Spot, Spot, Wide Flood |
This architectural cylinder wall light is a versatile low-glare lighting fixture. This product can be used indoors and outdoors for commercial or retail purposes. The downlight can also be used to accent and create dramatic effects or provide safety and security. This fixture is exclusively designed for downlighting.
Dimensions: D 5.69" x H 7.86"
Construction: Round One Piece High Grade Aluminum with
corrosion-resistant finish
Light Engine: LED Chip-On-Board
Lens: Tempered Glass and Silicone O-Ring
Reflector: Glare-Free, One piece, Heavy Gauge Aluminum
Mounting: Includes Bracket for Installation Directly to a
4" octagonal electrical junction-box
Voltage: 120V (Non-Dimming), 120V/277V (Dimming)
CRI: 84+
Dimming: Universal Dimming System Compatible with
2-Wire TRIAC, 3-Wire ELV, and 5-Wire 0-10V Dimmers
Life: L70 - 50,000 Hours
Emergency: 90 Minutes Minimum, Remote Test Switch, Plate Cover, Junction Box Included
Listing: ETL/cETL Listed Suitable for Wet Location. Assembled in the US (IP65) Electrical: Electronic Direct Current Class 2 driver
Warranty: 5 Years Carefree for Parts and Components (Labor not included). We recommend the use of surge protectors on the power entering LED Housings. Surge damage is not covered by warranty.
Compliancy: Dark Sky Compliant when fixture is pointing downward.
