Model SQ802

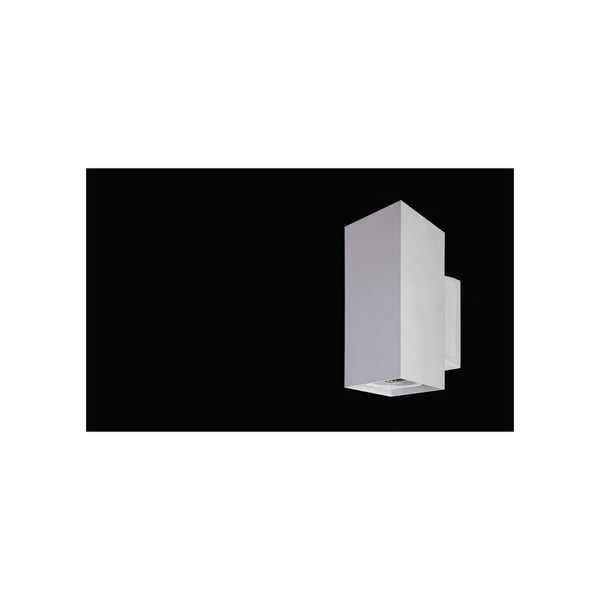

Luminis Syrios SQ802 Series 8" Square LED

By Luminis

Not available

UL IP66 Wet-Location Rated
loader
Loading...

Luminis Syrios SQ802 Series 8" Square LED is a high performance luminaire for interior/exterior applications. It is designed with a tilting mechanism allowing forward and back light adjustability. The ±18° directional module allows to aim the light beam in the desired direction, without disturbing the luminaire mounting. The module can be secured using the built in locking mechanism.



The Luminis Syrios blends with the traditional or contemporary architecture of schools, public spaces, office buildings, shopping centers and hospitals.

Mount: Fits on a: 4” (102) octagonal electrical
box using 3 1/2” (89) C/C mounting holes or 2x4” (51x102) rectangular electrical box using 3.156” (80) C/C mounting holes.

Lens: Sealed cast aluminum lens frame. Clear tempered glass lens. Faceted specular aluminum reflector. Standard 28° Optic.

Color Quality: 80 CRI

LED: 4000K/80CRI. Optional 2700K, 3000K & 3500K.

Driver: 0-10V Dimming-ready

Input Voltage: 120V/277V, 50Hz/60Hz

Lifetime: 60,000 hours (up to 95,0000 hours) at 80% lumen maintenance

Ambient Operating Temperature: -40ºC/-40ºF to 55ºC/131ºF.

Emergency Lighting: Optional Emergency battery backup for lighting up to 90 minutes. Remote interior mount 50ft - 12” (305) square enclosure with access cover.

Warranty: 5 Years product free from any defects in material and workmanship. Limited warranty voided if product is not installed according to manufacturer's guidelines.



  • Manufacturer
    Luminis
  • Model
    SQ802
  • Return Policy
    Built to order. Restocking fees apply.
  • Qualifications
    UL, IP66
  • Features
    Wet-Location Rated
  • Voltage
    120V, 277V
  • Finish
    White, Black, Silver, Grey, Bronze, Gun Metal, Custom RAL (Extended Lead Time May Apply)
  • CCT
    4000K, 2700K Residential Warm
  • CRI
    80+
  • Mounting
    Wall
  • Light Direction
    Direct Downlight
  • Shape
    Square
  • Diameter
    12"
  • Beam Spread
    20° to 35, 36° to 60°
  • Additional options
    0-10V Dimming
