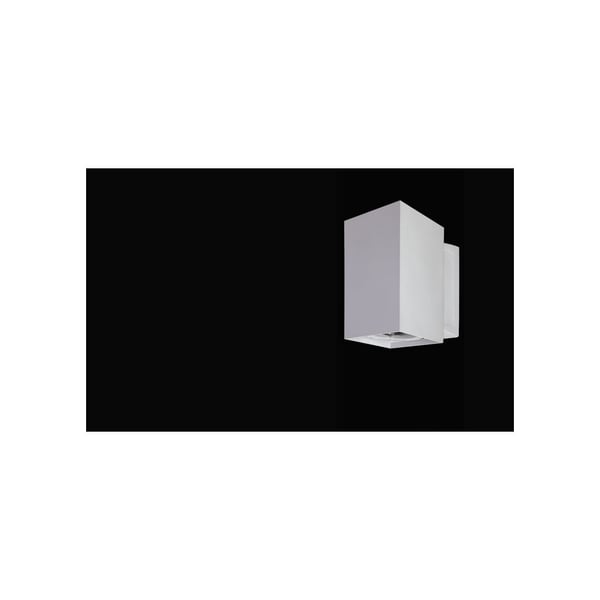

Luminis Syrios SQ800 Series 8" Square LED

Description

Luminis Syrios SQ800 Series 8" Square LED is a high performance luminaire for interior/exterior applications. It is designed with a tilting mechanism allowing forward and back light adjustability. The ±18° directional module allows to aim the light beam in the desired direction, without disturbing the luminaire mounting. The module can be secured using the built in locking mechanism.

The Luminis Syrios blends with the traditional or contemporary architecture of schools, public spaces, office buildings, shopping centers and hospitals.

Mount: Fits on a 4” octagonal electrical box using 3 1/2” (89) C/C mounting holes.

Lens: Sealed cast aluminum lens frame. Clear tempered glass lens. Faceted specular aluminum reflector.

Color Quality: 80 CRI

LED: 4000K/80CRI. Optional 2700K, 3000K & 3500K.
Optional Amber LED for turtle sensitive areas.

Driver: Standard driver is 0-10V dimming-ready (dims to 10%) with 120-277 multi-volt compatibility (50-60Hz), operating temperature range of -40oC/-40oF to 55oC/131oF, output over voltage protection, output over current protection and output short circuit protection with auto-recovery.

Input Voltage: 120/277V, 50/60Hz

Lifetime: 60,000 hours at 80% lumen maintenance

Ambient Operating Temperature: -40ºC/-40ºF to 55ºC/131ºF.

Emergency Lighting: Optional 7W remote emergency battery backup for lighting up to 90 minutes. Remote interior mount 50ft - 12” (305) square enclosure with access cover.

Warranty: 5 Years product free from any defects in material and workmanship. Limited warranty voided if product is not installed according to manufacturer's guidelines.
