Model 9028

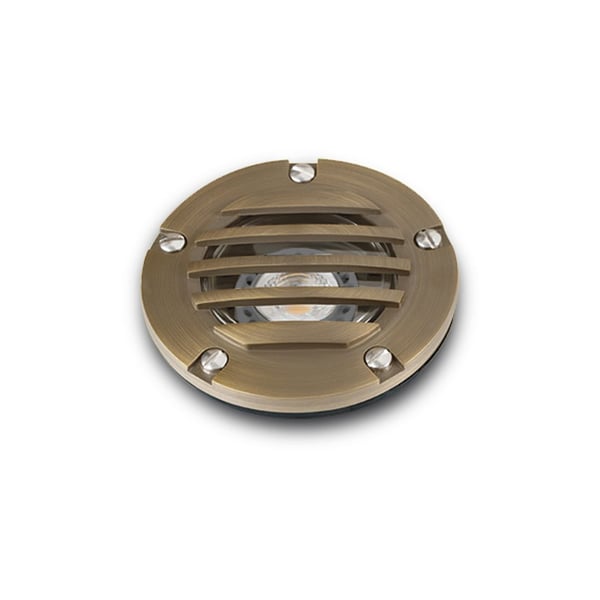

5-Inch Drive-Over Cast Brass LED Well Light with Grill Plate

By Alcon Lighting
$187.95

Built to order

, ships in: 3-7 business days
Spec Grade cETLus Wet Location IP68
loader
Loading...
Designed for structure and ambiance, this drive-over in-ground LED well light features a protective grill plate that filters glare and shields the lens in high-traffic outdoor settings. Built with cast brass and sealed against weather and moisture, the 5-inch uplight withstands loads up to 3,000 pounds. A flat tempered glass lens, 25° adjustable ceramic socket and pre-wired burial cord ensure performance meets longevity. With static color temperatures from 2700K to 5000K, 12V input and 500 lumens at just 5 watts, this fixture brings warm, resilient lighting to landscapes and hardscapes.
  • Manufacturer
    Alcon Lighting
  • Model
    9028
  • Lumen output
    500 lm
  • Lead Time
    Ships in: 3-7 Business Days
  • Return Policy
    Built to order. Restocking fees apply.
  • Qualifications
    Spec Grade, cETLus, Wet Location, LM79 Tested, LM80 Tested, IP68
  • Dimming
    MLV
  • Wattage
    5W
  • Voltage
    12V AC, 12V DC
  • Finish
    Antique Bronze, Gun Metal
  • CCT
    2700K, 3000K, 4000K, 5000K
  • CRI
    80+
  • Mounting
    In Ground
  • Light Direction
    Indirect Uplight
  • Shape
    Round
  • Diameter
    4 7/8"
  • Beam Spread
    38°
  • Wattage per ft
    5 W/ft
