Alcon 12100-20-P Continuum 20 Series LED Linear Pendant
$399.95
SKU
12100-20-P
In Stock Assembly Required
Lead Time
Built to Order: 1-2 Weeks
NOTE: We cannot guarantee lead times for built to order products. Occasional backorder of components (i.e., LED drivers, diodes and/or other electrical components) may lead to assembly delays. Be assured, Alcon Lighting is 100 percent committed to meeting and/or exceeding lead time estimates.
Other Products You Might Like
Accessories
Product information
Overview

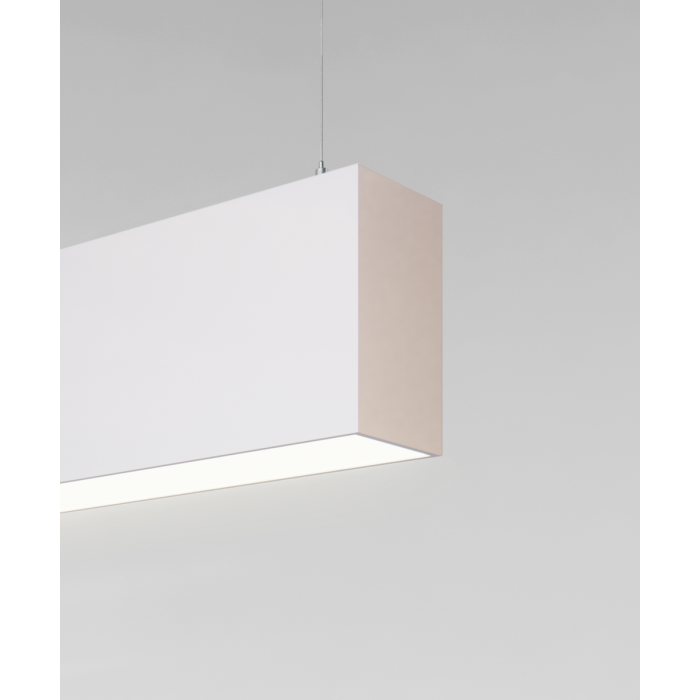

The specification grade Continuum 20 Architectural Direct and Indirect LED Linear Pendant Lighting delivers continuous clean lines and clear light to commercial, hospitality and residential interior lighting applications. Our modern, slim profiles and stylish linear chandelier designs offer excellent direct and indirect lighting, exceptional performance and versatility in offices, classrooms, conference rooms, museums, retail outlets, hotels, restaurants, and more. The Continuum integrated LED linear pendant lighting is available 2', 3', 4’, 6', and 8’.The Continuum 20 can be joined together in seamless runs of any length.
FEATURES
Construction: Die-Formed and Welded 22-Gauge Cold Rolled Steel
Continuous Row: Tandem Mount for Continuous Run Application, Equipped with Male & Female Quick Connect Harnesses
Mounting: 4' Adjustable Aircraft Cable (Standard). Custom Adjustable Aircraft Cable Length and Stem Pendant Mount Availalbe (Consult Factory)
Lens: Glare Free Snap In Frosted Acrylic for Even Distribution
Dimming: 0-10V Dimming (standard). ELV Dimming, TRIAC & DALI Available (Consult Factory)
Optional Controls: Lutron Vive, Lutorn Eco System, Philips EasySense and Simens Enlighted Availalbe (Consult Factory)
CRI: 80+, 90+ Available (Consult Factory)
Power Factor: > .95
THD: < 20
Life: 100,000 Hours L70
Operating Temperature: -4°F (-20°C) - 122°F (50°C)
Emergency Lumens: System Lumens x Emergency Wattage / System Wattage
Warranty: 5 Years Carefree for Parts & Components (Labor Not Included), 10 Year Option Available
Listings: CA Title 24 Compliant, cETL Listed, LED Chips Tested to LM-80 Standards, UL Listed for Dry & Damp Location
Formerly: 12175 Beam 20
Specifications
| Manufacturer | Alcon Lighting |
|---|---|
| SKU | 12100-20-P |
| Return Policy | Assembled to Order. A 50% Restocking Fee May Apply. |
| Regulations | UL, UL Damp, cUL, DLC Listed, Assembled in the USA |
| Voltage | 120-277V |
| Color Temperature | 4000K Cool White, 5000K Day Light, 2700K Residential Warm |
| CRI | 80+, 90+ |
| Features | 0-10V Dimming, ELV Dimming, Triac Dimming, Emergency Backup Battery, Damp Location Rated, Daylight Sensor, Occupancy Sensor |
| Mount Type | Pendant |
| Product Type | Direct/Indirect |
| Width | 2.5" |
| Length | 48" |
| Lumen Output | 2200 - 3499 Lumens, 3500 - 4999 Lumens, 5000 - 7499 Lumens, 7500 - 8999 Lumens, 9000 - 11999 Lumens |
