Alcon Lighting 14061 HiLED Architectural LED High Performance Recessed Troffer
In stock
Lead Time
Built to Order: 1-2 Weeks
NOTE: given the nature of built-to-order products, we cannot guarantee lead-times. Occasional back-order of components (i.e. LED drivers, diodes, and/or other electrical components) can sometimes lead to delays in assembly. Estimated ship dates are, by definition, not guaranteed.
SKU
14061
$209.95
Other Products You Might Like
Add Parts & Accessories
Details

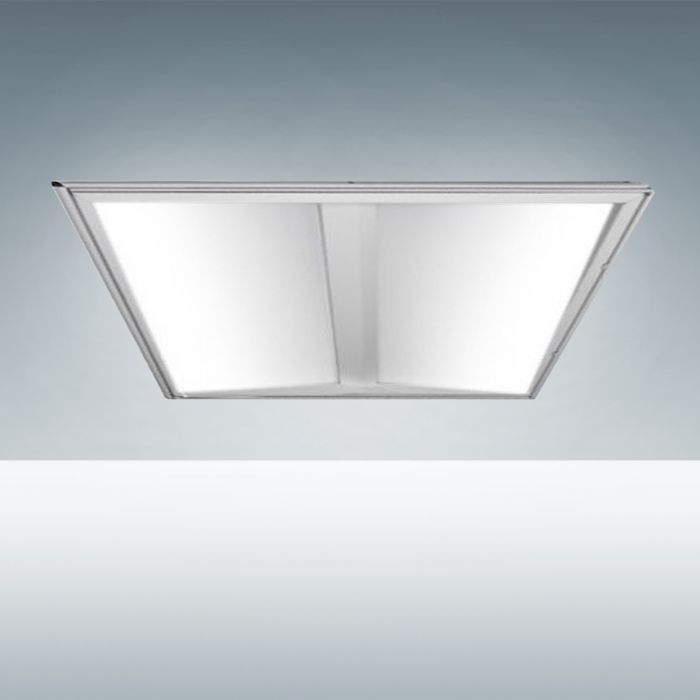

The HiLED Architectural LED Recessed Troffer is a high performance fixture designed with high efficiency and performance while providing excellent visual control and subtle soft indirect illumination. The HiLED Series is ideal for commercial and institutional environments.
Construction: Die-Formed and Cold-Rolled 20 Gauge Steel Housing
Corrosion Resistant
Shielding: Dual Slope Panels to Provide Low-Brightness Glow
Mounting: Recessed Mounted in Exposed T-bar Ceilings
Finish: High-Gloss Baked White Enamel
Electrical: Class 2, Constant Current
Voltage: 120-277 UNV
Dimming: 0-10V 1~100%
CRI: 83+
Construction: Die-Formed and Cold-Rolled 20 Gauge Steel Housing
Corrosion Resistant
Shielding: Dual Slope Panels to Provide Low-Brightness Glow
Mounting: Recessed Mounted in Exposed T-bar Ceilings
Finish: High-Gloss Baked White Enamel
Electrical: Class 2, Constant Current
Voltage: 120-277 UNV
Dimming: 0-10V 1~100%
CRI: 83+
More Information
| Manufacturer | Alcon Lighting |
|---|---|
| SKU | 14061 |
| Return Policy | Assembled to Order. A 30% Restocking Fee May Apply. |
| Technology | LED |
| Regulations | cUL Listed, Assembled in the USA, Buy American Act |
| Voltage | 120V - 277V |
| Finish | White |
| Color Temperature | 3000K Warm White, 3500K Soft White, 4000K Cool White, 5000K Day Light |
| Features | Emergency Backup Battery |
| Shape | Square |
| Width | 23.75" |
| Length | 24" |
| Lumen Output | 2200 - 3499 Lumens |
| Lumen Output Minimum | 2050 Lumens |
| Lumen Output Max | 3402 Lumens |
| Wattage | 28 Watts, 36 Watts, 44 Watts |
