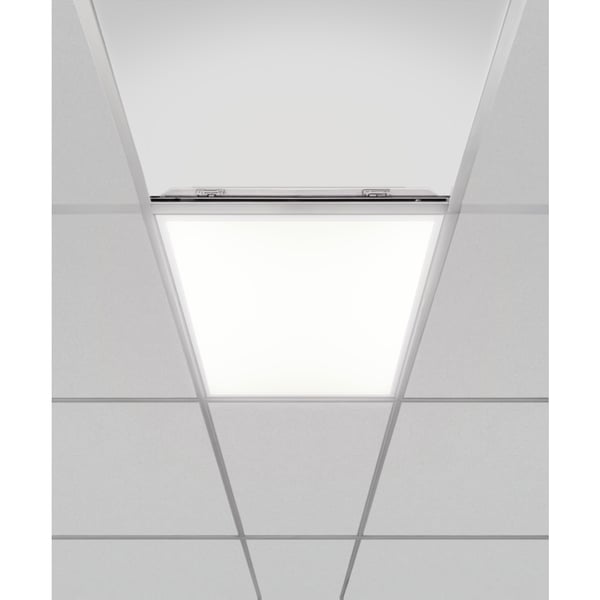

Model 14076-R
Low-Profile Recessed LED Flat Panel Light
By Alcon Lighting
Discontinued
This recessed LED flat panel delivers efficient, high-lumen illumination in a low-profile, back-lit design. Perfect for shallow plenums, the LED panel light offers selectable wattage (40W or 50W) and adjustable lumen output from 2,500 to 6,100 lumens. The fixture features selectable color temperatures (3000K, 4000K or 5000K). Add optional sensor controls and 8W emergency battery backup for enhanced performance. Available in 1x4, 2x2 and 2x4 sizes, this commercial-grade flat panel is designed for offices, schools, healthcare facilities and other professional spaces.
Manufacturer
Alcon Lighting
Model
14076-R
Lumen output
2500 lm, 3600 lm, 3800 lm, 4700 lm, 4900 lm, 6100 lm
Lead Time
Ships in: 3-7 Business Days
Return Policy
Built to order. Restocking fees apply.
Qualifications
Spec Grade, cULus, Damp Location
Features
Color Temperature Selectable Switch, Wattage Selectable Switch, Emergency Backup Battery
Dimming
0-10V
Wattage
20/30/40W, 30/40/50W
Voltage
120-277V
Finish
White
CCT
3500K, 4000K, 5000K
CRI
80+
Mounting
Recessed T-Bar, Recessed Screw Slot
Light Direction
Direct Downlight
Shape
Rectangle, Square
Height
1.4"
Beam Spread
120°
Size
1' x 4', 2' x 2', 2' x 4'
Wattage per ft
20 W/ft, 30 W/ft, 40 W/ft, 50 W/ft
