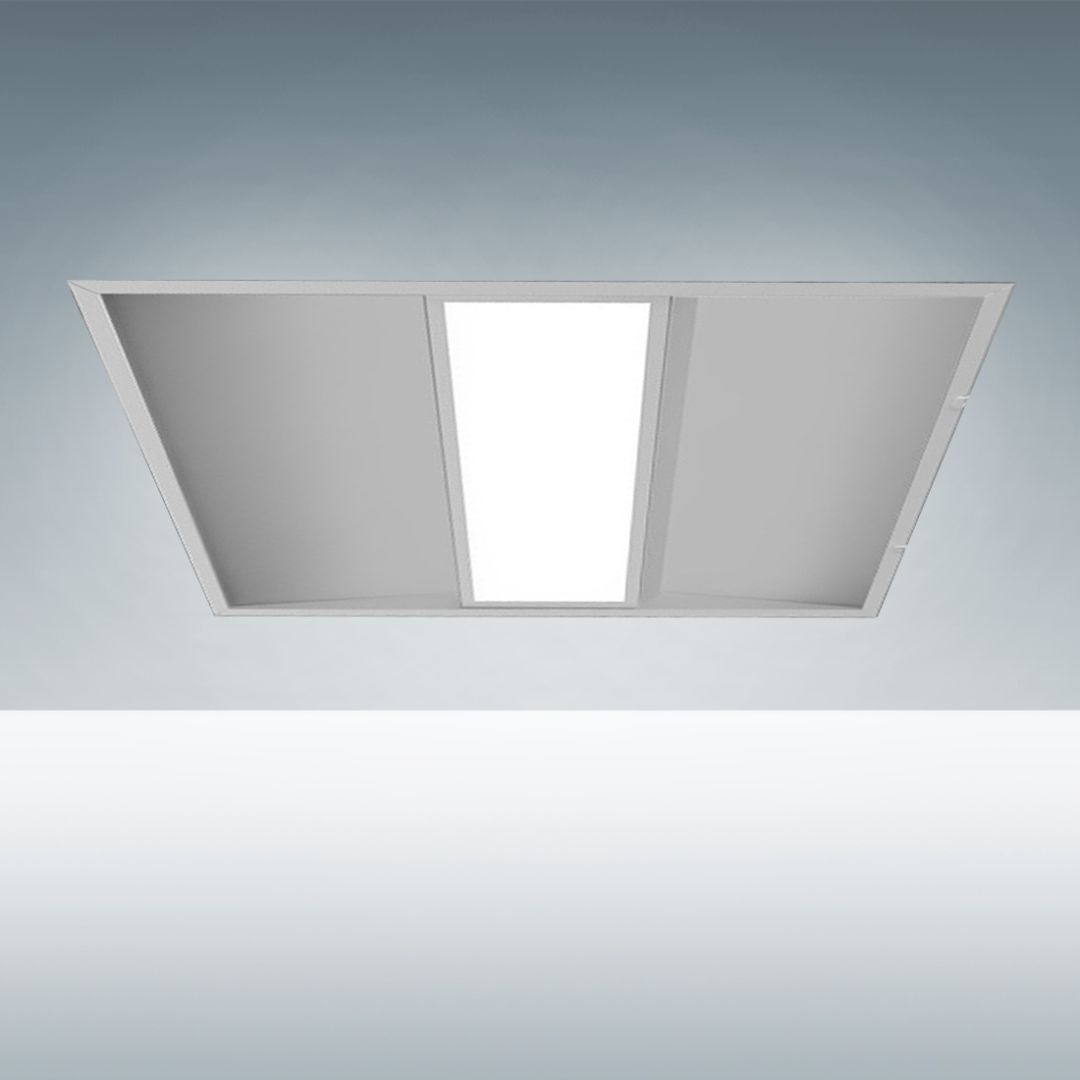

Alcon Lighting 14726 Crystalline Series Architectural LED Recessed Direct Light Troffer
NOTE: given the nature of built-to-order products, we cannot guarantee lead-times. Occasional back-order of components (i.e. LED drivers, diodes, and/or other electrical components) can sometimes lead to delays in assembly. Estimated ship dates are, by definition, not guaranteed.
The specification grade Crystalline Series LED Architectural LED Recessed Troffer delivers a sleek, low profile, low glare, direct ambient light perfect for today’s commercial buildings. This unique, squared lens, combined with our high reflectance, ensures a highly efficient and superior quality lighting fixture.

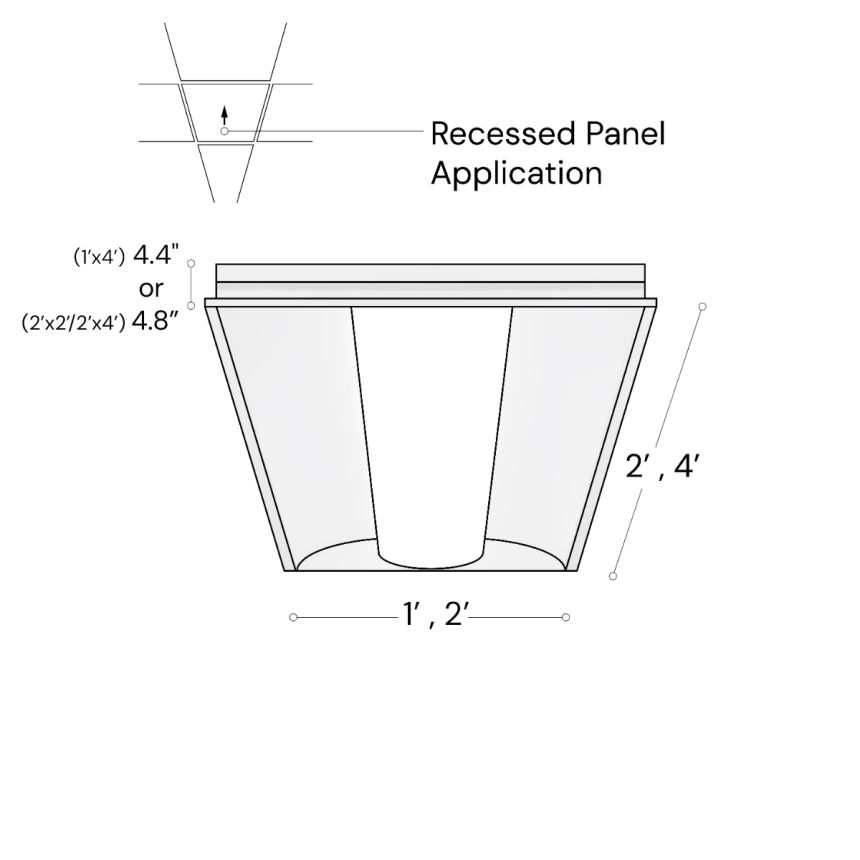

AVAILABLE SIZES
1x4 | W 12” x L 48” x H 3.34"
2x2 | W 24” x L 24” x H 3.36"
2x4 | W 24” x L 48” x H 3.26”
FEATURES
Construction: Volumetric Center Lens, Formed and Welded 24-Gauge Steel Finish: Post Powder Painted, Matte White Finish with 92% Reflectance
Lens: Glare Free Snap In Frosted Acrylic for Even Distribution
Dimming: 5-Wire 0-10V (100%-10%)
Voltage: 120-277V (50/60 Hz) Constant Current
CRI: >80
Life: 60,000 Hours
Warranty: 5 Years Carefree for Parts & Components (Labor Not Included) Listings: CA Title 24 Compliant, cETL Listed, LED Chips Tested to LM-80 Standards
| Manufacturer | Alcon Lighting |
|---|---|
| SKU | 14726 |
| Return Policy | Assembled to Order. A 30% Restocking Fee May Apply. |
| Technology | LED |
| Regulations | ETL Listed |
| Voltage | 120V - 277V |
| Color Temperature | 3000K Warm White |
| Features | 0-10V Dimming, Emergency Backup Battery , Occupancy Sensor |
| Mount Type | Recessed Flanged, Lay-In (T-Grid) |
| Product Type | LED Troffers |
| Width | 11.56" |
| Lumen Output | 2,500-4,900 Lumens, 5,000-9,999 Lumens |
| Lumen Output Minimum | 2700 |
| Lumen Output Max | 6900 |
