Model 12302-S

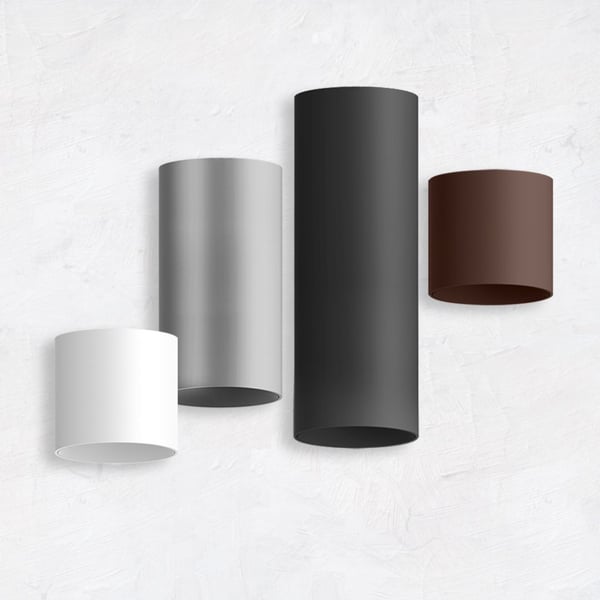

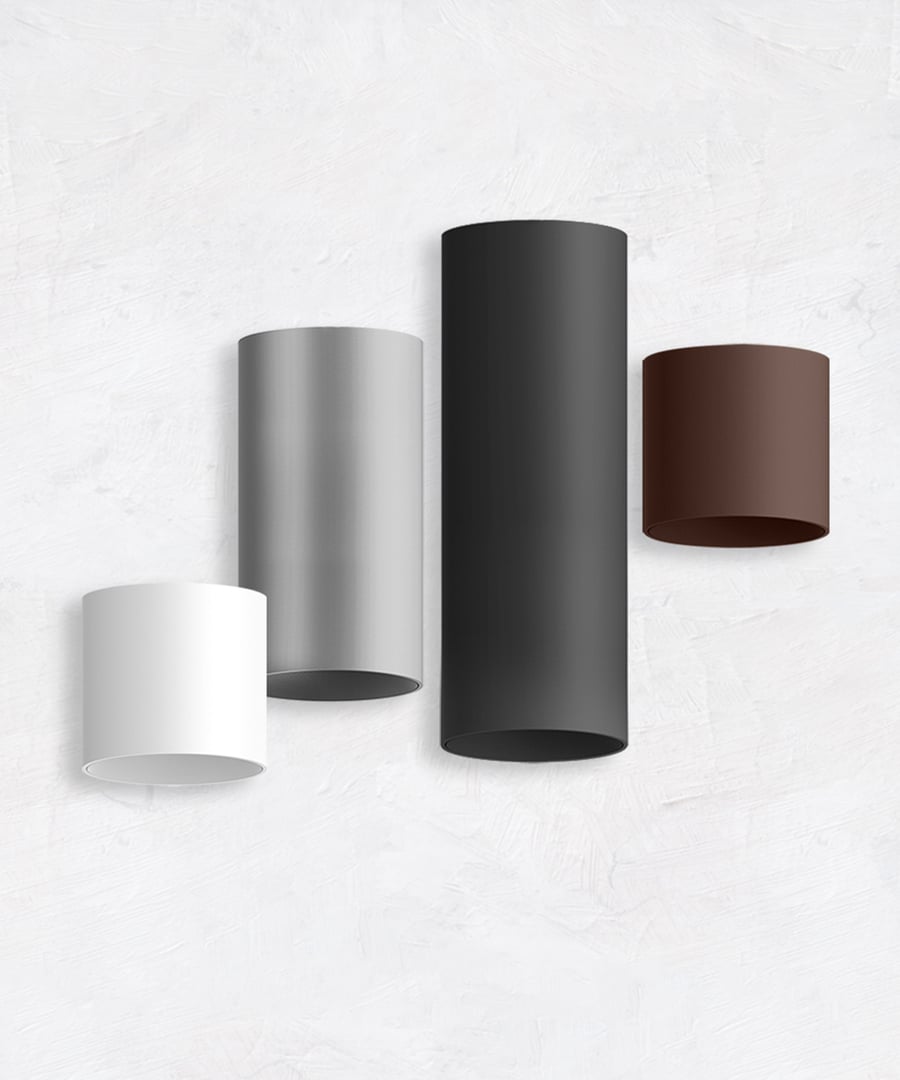

Alcon 12302-S Architectural Cylindrical Ceiling Surface-Mounted LED Light

By Alcon Lighting
$699.95

Built to order

, ships in: 3-7 business days
Title 24 Title 24-JA8 Energy Star Assembled in USA (ARRA) cUL Emergency Backup Battery
loader
Loading...
Mount our LED light on any ceiling surface to illuminate from a single cylinder. With lumen outputs ranging from 750 lm (10W) up to 3000 lm (40W), this extruded diecast aluminum product offers uplighting and downlighting. The distinctive light, made with a choice of trim styles for commercial-grade use, also applies to residences. Fixed 40° Beam Spread standard, other beam spread options available on specification sheet.
  • Manufacturer
    Alcon Lighting
  • Model
    12302-S
  • Lumen output
    750 lm, 1000 lm, 1250 lm, 1500 lm, 2000 lm
  • Lead Time
    Ships in: 3-7 Business Days
  • Return Policy
    Built to order. Restocking fees apply.
  • Qualifications
    Title 24 , Title 24-JA8, Energy Star , Assembled in USA (ARRA), cUL
  • Features
    Emergency Backup Battery
  • Dimming
    0-10V, ELV, TRIAC, Lutron Ecosystem Hi-Lume 1%
  • Wattage
    10.8 Watts, 28 Watts
  • Voltage
    120-277V
  • Finish
    White, Black, Silver, Bronze, Custom RAL (Extended Lead Time May Apply)
  • CCT
    2700K, 3000K, 3500K, 4000K
  • CRI
    90+
  • Mounting
    Surface
  • Light Direction
    Direct (Standard), Direct/Indirect available upon request
  • Shape
    Cylinder
  • Diameter
    4.3"
