Model 9026-CB

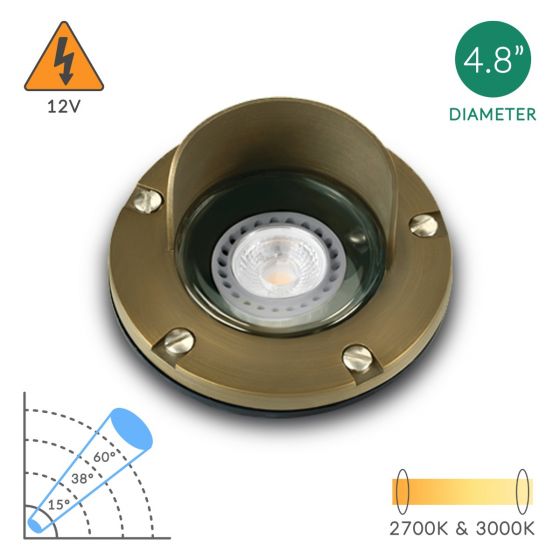

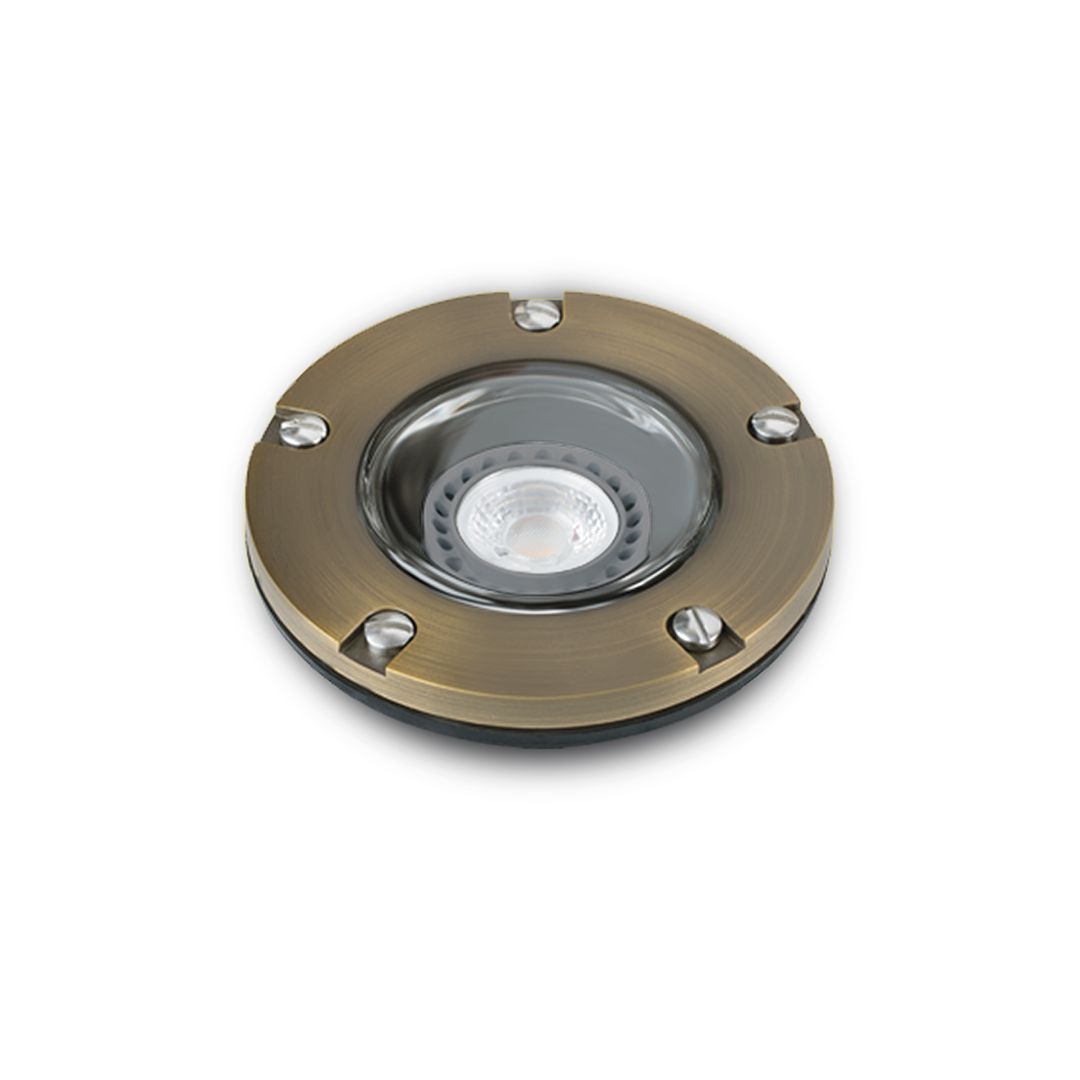

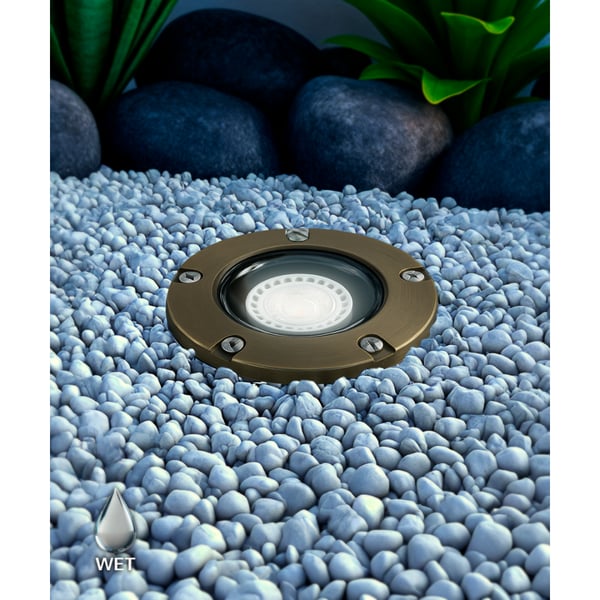

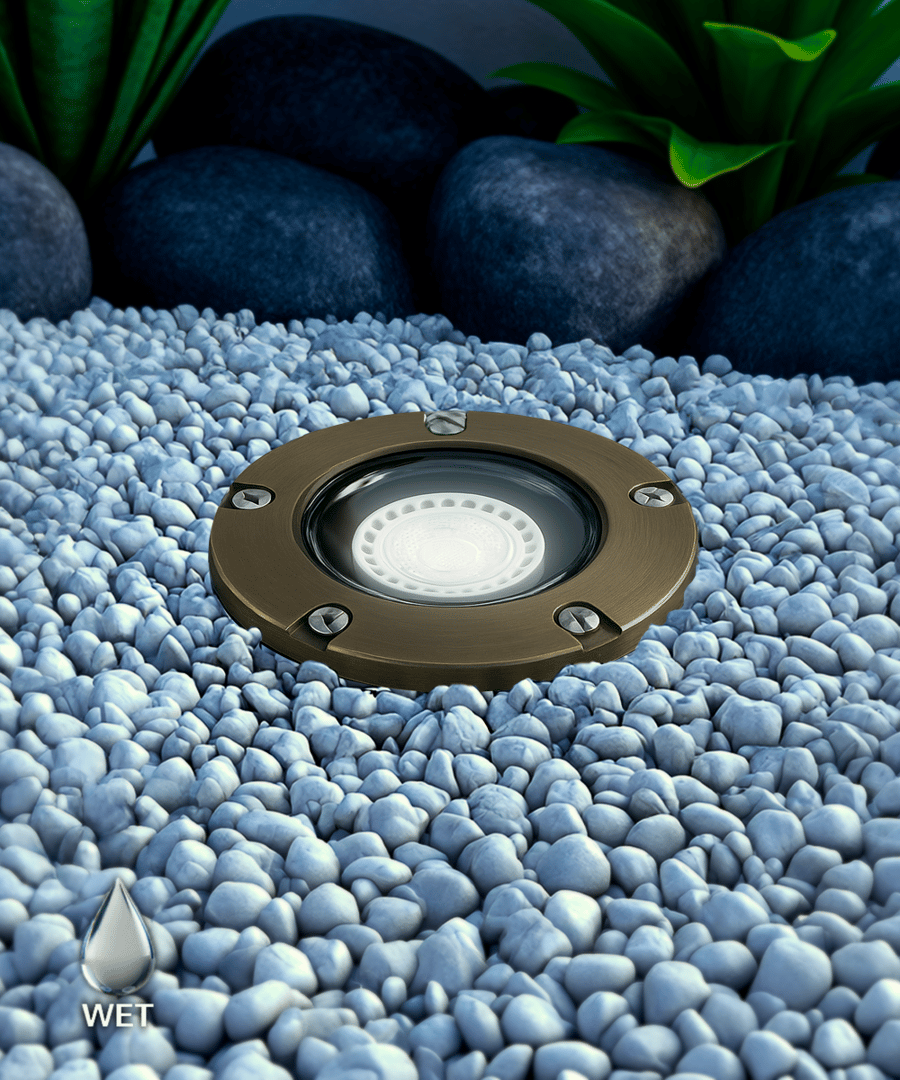

5-Inch Drive-Over Cast Brass LED Well Light

By Alcon Lighting
$187.95

Built to order

, ships in: 3-7 business days
Spec Grade cETLus Wet Location IP68
loader
Loading...
The 5-inch drive-over LED well light blends architectural form with performance-grade durability. Designed for landscape and hardscape lighting, the cast brass uplight withstands up to 3,000 pounds of pressure with a flat, heat-resistant tempered glass lens and silicone-sealed gasket. The adjustable ceramic socket allows for a 25° tilt, offering beam control for trees, columns or facades. The injected molded composite housing enhances UV stability, while the pre-wired direct burial cord supports easy installation. Choose a static color temperature—2700K, 3000K, 4000K or 5000K—for precise outdoor illumination at 500 lumens and 5 watts. Purpose-built for reliability and aesthetic balance in landscape architecture.
  • Manufacturer
    Alcon Lighting
  • Model
    9026-CB
  • Lumen output
    500 lm
  • Lead Time
    Ships in: 3-7 Business Days
  • Return Policy
    Built to order. Restocking fees apply.
  • Qualifications
    Spec Grade, cETLus, Wet Location, LM79 Tested, LM80 Tested, IP68
  • Dimming
    MLV
  • Wattage
    5W
  • Voltage
    12V AC, 12V DC
  • Finish
    Antique Bronze, Gun Metal
  • CCT
    2700K, 3000K, 4000K, 5000K
  • CRI
    80+
  • Mounting
    In Ground
  • Light Direction
    Indirect Uplight
  • Shape
    Round
  • Length
    4.625"
  • Diameter
    4.875"
  • Beam Spread
    38°
  • Wattage per ft
    5 W/ft
