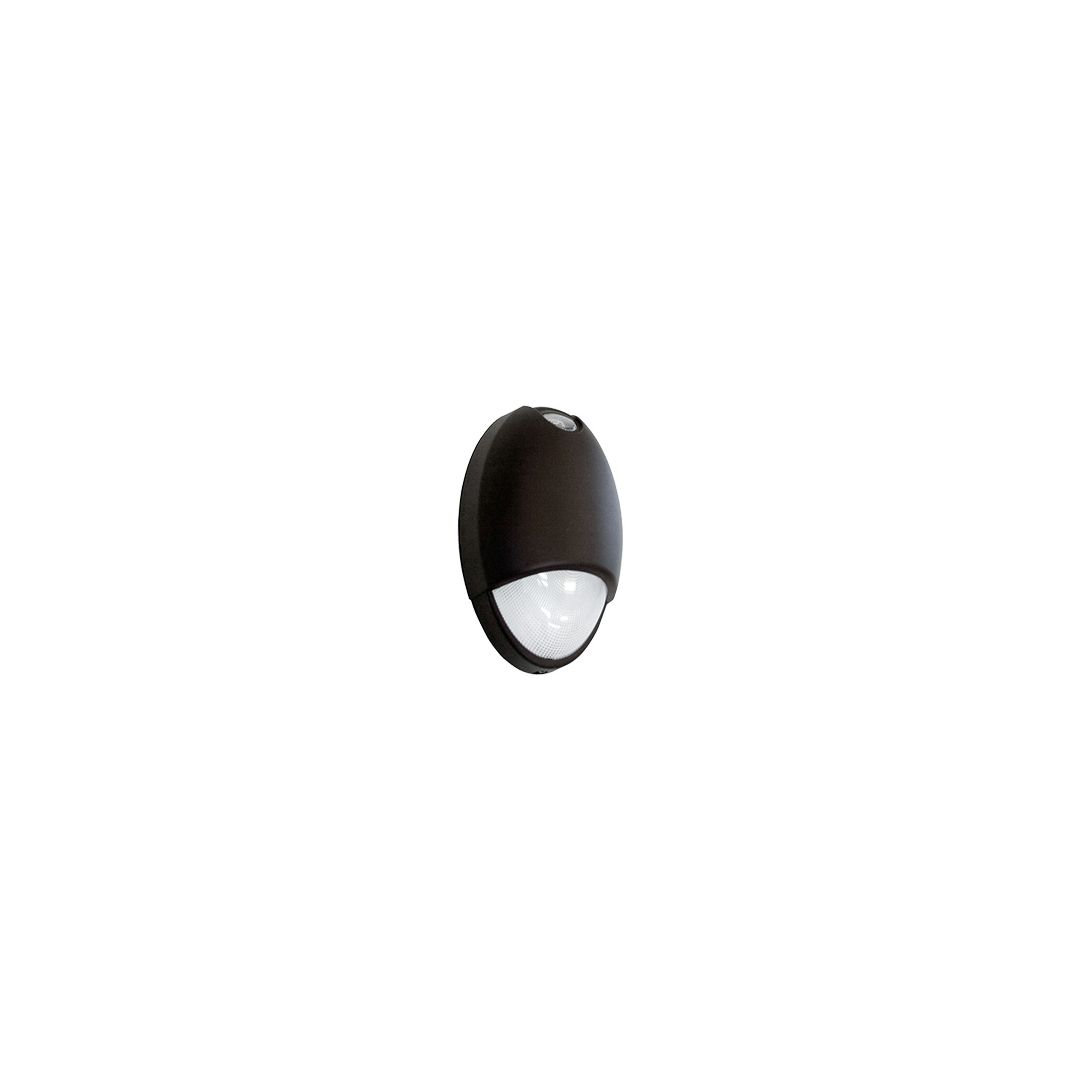

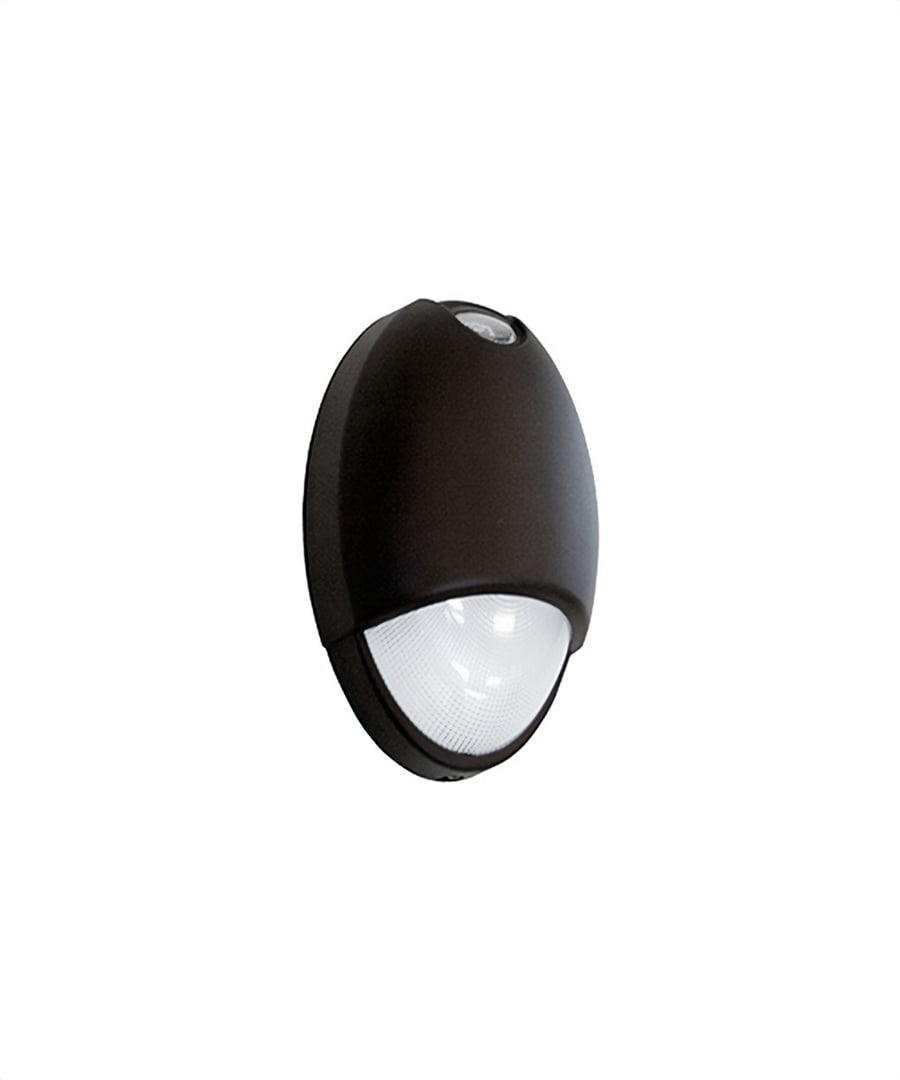

Alcon Lighting 16102 Atlas Architectural LED Decorative Teardrop AC Emergency Unit

Wet-Location Rated
by Alcon Lighting

Available Model 16102

Lead Time
Built to Order: 1-2 Weeks
The Atlas Architectural LED Dual Head Emergency Unit features bright illumination with a fire and impact resistant housing for durability. The Atlas is an ideal option for outdoor applications where emergency lighting is needed.

Construction: Die-Cast Aluminum Housing
Sealed and Gasketed
Mounting: Surface via Easy Connect Back Plate
Suitable for Wall Mount
Electrical: Charge Rate/Power "ON" LED Indicator Light and Push-to-Test Switch for Mandated Code Compliance Testing
Battery: Fully Automatic Solid-State, Two Rate Charger
Wiring: Field-Selectable Wiring Allows for "AC" Operation
Lamp: 6W (2 LEDs x 3W) per Unit
Lens: Prismatic Polycarbonate Mirror-Bright Reflector
Voltage: 120/277 VAC
Wattage: 6W
Self-Diagnostic Testing: Continuously Diagnoses Units' Performance and Test Systems
Sensor: Photocell
Warranty: 5 Years
Battery Pro-Rated for 5 Years
Listings: Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local, and State Codes
UL Listed for Wet Location 32° F (0°C) - 122°F (50°C)
Manufacturer
Alcon Lighting
Model
16102
Lead Time
Built to Order: 1-2 Weeks
Return Policy
Assembled to Order. A 50% Restocking Fee May Apply.
Qualifications
UL, Assembled in USA (ARRA)
Voltage
120-277V
Finish
White, Black, Bronze
Features
Wet-Location Rated
Length
10-1/2"
Wattage
6W
