Model 14064
, ships-in: 2-4 weeks

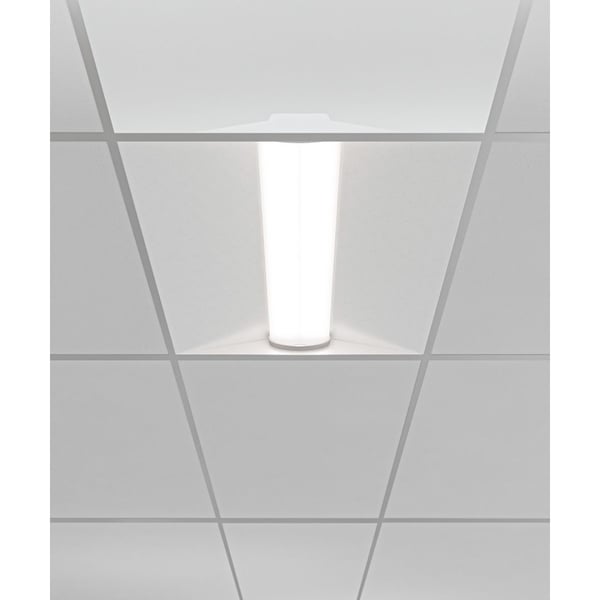

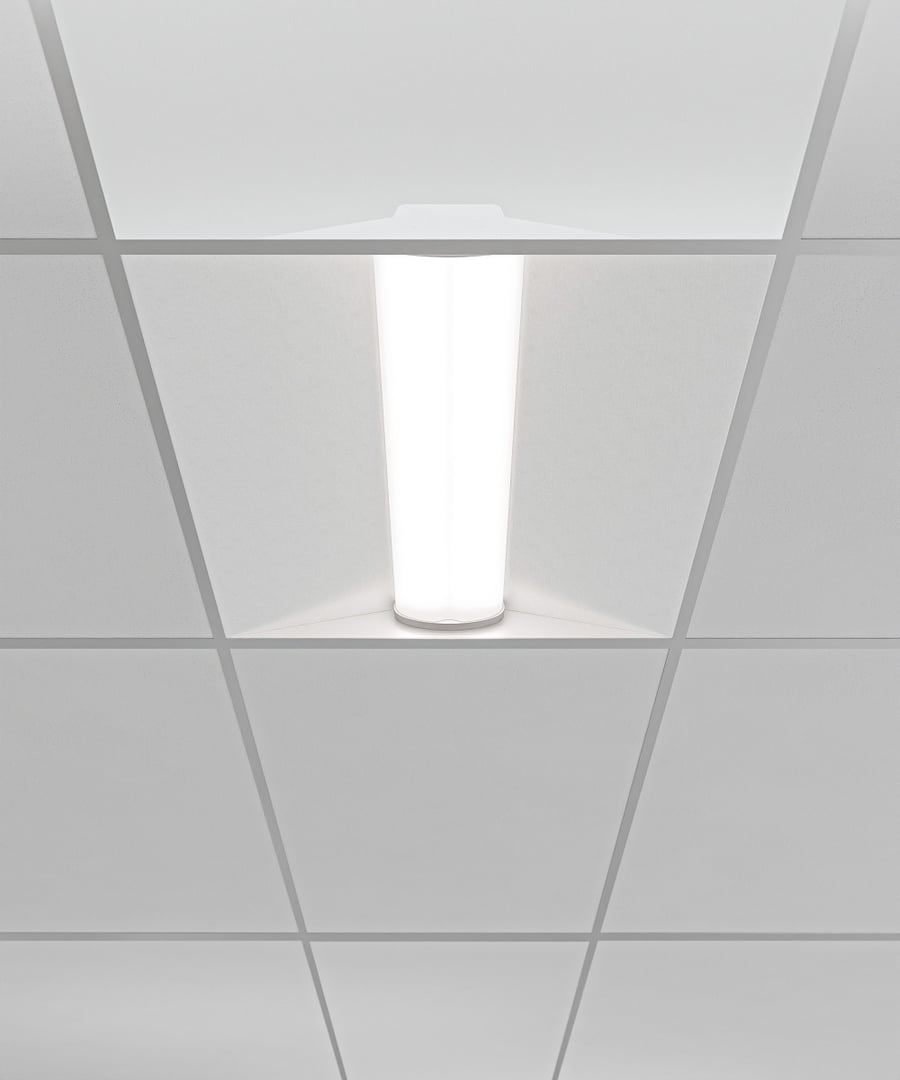

Wattage and Color Temperature Switch Architectural Center Basket LED Troffer Light
By Alcon Lighting
$149.95
Built to order
Loading...
Alcon Lighting’s Architectural Center Basket LED Troffer Light offers flexible, high-performance illumination with field-selectable wattage and color temperature. CCT can be set to 3000K, 3500K, 4000K, 5000K, or 6500K, while the 2x2 model includes a 20W–40W wattage switch and the 2x4 version adjusts from 20W–60W. Its slim housing acts as an efficient heat sink, helping keep LED chips cooler and extending fixture life. The troffer delivers 0–10V dimming with lumen outputs ranging from 3,000–6,000 lumens for the 2x2 and up to 9,000 lumens for the 2x4. With an optional emergency backup, this versatile series is ideal for commercial and institutional interiors, including offices, classrooms, and retail spaces.
Manufacturer
Alcon Lighting
Model
14064
Lumen output
9000 lm, 3000 lm, 3750 lm, 4500 lm, 5250 lm, 6000 lm, 7500 lm
Lead Time
Ships-in: 2-4 Weeks
Return Policy
Built to order. Restocking fees apply.
Qualifications
Spec Grade, UL, DLC Premium
Features
Color Temperature Selectable Switch, Wattage Selectable Switch
Dimming
0-10V
Wattage
2'x2': 20/25/30-35/40 W | 2'x4': 20/30/40/50/60 W
Voltage
120-277V
Finish
White
CCT
3000K, 3500K, 4000K, 5000K
CRI
80+
Mounting
Recessed T-Bar
Light Direction
Direct Downlight
Shape
Rectangle, Square
Size
2' x 2', 2' x 4'
Recessed Downlight Type
Retrofit Module
