Model 12343-8-P

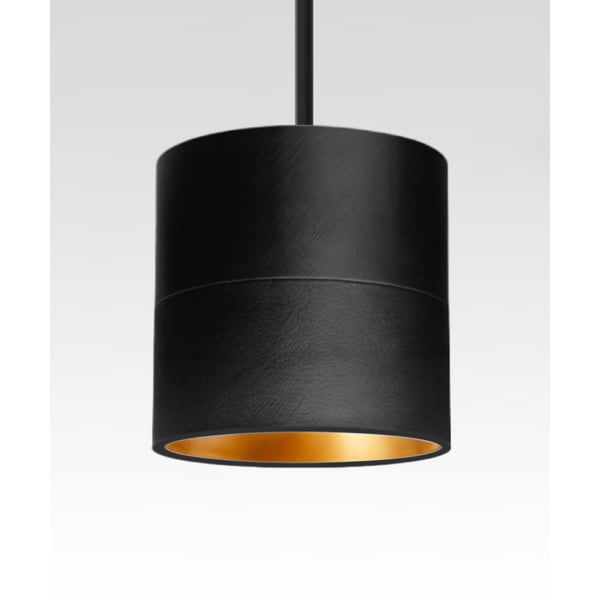

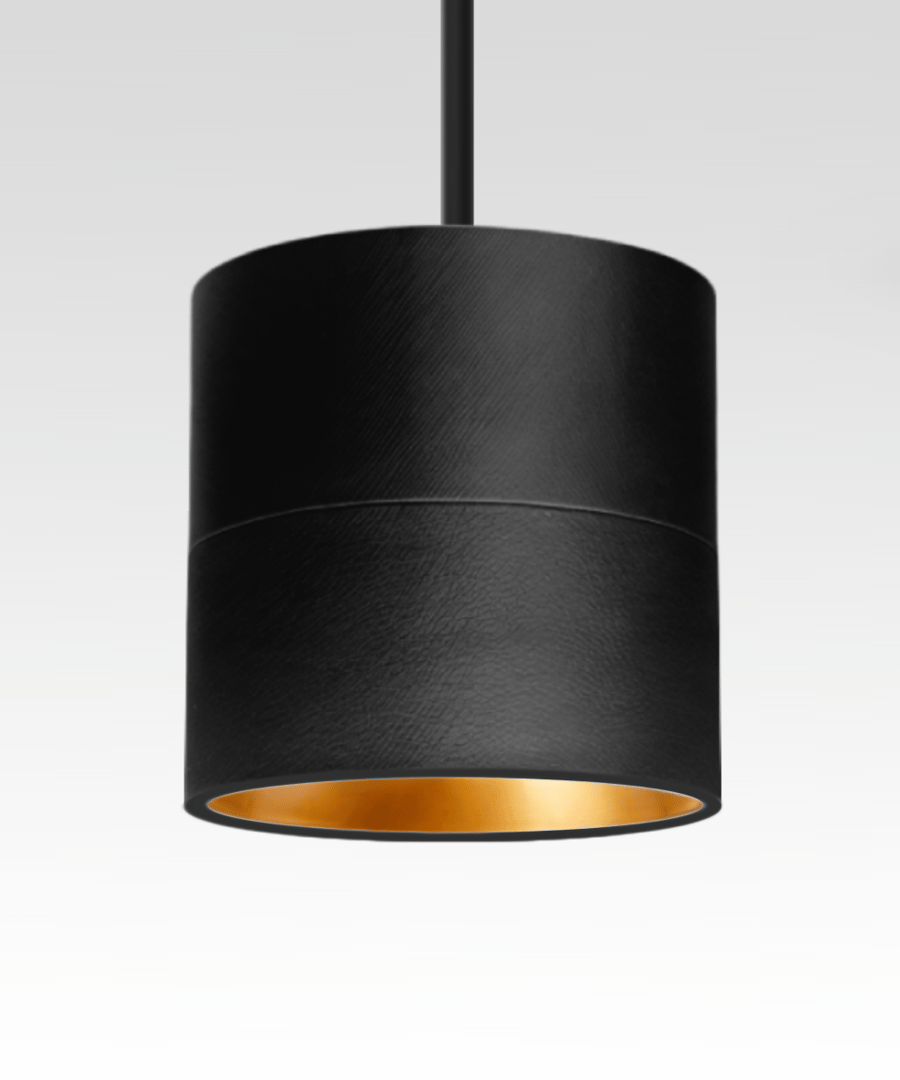

8-Inch Beveled Cylinder LED Pendant Light

By Alcon Lighting
$362.95

Built to order

, ships in: 3-7 business days
Spec Grade cULus Damp Location Wattage Selectable Switch Emergency Backup Battery
loader
Loading...
The 8-inch beveled cylinder pendant light combines sleek design and reliable performance, featuring a 30° tilt with a standard 4' adjustable aircraft cable moutning or optional cable and stem suspension kits from 2 to 12 feet. Made from diecast aluminum with a powder-coated finish, the LED pendant delivers up to 5,510 lumens at selectable wattages from 30 to 58 watts with 0-10V dimming and includes COB LED technology for superior heat dissipation. Offering beam spreads of 15°, 24°, 36° or 60°, static color temperature options from 2700K to 4000K, and a CRI of 80+ or 90+, this damp location-rated fixture supports an optional 90-minute emergency battery backup.
  • Manufacturer
    Alcon Lighting
  • Model
    12343-8-P
  • Lumen output
    4176 lm, 4408 lm, 4524 lm, 4640 lm, 4930 lm, 5220 lm, 5394 lm, 5510 lm
  • Lead Time
    Ships in: 3-7 Business Days
  • Return Policy
    Built to order. Restocking fees apply.
  • Qualifications
    Spec Grade, cULus, Damp Location
  • Features
    Wattage Selectable Switch, Emergency Backup Battery
  • Dimming
    0-10V
  • Voltage
    120-277V
  • Finish
    White, Black
  • CCT
    2700K, 3000K, 3500K, 4000K
  • CRI
    90+, 80+
  • Mounting
    Pendant, Pendant Aircraft Cable , Pendant Stem
  • Light Direction
    Direct Downlight
  • Shape
    Cylinder
  • Height
    7.68"
  • Diameter
    4.14"
  • Beam Spread
    15º, 24° , 60°
  • Wattage per ft
    30 W/ft, 45 W/ft, 58 W/ft
