Model 12300-3-SG

3-Head Multiple LED Snoot Gimbal Light

By Alcon Lighting
$1,159.95

Built to order

, ships-in: 3-4 weeks
Spec Grade cULus ETL cETLus Damp Location Made in USA RoHS Compliant
loader
Loading...

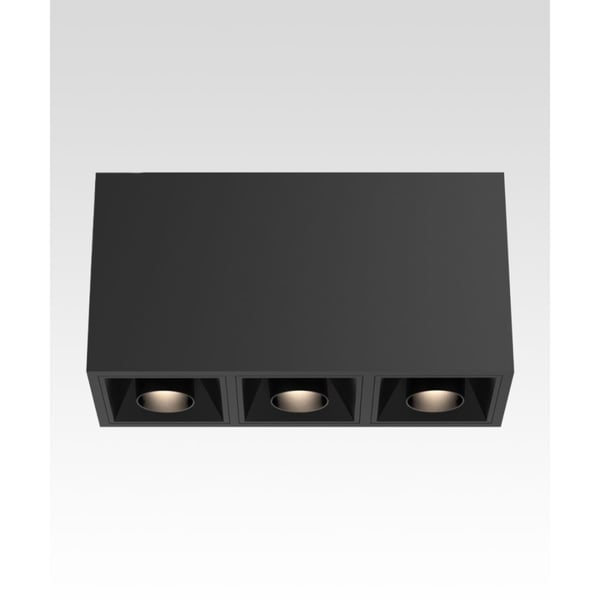

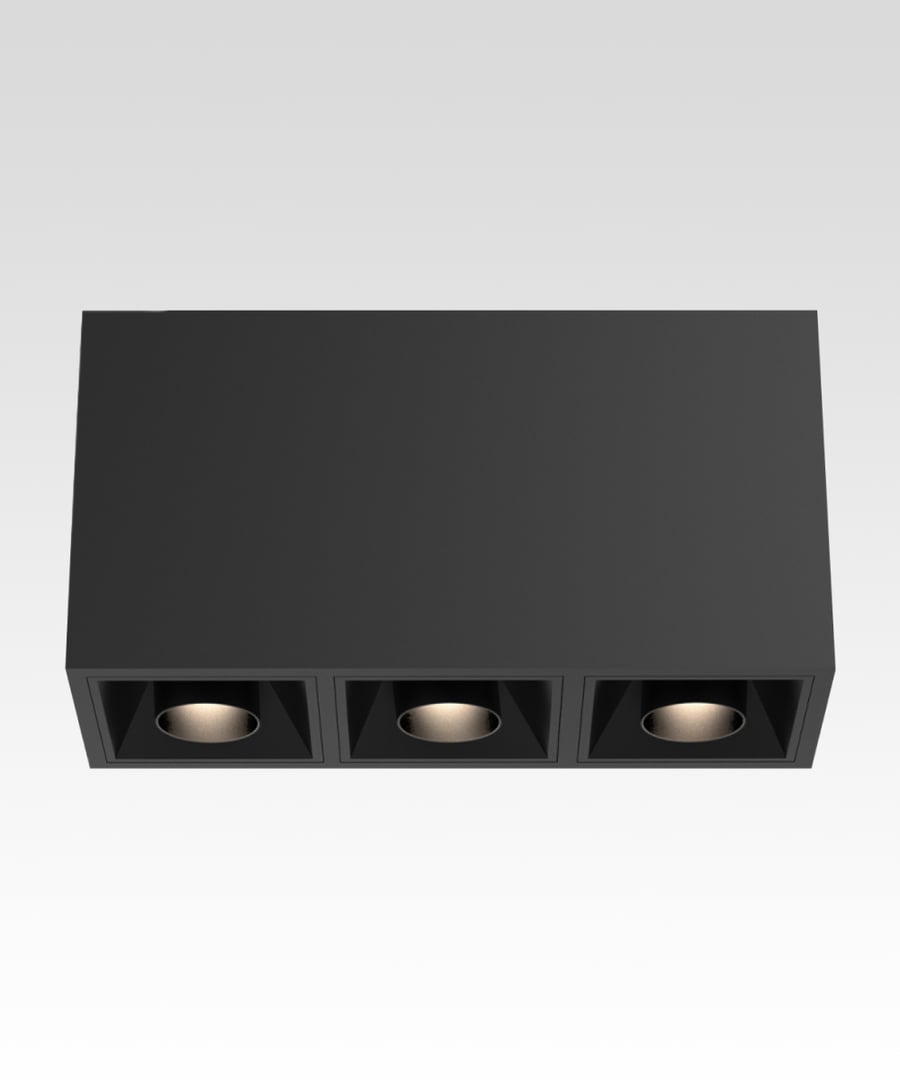

This 3-head snoot gimbal LED ceiling light delivers sculpted illumination with reduced glare. Each 20° snooted aperture is independently adjustable and housed in a low-profile rectangular body that installs to a standard octagon box. Available in black, white or custom RAL finishes, the LED ceiling light provides up to 1,935 lumens at 15 watts and supports 30-watt or 45-watt configurations. Reflectors (15° to 50°), diffusers and dim-to-warm color tuning are available, with TRIAC, ELV and 0-10V dimming for a truly customized lighting experience. Damp-rated and designed to deliver superior color accuracy in refined spaces.
  • Manufacturer
    Alcon Lighting
  • Model
    12300-3-SG
  • Lumen output
    1110 lm, 1485 lm, 1935 lm
  • Lead Time
    Ships-in: 3-4 Weeks
  • Return Policy
    Built to order. Restocking fees apply.
  • Qualifications
    Spec Grade, cULus, ETL, cETLus, Damp Location, Made in USA, LM79 Tested, LM80 Tested, RoHS Compliant
  • Dimming
    0-10V, ELV, TRIAC
  • Voltage
    120-277V
  • Finish
    White, Black
  • CCT
    2700K, 3000K, 3500K, 4000K
  • CRI
    90+
  • Mounting
    Surface
  • Light Direction
    Direct Downlight
  • Shape
    Square
  • Beam Spread
    15º, 24° , 38°, 50°, Narrow Spot, Spot, Wide Flood
