Model 12300-3-S

3-Head Multiple LED Spot Light

By Alcon Lighting
$1,479.95

Built to order

, ships in: 3-7 business days
Spec Grade cULus ETL cETLus Damp Location Made in USA RoHS Compliant
loader
Loading...

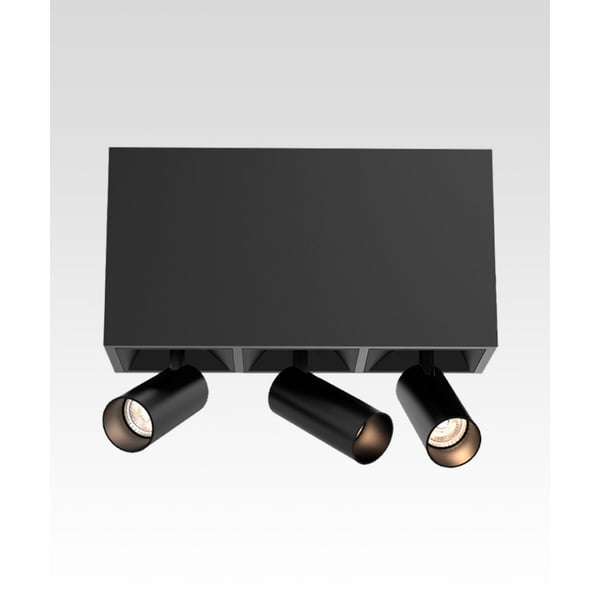

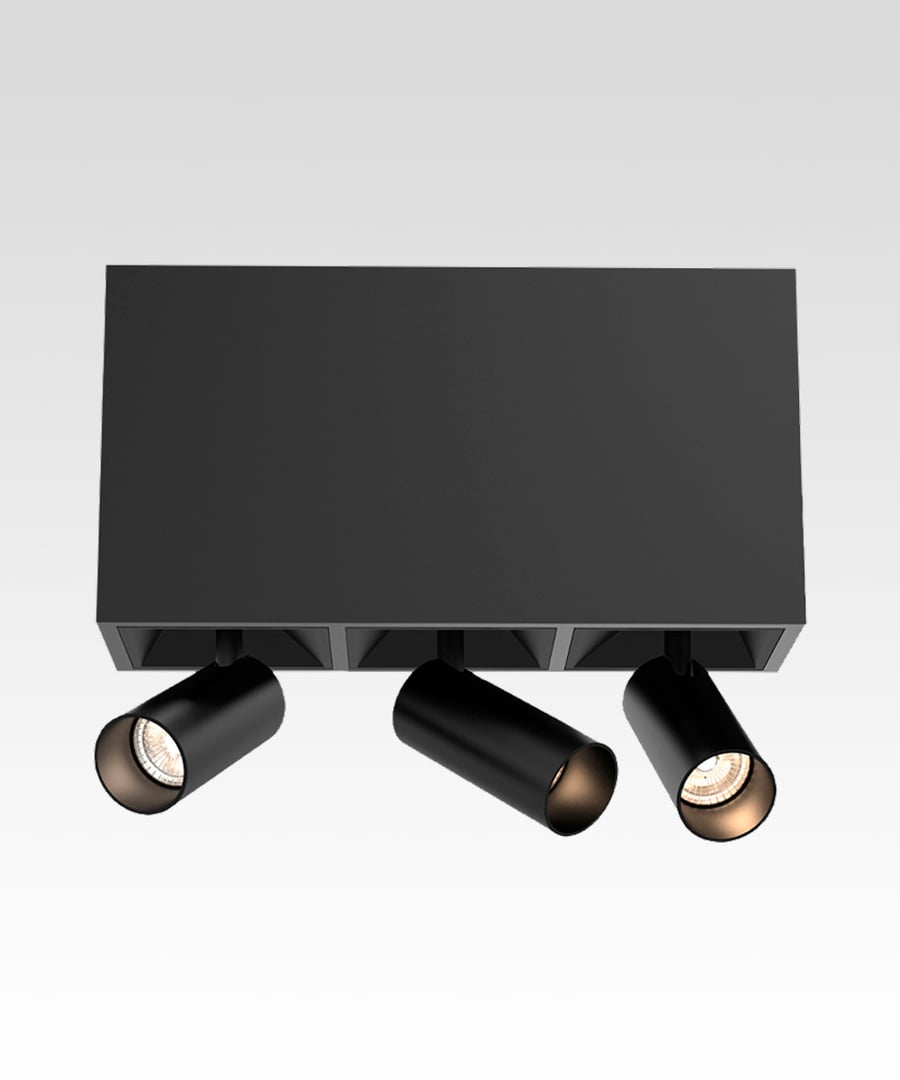

This triple LED spot light offers precise directional illumination from three independently adjustable 90° tilt apertures with narrow 15° beam spreads, delivering up to 2,490 lumens at 45W from high-efficiency COB modules. Designed for architectural accent lighting, it features a durable 18-gauge powder-coated steel body with aluminum trim in black, white, or custom finishes and mounts over a standard octagon box. Operating at 120V–277V with a minimum temperature of -30°C, the fixture integrates three constant-current ERP drivers (15W, 350mA), quick-connect light modules, and supports static 3000K or 4000K color temperatures with TRIAC, ELV, and 0–10V dimming. Damp location rated with 90+ CRI and 70% lumen maintenance at 50,000 hours, it’s ideal for highlighting artwork and architectural details in refined interiors.
  • Manufacturer
    Alcon Lighting
  • Model
    12300-3-S
  • Lumen output
    2490 lm
  • Lead Time
    Ships in: 3-7 Business Days
  • Return Policy
    Built to order. Restocking fees apply.
  • Qualifications
    Spec Grade, cULus, ETL, cETLus, Damp Location, Made in USA, LM79 Tested, LM80 Tested, RoHS Compliant
  • Dimming
    0-10V, ELV, TRIAC
  • Voltage
    120-277V
  • Finish
    White, Black
  • CCT
    3000K, 4000K
  • CRI
    90+
  • Mounting
    Surface
  • Light Direction
    Direct Downlight
  • Shape
    Square
  • Beam Spread
    15º
