Model 12300-3-G
, ships in: 3-7 business days

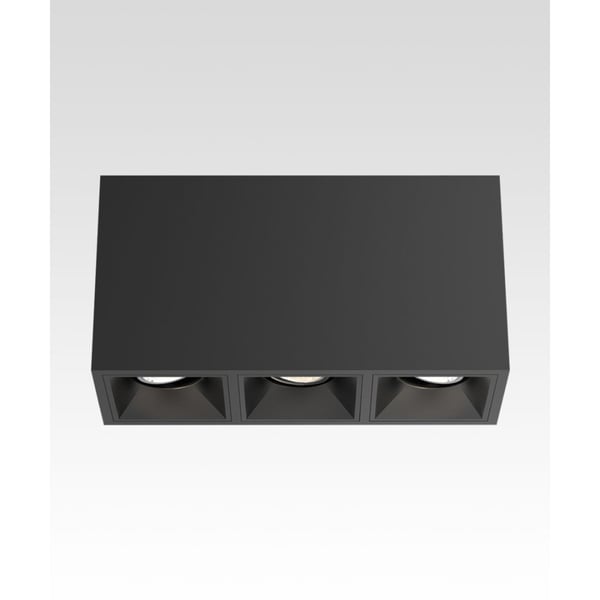

3-Head Multiple LED Gimbal Ceiling Light
By Alcon Lighting
$1,159.95
Built to order
Loading...
This triple LED gimbal ceiling light features three independently adjustable 20° directional beams from 2″ apertures within a surface-mounted rectangular housing. Constructed from durable 18-gauge powder-coated steel and aluminum, with standard white or black finishes and custom options available, it offers precision illumination for commercial and residential settings. Delivering up to 4,080 lumens at 15W non-IC and supporting multiple outputs (10W IC, 10H IC), this fixture includes high-efficiency COB modules, field-changeable reflectors (Narrow 15°, Medium 24°, Wide 38°, Flood 50°), and diffusers (Clear, Linear Spread, Frosted, Solite, Honeycomb Louvre). Operating on 120V–277V with TRIAC, ELV, and 0–10V dimming, and boasting a CRI of 90+, quick-connect light modules, and lumen maintenance of 70% at 50,000 hours, it mounts over a standard octagon box and provides flexible beam control in both static and Dim to Warm CCT options (2700K–4000K).
-
ManufacturerAlcon Lighting
-
Model12300-3-G
-
Lumen output2280 lm, 3075 lm, 4080 lm
-
Lead TimeShips in: 3-7 Business Days
-
Return PolicyBuilt to order. Restocking fees apply.
-
QualificationsSpec Grade, cULus, ETL, cETLus, Damp Location, Made in USA, LM79 Tested, LM80 Tested, RoHS Compliant
-
Dimming0-10V, ELV, TRIAC
-
Voltage120-277V
-
FinishWhite, Black
-
CCT2700K, 3000K, 3500K, 4000K
-
CRI90+
-
MountingSurface
-
Light DirectionDirect Downlight
-
ShapeSquare
-
Beam Spread15º, 24° , 38°, 50°, Narrow Spot, Spot, Wide Flood
