Model 12300-1-G

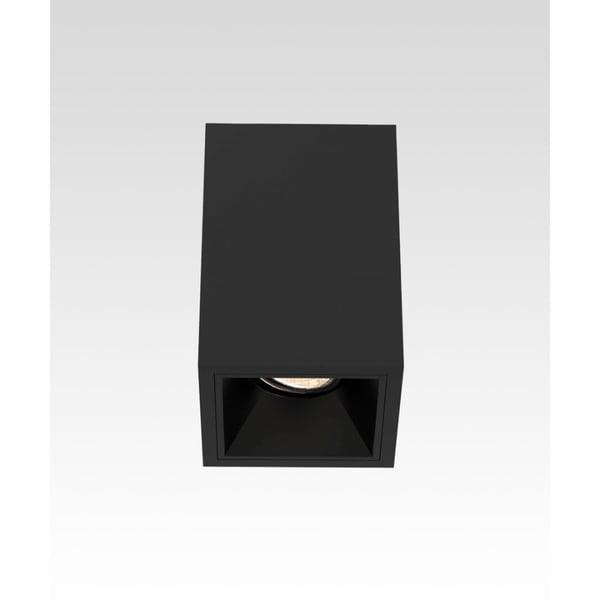

4-Inch Adjustable Gimbal LED Square Ceiling Light

By Alcon Lighting
$389.95

Built to order

, ships in: 3-7 business days
Spec Grade cULus ETL cETLus Damp Location Made in USA RoHS Compliant
loader
Loading...
The Alcon Lighting 4-Inch Adjustable Gimbal LED Square Ceiling Light is a surface-mounted architectural fixture designed for commercial, residential, retail, and hospitality applications. Featuring a 2" light aperture, 4 1/4" square housing, and a 20° adjustable gimbal, it delivers directional lighting with up to 760, 1025, or 1360 lumens depending on the selected 10W IC, 10H IC, or 15W non-IC configuration. Available in black or white powder-coated finishes, this high-CRI (90+) LED light supports multiple CCT and reflector options, and dimming via TRIAC, ELV, or 0–10V. Built for long-term performance with a 50,000-hour lifespan, it mounts over a standard octagon box, is ETL/cETL listed, RoHS compliant, and made in the USA.
  • Manufacturer
    Alcon Lighting
  • Model
    12300-1-G
  • Lumen output
    760 lm, 1100 lm, 1360 lm
  • Lead Time
    Ships in: 3-7 Business Days
  • Return Policy
    Built to order. Restocking fees apply.
  • Qualifications
    Spec Grade, cULus, ETL, cETLus, Damp Location, Made in USA, LM79 Tested, LM80 Tested, RoHS Compliant
  • Dimming
    0-10V, ELV, TRIAC
  • Voltage
    120-277V
  • Finish
    White, Black
  • CCT
    2700K, 3000K, 3500K, 4000K, Warm Dimming
  • CRI
    90+
  • Mounting
    Surface
  • Light Direction
    Direct Downlight
  • Shape
    Square
  • Beam Spread
    15º, 24° , 38°, 50°, Narrow Spot, Spot, Wide Flood
